| Categories | Grinding Machine |
|---|---|
| Brand Name: | Matsumoto |

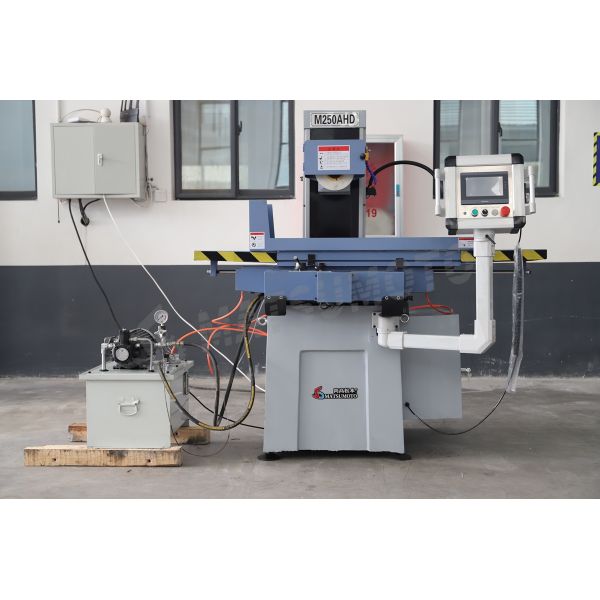

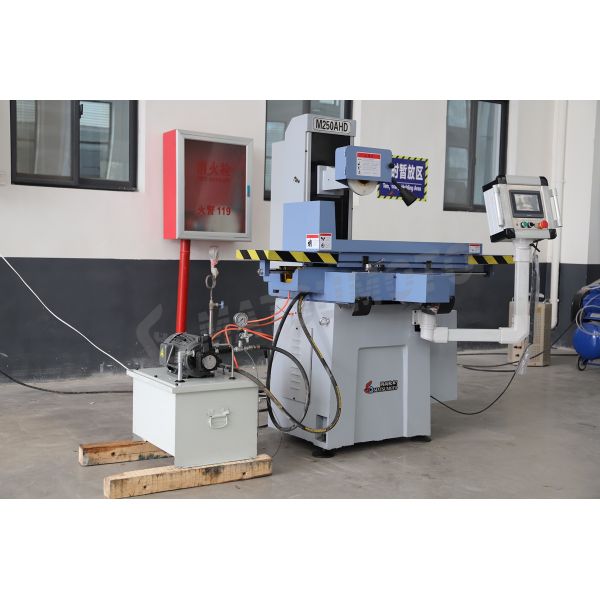

| Model Number: | M250AHD |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $5800-6900 |
| Payment Terms: | T/T |
| Delivery Time: | 20 working days |
| Packaging Details: | plywood case |
| Worktable size(L*W): | 500*250mm |
| Table max cutting area(L*W*H): | 580*260*380mm |
| Number of T-Slot: | 1*14 |
| Distance from Table Surface To Spindle Center: | 470mm |
| Wheel Size(dia * width* bore): | Φ200*20*φ31.75mm |
| Spindle motor: | 1.5kw |
| Company Info. |
| Shandong Matsumoto Machine Tool Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | Unit | M250AHD | ||
Bench | Worktable size(L*W) | mm | 500*250 | |
Max travel of table(L*W) | mm | 550*250 | ||
Table max cutting area(L*W*H) | mm | 580*260*380 | ||
Number of T-Slot | mm | 1*14 | ||
Grinding head | Distance from Table Surface To Spindle Center | mm | 470 | |
Wheel Size(dia * width* bore) | mm | Φ200*20*φ31.75 | ||
Spindle speeds (50HZ) | r/min | 2850 | ||
The amount of feed | Table longitudinal (left and right) speed (stepless) | m/min | 3--23 | |
Table horizontal (before and after) the amount of feed | Continuous (variable speed) | mm/min | 150 | |
Intermittent (stepless) | mm | 0-5 | ||
The handwheel rotatos | mm | 2.5 | ||
Hand wheel each grid | mm | 0.02 | ||
Vertical (up and down) feed | Handwheel rotates | mm | 1.25 | |
Hand wheel each grid | mm | 0.01 | ||
Motor power | Spindle motor | kw | 1.5 | |
Cooling motor | w | 40 | ||
Weight of machine& working precision | The machined surface of the base of parallelism | mm | 300/0.005 | |
Surface Roughness | μm | Ra0.32 | ||
Net weight | kg | 950 | ||
Cross weight | kg | 1000 | ||
Machine size (L*W*H) | mm | 1700*1300*1800 | ||
Details Images:
| ELECTRO MAGNETIC CHUCK Standard with electro magneitc chuck, easy to operate, save much time. It can tighten many parts and even small parts. |
| CONTROL SYSTEM Standard with GSK system, with hand wheel easy to operate. |
| GRINDING HEAD Grinding head moves up and down driven by precision ball screw and servo motor. It can grinding various planes planes and complex forming surfaces. |
|
