Home > Outdoor Sports >

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine

Categories Textile Testing Machine
Brand Name: ZL
Place of Origin: Guangdong, China
MOQ: 1
Speed: 90 ± 1r / min
Friction stroke: 76 ± 2mm
Tension weight: 340g
Load weight: 150g
Dimensions: 550 × 550 × 650mm
Weight: 80kg
Power supply: 220V 50HZ
Test head: 4 groups
Friction table: arc surface r100mm length 400mm
Friction head: bottom rubber indenter 50×50mm arc surface r100mm
Sample tension: 4lbf (17.8N), adjustable
Sample load: 3lbf (13.4N), adjustable
Sample size: 73 × 245mm
Number of samples: 12 pieces, 6 pieces each in warp and weft
Protection class: IP56
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
ASTM D3597 Oscillatory Abrasion Tester | Fabric & Leather Wyzenbeek Testing Machine | SAE J1948 ISO ISO12402 Compliant
Product Overview
The Wyzenbeek abrasion resistance tester measures the abrasion resistance of fabrics against standard friction media or metal mesh surface friction movements. This equipment is particularly suitable for abrasion resistance testing of automotive decoration, furniture textiles, and leather materials.
Compliance Standards
ASTM D4157, ASTM D3597, ISO12402-7, SAE J1948 and related standards
Technical Specifications
ParameterSpecification
Test Head4 groups
Speed90 ± 1r/min
Friction TableArc surface r100mm length 400mm
Friction Stroke76 ± 2mm
Friction HeadBottom rubber indenter 50×50mm arc surface r100mm
Sample Tension4lbf (17.8N), adjustable
Tension Adjustment Weight340g
Sample Load3lbf (13.4N), adjustable
Load Adjustment Weight150g
Sample Size73 × 245mm
Number of Samples12 pieces, 6 pieces each in warp and weft directions
Dimensions550 × 550 × 650mm
WeightApproximately 80kg
Power Supply220V
Standard Accessories
  • 4 rubber blocks
  • Two metal nets
  • 10# 5 pieces of friction cloth
  • 1 power cord
Product Images

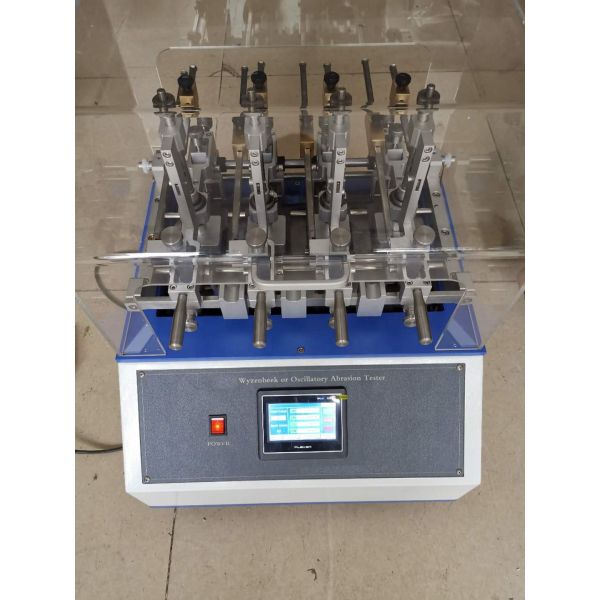

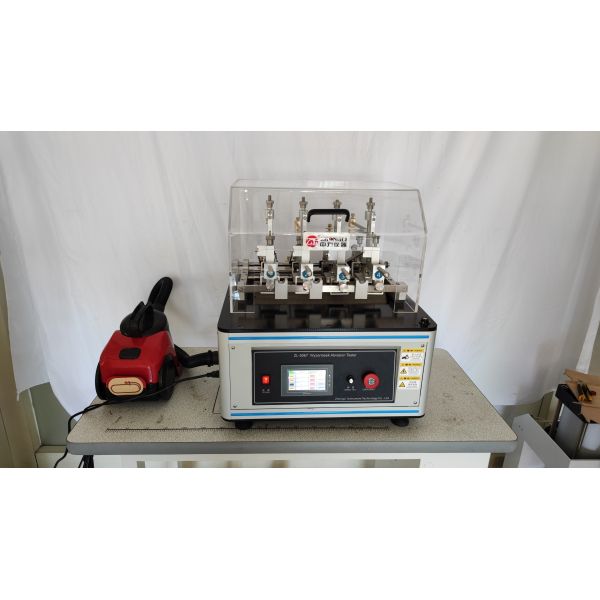

G278 Fabric Oscillatory Abrasion Tester front view G278 Fabric Oscillatory Abrasion Tester side view G278 Fabric Oscillatory Abrasion Tester close-up detail G278 Fabric Oscillatory Abrasion Tester control panel G278 Fabric Oscillatory Abrasion Tester testing mechanism
