Unmanned CNC Vertical Ring Rolling Machine with Robotic Arm Integration for One-Time Rolling Forming

Categories Vertical Ring Rolling Machine
Brand Name: Duolek
Model Number: D51K
Place Of Origin: China
MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Payment Terms: L/C,T/T
Delivery Time: 45-75 Working Days
Packaging Details: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Name: D51K CNC Vertical Ring Rolling Machine
Forging automation: compatible with robotic arms
Automation: Automatic loading, rolling, and unloading
Rolling materials: Capable of rolling various metal materials
Advantage: One-time rolling forming

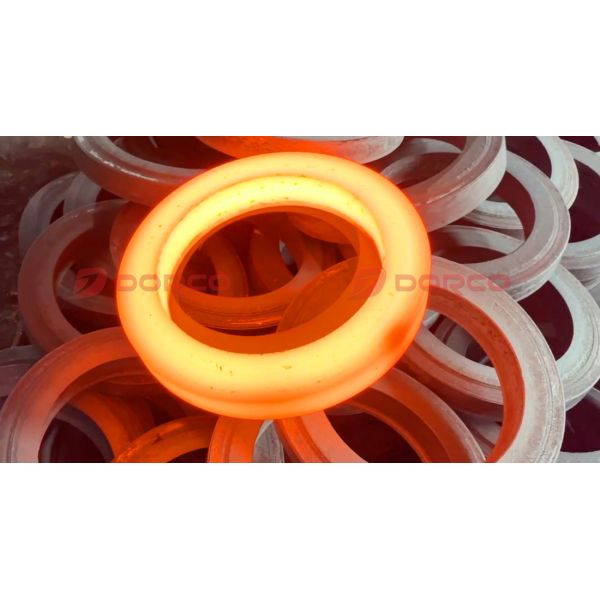

Application scope: Bearing rings, flanges, gear rings, etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Unmanned CNC Vertical Ring Rolling Machine with Robotic Arm Integration for One-Time Rolling Forming

Unmanned Vertical Ring Rolling Machine Robot Automatically Loads / Unloads / Transports Materials
Our D51K series CNC vertical ring rolling machine is a mature model that has become the preferred ring processing equipment for many industry customers due to its excellent automation capability, precise control performance, and reliable process guarantee.
Advanced Features

Automated production: supports seamless integration with robotic arms to achieve automatic loading and unloading, significantly increasing production capacity.
Numerical Control Precision: The high-precision system is equipped with a simple interface, with fast parameter setting and precise and stable execution.
Efficient cycle: Optimize the process to ensure close collaboration among all links, continuous operation, and rapid response to market demand.
Double protection: The speed control system is adaptable to multiple varieties, with intelligent lubrication for real-time protection and extended lifespan.
Energy saving process: Unique rolling reduces energy consumption, prevents cracks, reduces excess, and improves utilization.
Excellent performance: The special process optimizes the organization, significantly improving strength, hardness, and fatigue resistance.
Full cycle support: from selection to maintenance, establish exclusive files, and continuously provide technical upgrade suggestions.

Technical Specifications
Model160250350450550630800100012001300
DRC-D51K(H)160250350450550630800100012001300
DRC-D51K(P)160250350///////
Nominal outer diameter (mm)160250350450550630800100012001300
Rolling outer diameter range (mm)55-16080-250180-350250-500350-600380-630400-800500-1000600-1200600-1300
Ring rolling height (mm)40130160230230260260260260260
Radial rolling force (KN)50150300500550700800800800800
Linear rolling speed (m/s)2.51.81.51.51.31.31.31.31.31.3
Cylinder stroke (mm)50100110130150150200250250350
Note: 1. K (H): Main transmission uses hydraulic device. 2. K (P): Main transmission uses pneumatic device.
Industrial Applications
Widely used in traditional industries such as mechanical manufacturing, automotive parts, and power equipment, as well as high-precision fields such as new energy and semiconductors.
Fully Automatic CNC Vertical Ring Rolling Machine in operation
Close-up view of CNC Vertical Ring Rolling Machine components
