KC Rechargeable 601040 200mAh 3.7V Lithium Polymer Battery for Digital Camera MSDS

KC Rechargeable 601040 200mAh 3.7V Lithium Polymer Battery Cell
High-performance lithium polymer battery with comprehensive safety certifications and reliable power delivery for digital cameras and various applications.
Technical Specifications
Mechanical Characteristics
ParameterSpecification
Cell601040
PCMYes
NTCNo
WeightApprox. 5.6g
Configuration1S1P
Dimensions6*10*42mm (MAX)
Electrical Specification
ParameterSpecification
Capacity200mAh
Nominal Voltage3.7V
Energy0.74Wh
Internal Impedance< 240 mΩ
Max. Charge Voltage4.2V
Discharge Cut Off2.75V
Max. Charge Current200mA
Max. Discharge Current200mA
Standard Charge Current100mA
Standard Discharge Current100mA
Charge Temp. Range0℃ to 45℃
Discharge Temp. Range-20℃ to 60℃
Storage & Cycle Life
Storage ConditionCycle Life Performance
1 year at -20℃ to +30℃100 cycles ≥92%
3 months at -20℃ to +45℃300 cycles ≥88%
1 month at -20℃ to +60℃500 cycles ≥80%
Cell Protection Features
Protection TypeSpecification
Overcharge Detection4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over Discharge Detection2.5V ±50mV (115 to 175msec delay, release 3.0V ±50mV)
Overcurrent Detection2.5A to 4.0A (9 to 15msec delay)
Short ProtectionYes
Certified Battery Models
Additional KC-certified lithium polymer battery models available for the Korean market:
ModelVoltageCapacityCertificates
2529403.7V260mAhUL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
3013183.7V50mAhKC/CB/UN38.3/MSDS
3015253.7V80mAhCB/KC/UN38.3
3025403.7V280mAhKC/CE/FCC/ROHS/UN38.3/MSDS
3030303.7V250mAhUL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
3034503.7V500mAhKC/CE/80℃ high temperature report/CQC
Many more models available with comprehensive certifications.
Product Images

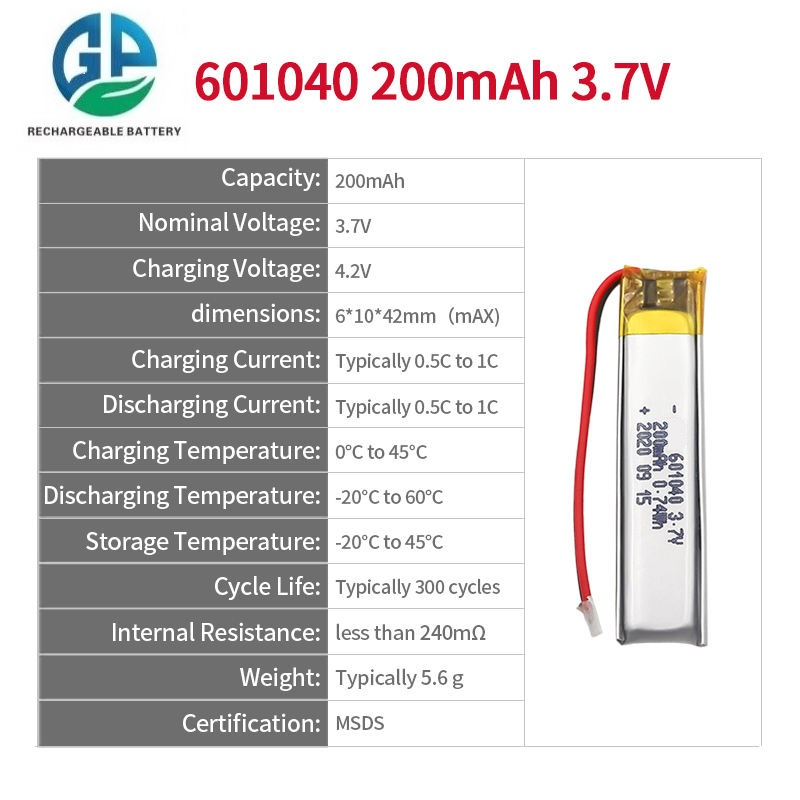

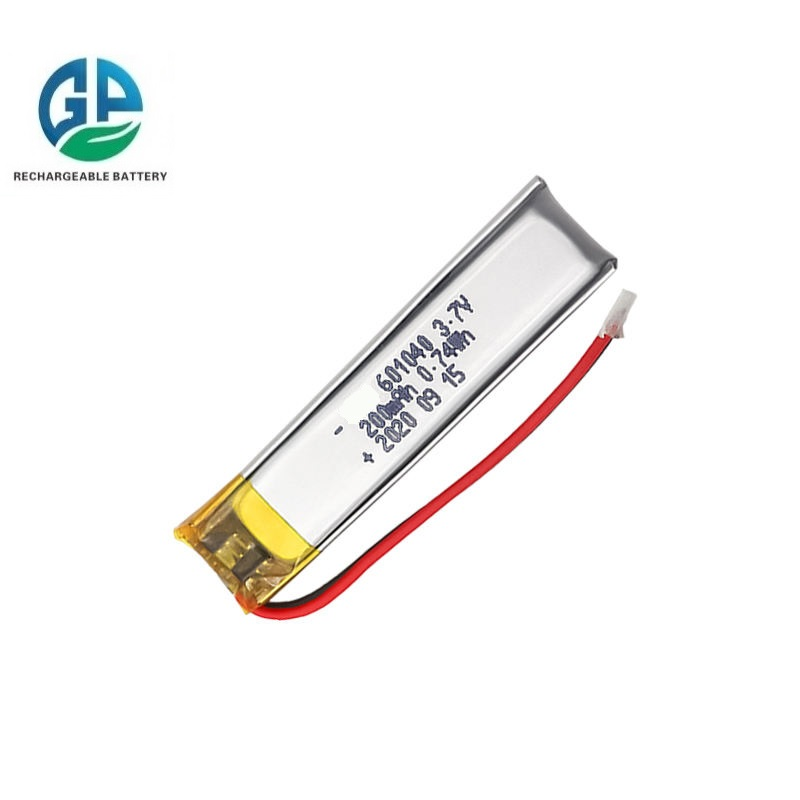

KC 601040 lithium polymer battery cell front view KC 601040 lithium polymer battery cell side view KC 601040 lithium polymer battery cell technical specifications
Standard Packaging
Standard packaging for 3.7V and 7.4V lithium ion polymer battery packs
Why Choose Our Batteries
Advanced Technology
  • All-weather applicability (-30℃ to 60℃)
  • Highly safe battery design with advanced electrolyte and separator technology
  • Full coverage of battery varieties including lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, and primary batteries
Research & Development
Experienced R&D team with over 60 engineers and advanced equipment to support OEM and ODM requirements.
Battery research and development laboratory with advanced equipment
Quality Certifications
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Quality certificates including CE, RoHS, KC, UL and other international standards
Manufacturing Excellence
Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China with extensive experience since 2001, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs.
Shenzhen Gold Power Energy factory tour showing manufacturing facilities
Dimensions
5.0 * 12 * 30mm
