Robust R Series Three Stage Reduction Helical Gear Reducer with High Transmission Efficiency and Hardened Gear for Engineering Machinery

Robust R Series Helical Three Stage Reduction Gearbox
Engineered for demanding applications in engineering and building materials machinery, the R Series helical gear reducer delivers exceptional performance and reliability.
Product Overview
The R series helical gear hardened gear reducer features serialized and modular design concepts with precisely graded transmission ratios. This advanced gearbox offers high transmission efficiency, low energy consumption, superior performance characteristics, and broad application adaptability.
  • Multiple motor combinations and mounting positions available
  • Flexible structural solutions tailored to specific requirements
  • Customizable speed options and structural configurations
  • All transmission gears feature high-frequency heat treatment
  • Enhanced gear hardness and abrasion resistance
  • Meets international technical standards for comparable products
Technical Specifications
specificationR17R27R37R47R57R67R77
Input power(KW)0.12-0.750.12-30.12-30.12-5.50.12-7.50.12-7.50.18-11
Gear ratio3.83-81.643.37-1353.83-134.83.83-1774.39-1874.29-199.85.31-195.2
Maximum torque(N·m)87128196305440595705

specificationR87R97R107R137R147R167
Input power(KW)0.55-220.55-302.2-455.5-5511-9011-160
Gear ratio5.3-246.544.5-289-745.04-251.175.15-223.65-163.315-229.71
Maximum torque(N·m)13102110438079101270017700

specificationRX37RX57RX67RX77RX87RX97RX107
Input power(KW)0.12-1.10.12-5.50.12-7.51.1-113-225.5-305.5-45
Gear ratio1.62-4.431.3-5.51.4-6.071.42-5.631.39-6.451.42-5.791.44-6.63
Maximum torque(N·m)2071120215395600810
Application Industries
The R series gear reducers are extensively utilized across multiple industrial sectors including:
  • Light industry and food processing
  • Beverage and brewery equipment
  • Chemical processing plants
  • Escalators and automated warehousing systems
  • Building materials machinery
  • Steel metallurgy and environmental protection
  • Power generation and coal mining
  • Paper manufacturing and automotive
  • Port and airport machinery
  • Tobacco processing equipment
Product Details

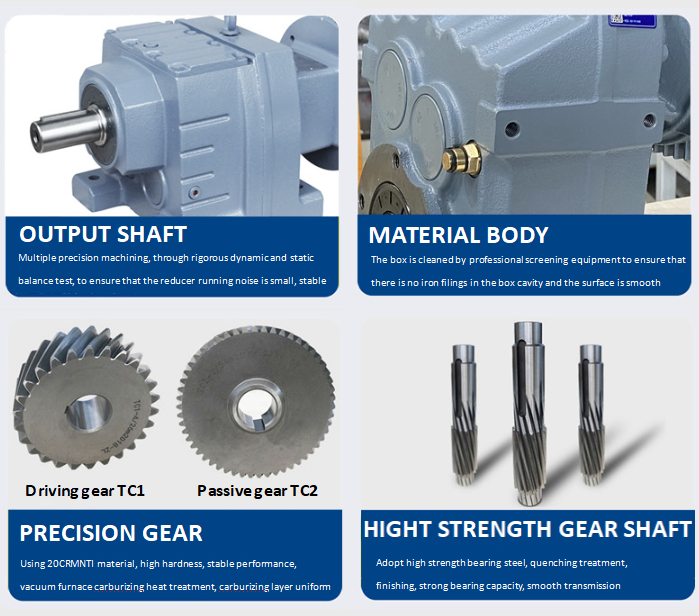

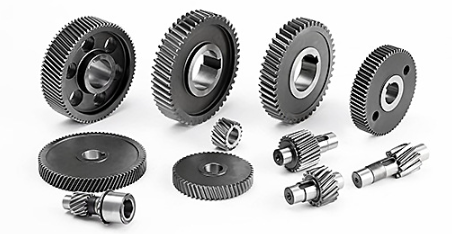

R Series Gearbox Internal Gear Mechanism R Series Reducer Mounting Configuration R Series Gearbox Housing Design R Series Gear Reducer Assembly R Series Gearbox Component Details R Series Reducer Installation Example R Series Gearbox Performance Features R Series Industrial Application R Series Gear Reducer Technical Diagram
Gear unit weight
SizeR17R27R37R47R57R67R77R87R97R107R137R147R167
Weight (kg)45.58.51018253663101153220400700



Input power rating and permissible torque

Size172737475767778797107137147167
StructureR / RF
Input power rating (kW)0.18~0.750.18~30.18~30.18~5.50.18~7.50.18~7.50.18~110.55~220.55~302.2~455.5~5511~9011~160
Ratio3.83~74.843.37~135.093.33~134.823.83~176.884.39~186.894.29~199.815.21~195.245.36~246.544.49~289.745.06~249.165.15~222.605.00~163.3110.24~229.71
Permissible torque (N.m)8513020030045060082015503000430080001300018000

Size375767778797107127157



StructurRX / RXF



Input power rating (kW)0.18~1.10.18~5.50.18~7.51.1~113~225.5~307.5~457.5~9011~132



Ratio1.62~4.431.3~5.51.4~6.071.42~8.001.39~8.651.42~8.231.44~6.631.51~6.21.57~6.2



Permissible torque (N.m)207013521540060083011101680
