24 Cores Control Cable PVC Insulation Steel Tape Armoured Flexible Control Cable

APPLICATION

24 Cores Control Cable PVC Insulation Steel Tape Armoured Flexible Control Cable‌ is widely used in industrial automation, power systems, and machinery control. It features 24 cores for multi-signal transmission, PVC insulation for durability, steel tape armor for mechanical protection, and flexibility for easy installation. Ideal for harsh environments, it ensures reliable performance in control circuits, monitoring systems, and automation equipment.

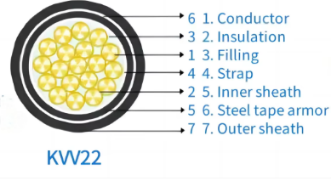

CONSTRUCTION

• Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)

• Insulation:Polyvinyl chloride (PVC)

• Filler:Polypropylene(PP) mesh filling rope

• Armouring:Galvanized steel tape

• Outer sheath:Polyvinyl chloride (PVC)

CHARACTERISTIC

• Voltage Rating Uo/U: 450/750V
• Temperature Rating
• Maximum operating temperature of conductor:+70℃
• Operating ambient temperature: -15℃~+45℃
• Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
• Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)

SPECIFICATION

Contact us for more details
