| Categories | Rubber Refining Mill |
|---|---|
| Brand Name: | junlin |
| Model Number: | XKJ-450 |
| Certification: | Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate,etc. |
| Place of Origin: | Qingdao, Shandong, China |
| MOQ: | 1 |
| Price: | USD3,000–13,000/Set |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 500/year |
| Delivery Time: | 30–90 days |
| Packaging Details: | wooden case |
| Type: | Rubber Refining Mill |
| Power Supply: | 380V/50Hz |
| Production capacity: | 360 kg/h |
| Motor power: | 55 kw |
| Weight: | about 12800 kg |
| Specification: | Customized |
| Company Info. |
| Qingdao Junlin Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Type | XKJ-400 | XKJ-450 | XKJ-480 |
|---|---|---|---|
| Working diameter of rolls(mm) | φ400 front roller, φ480 rear roller | φ450 front roller, φ510 rear roller | φ480 front roller, φ610 rear roller |
| Roll casting process | Centrifugal composite casting | ||
| Roll cooling mode | Around the borehole cooling | ||
| The surface of the roll material | High nickel chromium molybdenum alloy | ||
| Working length of the roll(mm) | 650 | 800/1000 | 800/1000/1200 |
| After the roller line speed(m/min) | 32.94 (optional) | 49/55.2/63.4 (optional) | 57.5-75.1 (optional) |
| Front and rear roller line speed ratio | 1.27-1.815 (optional) | 1.38/1.82/2 (optional) | 1.27-1.815 (optional) |
| Production capacity(kg/h) | 300 | 360 | 500-800 |
| Motor power(kw) | 55 | 55 | 75/90 |
| Roller spacing adjustment range(mm) | 0.1-15 | ||
| Reducer | ZSY hard-tooth face gear | ||
| Bearing type | The double spherical roller bearing | ||
| Dimensions of LxWxH(mm) | 4750x2300x1835 | 4060x2200x1470 | 5070x2800x1978 |
| Quality(kg) | about 10500 | about 12800 | about 20000 |

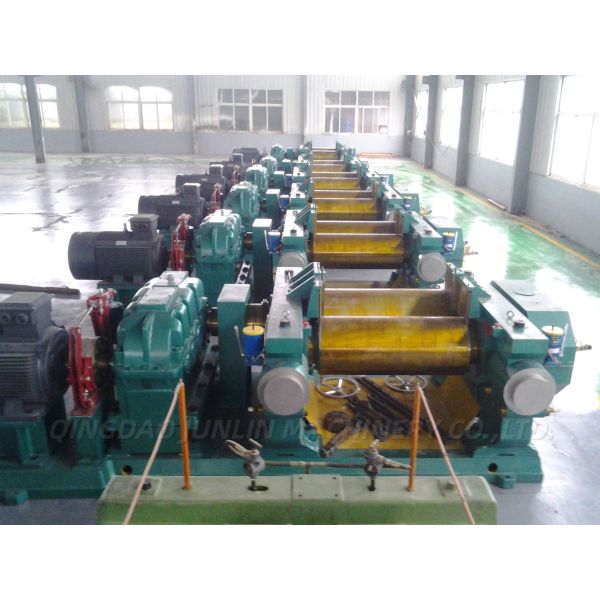

Deployed in reclaimed rubber plants and related rubber industries.
Engineered to remove impurities from reclaimed rubber and form refined rubber into sheets.
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Serving key sectors:
Dedicated to sustainable development initiatives including waste tire recycling.
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
|
