Industrial PC Touch Monitor: Custom Mold Craftsmanship for
Industrial-Grade Precision Structure
This industrial computer is custom-built using aluminum alloy and
proprietary mold technology. From the mold to the casing,
everything is meticulously designed by the engineering team,
resulting in a tight structure, higher precision, and effectively
improved installation compatibility and structural stability.
The chassis utilizes selected high-quality panels, undergoing
multiple treatments and reinforcements, enabling the unit to excel
in pressure resistance, corrosion resistance, and anti-static
performance, easily handling complex industrial environments with
high dust, high humidity, and high interference.
Industrial PC Touch Monitor: Outstanding Performance, Stable
Protection
The core configuration features an industrial-grade
high-performance motherboard, supporting Intel low-power processor
series. Processor and memory capacity can be customized based on
project requirements, ensuring stable 7x24 operation without
issues.
The internal circuit layout is scientific, incorporating multiple
electromagnetic shielding designs and added EMI/EMC electromagnetic
immunity components. It possesses stronger electromagnetic
oxidation resistance and anti-interference performance, complies
with industrial EMC protection standards, and ensures long-term
stable operation of the equipment.
Supports various common industrial interfaces, including USB, HDMI,
VGA, COM serial ports, LAN ports, etc., while reserving expansion
interfaces like GPIO to meet the diverse access needs of industrial
automation, instrumentation, machine vision, and other scenarios.
Flexible Embedded Structure, Adapts to Multiple System Platforms
The embedded design facilitates equipment integration and can be
widely used in industrial all-in-one computers, control terminals,
self-service equipment, CNC machine tools, and other systems. Its
compact structural design saves installation space and supports
multiple installation methods such as horizontal/vertical
embedding, wall-mounting, or bracket mounting, significantly
improving deployment flexibility.
| Capacitive Touch System All-in-One Computer Linux Size 32 Inch |
| LCD Panel Parameters | Screen Size | 32 Inch |
| Display Area | 698 mm.(Height) X 391.8(Width)mm. |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 |
| Display Color | 8 Bit + FRC Color 1.07G |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) |
| Response Time | 8ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor |
| Touch Points | 10 Points |
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission | >85% (Higher light transmission depends on glass coating
technology For example AR/AG) >85% |
| Response Speed | < 6ms |
| Touch Accuracy | More than 90% of the touch area ±2 mm |
| Touch Method | Inch Stylus |
| Output Format | Coordinate Output |
| Click Time | Unlimited |
| Smallest Touch Size | 5 mm |
| Long-lasting Durability | Yes, Available |
| Touch Interface | USB |
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH |
Internal computer configuration
(Choose one of two) | CPU | i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can
reach up to 2.7GHz | I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can
reach up to 3.2GHz |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 |
| RAM | 4GB | 8GB |
| Storage Memory Capacity | 128GB | 256GB |
| OS | Linux | LInux |
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated |
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio Format | MP3, WMA |
| Photo Format | BMP, JPEG, PNG, GIF etc. |
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet |
| HDMI | 1 |
| USB | 4 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 60 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |

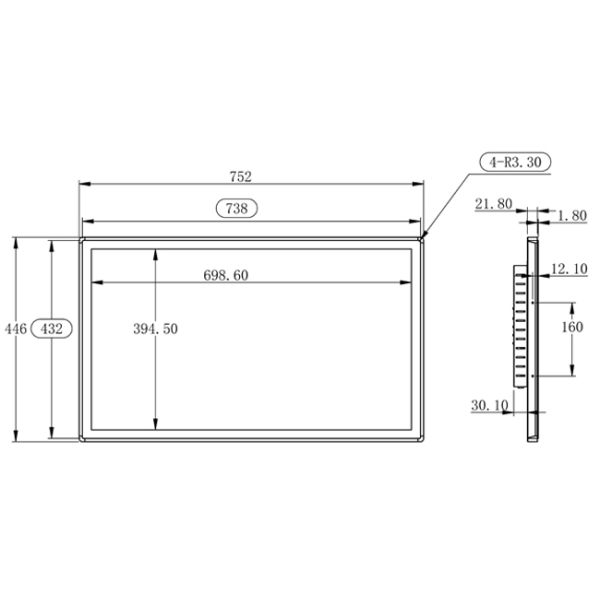

| Package Size | Device Dimensions | 752 X 446 X 53.7 mm. |
| Net Weight | 13 Kilogram |
| Package Size | 82.3 X 52.5 X 12 Centimeter |
| Gross Package Weight per Unit | 15 Kilogram |
