High Accuracy 0.01mm DC5V 1mm Stroke Contact Ball Plunger Sensor Limit Switches for Industry High Precision Measurement ZTSBM10

High Accuracy 0.01mm DC5V 1mm Stroke Contact Ball Plunger Sensor Limit Switches for Industry High Precision Measurement ZTSBM10

High Accuracy 0.01mm DC5V 1mm Stroke Contact Ball Plunger Sensor Limit Switches for Industry High Precision Measurement ZTSBM10
High Accuracy 0.01mm DC5V 1mm Stroke Contact Ball Plunger Sensor Limit Switches for Industry High Precision Measurement ZTSBM10
Categories Contact Sensors
Price: $13-17 / piece
machinery test report: Not Available
Place of Origin: Guangdong, China
Machine Type: Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
warranty: 1 Year
Marketing Type: Ordinary Product
Applicable Industries: CNC machining center
video outgoing-inspection: Provided
weight (kg): 0.2
Showroom Location: None
Condition: New
MOQ: 1 piece
Brand Name: OEM/ODM
Core Components: SUS303,Ball Material SUS
Contact Now
Company Info.
Shenzhen Muye Precision Control Electromechanical Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

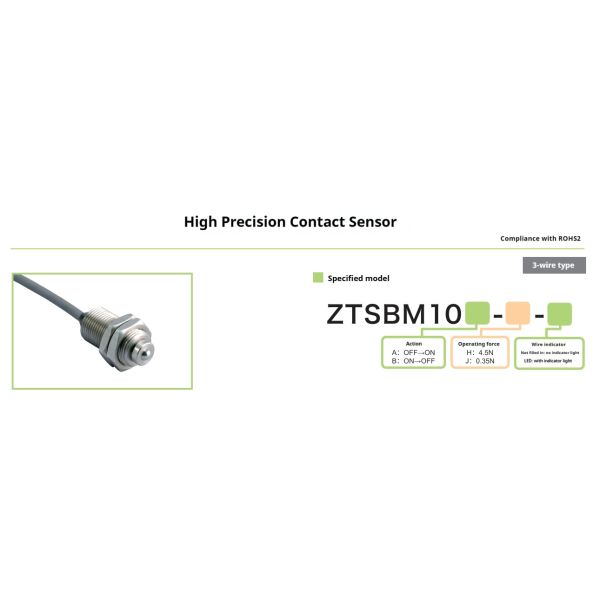

High Accuracy 0.01mm DC5V 1mm Stroke Contact Ball Plunger Sensor Limit Switches for Industry High Precision Measurement ZTSBM10

Products Description

Key Features

Makinopc specializes in providing high precision force transducers with high accuracy, stable performance, strong resistance to lateral force, support for customization, widely used in various types of testing machines, test equipment, industrial field force measurement system. Spoke type, column type, torque transducer.
Product Paramenters
Supply Voltage
DC5~24V
Stroke
1mm
Operating force
H: 4.5N
J：0.35N
Work point position [PT]
0.3~0.6mm
Differential [MD]
Below 0.1mm
Repeat positioning accuracy
±0.01mm

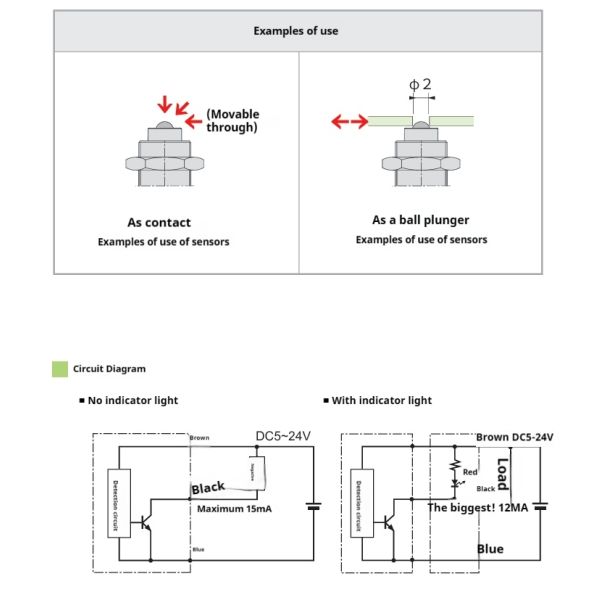

Output method
ZTSBM10(A) :
NPN normally open (ON for proximity)
ZTSBM10(B) :
NPN normally closed (OFF at proximity)
Output current
ZTSBM10: 15mA MAX
ZTSBM10-LED: 12mA MAX
Current consumption
ZTSBM10 : 12mA MAX
ZTSBM10-LED: 15mA MAX
Operating Frequency
Less than 60 times/min
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ2.8×1m
ZTSBM10(A): Gray color
ZTSBM10(B): Black color
Shell nut material
SUS303
Ball Material
SUS

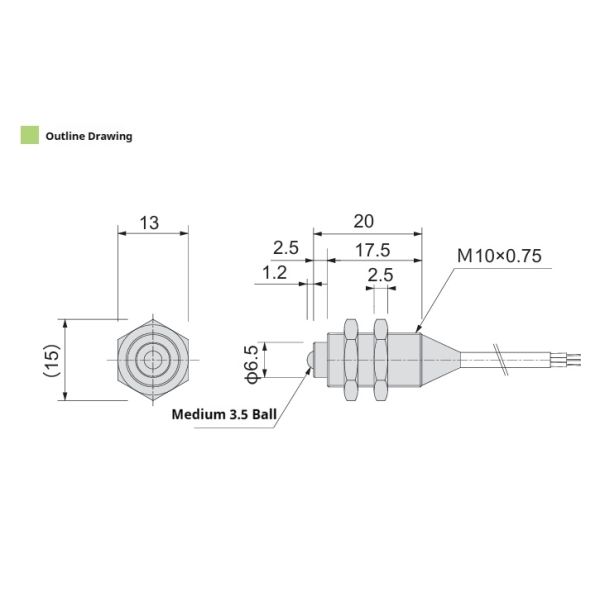

Mounting
M10 nut, tightening torque below 12N-m
Mounting hole processing size
Φ10＋0.5 / 0
Indicator Light
ZTSBM10
None
ZTSBM10-LED
Approx. 100mm from the sensor body
Protection class
IP65
Note: Rugged, well-designed load cells with up to C10 accuracy guarantee highly accurate and reliable data! Used in a wide range of industries where precise measurements are required to avoid product waste and save costs.
Details Images
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
