3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard

3.5 Inch Vertical IPS TFT LCD Display 320×480 MCU/SPI Module For Automotive Dashboard

Product Overview

This 3.5-inch vertical IPS TFT LCD module features a 320×480 resolution and a portrait display layout, delivering clear images and vivid color performance. With MCU and SPI interface support, the module is suitable for automotive dashboards, control panels, and embedded display systems requiring compact vertical-screen solutions. Its IPS technology provides stable color consistency and wide viewing angles for improved visibility.

Performance & Reliability

• 320×480 resolution ensures sharp and detailed image display
• IPS panel technology provides wide viewing angles and accurate color reproduction
• Contrast ratio up to 1000:1(Typ) for enhanced display clarity
• Operating temperature range of -30°C to +85°C supports typical automotive environments
• Stable signal transmission helps maintain consistent display performance

Display Features & Visibility

• Vertical screen design is suitable for compact dashboard layouts and modern UI interfaces
• Brightness options up to 850 cd/m²(Typ) improve readability under strong ambient light
• Normally Black display mode enhances visual depth and display contrast
• Lightweight module structure supports efficient integration into embedded automotive systems

Automotive Applications & Advantages

• Suitable for automotive instrument clusters and dashboard control systems
• Can be used in vehicle multimedia displays and smart control interfaces
• Compact outline size allows flexible installation in limited spaces
• Designed for stable operation in professional automotive display applications

The module also offers low power consumption and maintains stable performance during continuous operation. Its compact IPS display structure makes it suitable for various automotive and industrial embedded systems requiring reliable portrait-screen display solutions.

Product Specifications

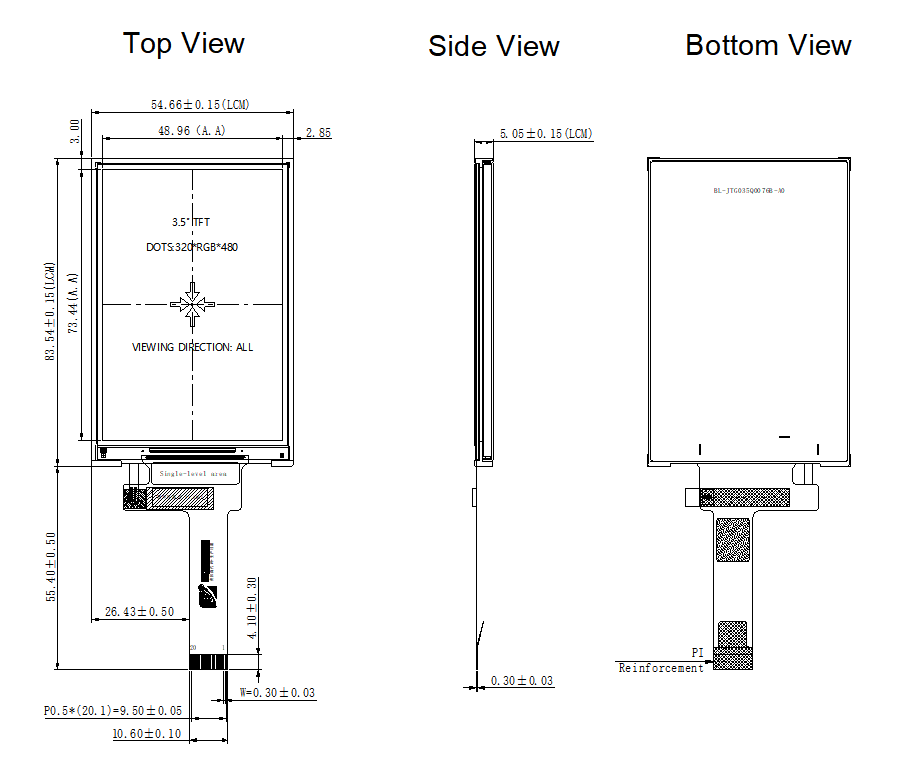

3.5 Inch Vertical IPS TFT LCD Display Drawing
