Automatic CNC Vertical Lathe Machine For Metal Turning And Grinding

VCM-600 Automatic CNC Lathe Machine for Metal Turning and Grindin


Technical Parameters:
ItemVCM-600
Processing ability
Maximum turing diameter on bed body650mm
Maximum turning diameter∅600mm
Maximum turninglength600mm
Maximum grinding diameter0600mm
Maximum outer grinding length300mm
Maximum inner hole grinding length300mm
Turning spindle
Nose end ofspindleA2-8
Spindle chuck specifications15"
Maximum spindle speed0~2000rmp
Grinding spindle

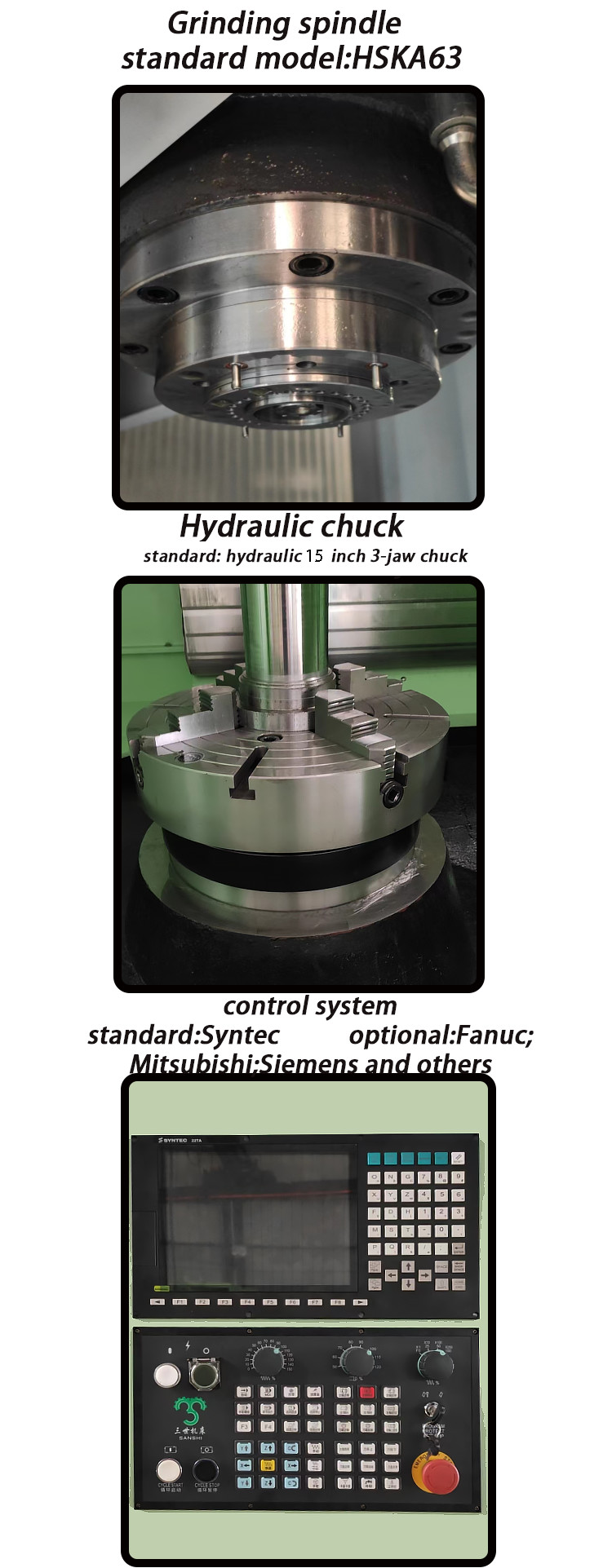

Spindle model numberHSKA63
Maximum spindle speed15000rmp
Spindle motor power18KW
Feed shaft
X/Z axis travel1000/600mm
X/Z axis fast displacement24/24m/min
X/Z axis screw specifications4010/4010
Positioning accuracy (JlS)±0.003/300
Repeated positioning accuracy (JiS)±0.003
Motor
Spindle motor power15KW
X/Z axis motor torque18N.m/28N.m
Cooling motor power0.49kw
Hydraulic station motor power4HP
Tool change system
Knife Change TypeServo hydraulic turret
Knife holder modelTCS100
Number of knife positions12T
Standard knife cylinder size25X25mm
Standard boring bar diameterφ40mm
General Specifications
Power supply capacity18KVA
Exterior dimensions (L X W X H)3.2X2.2X2.5m
Net weight (approx)7T
