Limit switch APL Sanmin Series

Categories Pneumatic Solenoid Valve
Brand Name: NBSANMINSE
Model Number: APLXC-3N Series APLXC-4N Series APLXC-5N Series
Place of Origin: CHINA
Certification: CE
Shell: IP67 IP67 EexdⅡBT6 Gb (EN50014/50018) IP67 EexdⅡCT6 Gb (EN50014/50018)
Temperature: -25~85℃
Connection terminal: 2×1/2NPT PT1/2 PF1/2 M20,PG13.5 2×3/4NPT PT3/4 PF3/4 2×3/4NPT PT3/4 PF3/4
Micro switch: Mechanical type, induction type, spring proximity type
Potentiometer: 1K ohm(0~5K ohm,0~10K ohm)
Current feedback: 4~20mA(20~4mA)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

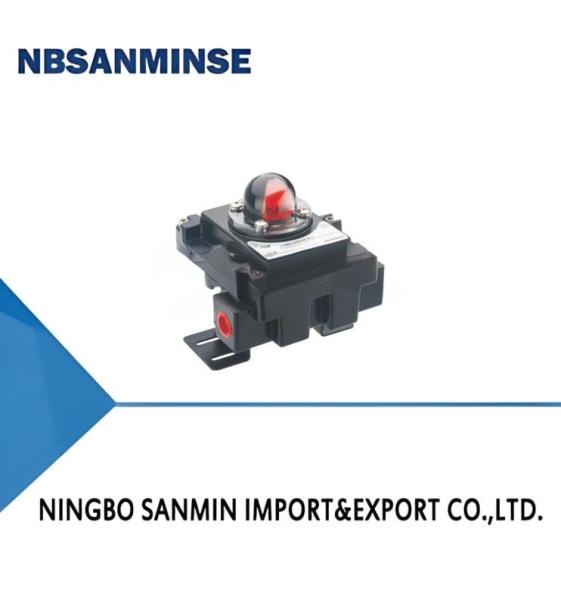

Limit switch APL Sanmin Series

Limit switch APL Series

1.Die casting aluminum alloy shell, powder coating, nice appearance, reliable in quality.

2.Switch position indicator can be made of clear identification

3.Quick setting CAM, by spline shaft and the spring installation,convenient adjustment without tools.

4.Multijunction terminal row,there are 8 standard contact, safe and convenient wiring

5. Interface standard of wire

6. Prevent to take off the bolt,dismantling bolt attached to the cover will not fall off.

ModelAPLXC-3N SeriesAPLXC-4N SeriesAPLXC-5N Series
StandardOptionStandardOptionStandardOption
ShellIP67

IP67 EexdⅡBT6 Gb

(EN50014/50018)

IP67 EexdⅡCT6 Gb (EN50014/50018)
Temperature-25~85℃

Connection terminal


2×1/2NPT

PT1/2

PF1/2

M20,PG13.5


2×3/4NPT

PT3/4 PF3/4

2×3/4NPT

PT3/4 PF3/4

Binding post

89~2489~2489~24

Conform to standard


Position indication0~90°0~180°0~90°0~180°0~90°0~180°
Open-yellow; close-red
Micro switchMechanical type, induction type, spring proximity type
Potentiometer1K ohm(0~5K ohm,0~10K ohm)
Current feedback4~20mA(20~4mA)

ModelShellMicro switchStents

APLXC

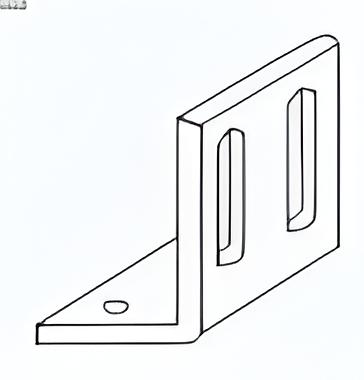

3 Climate protection type (IP6710 2-SPDT (Mechanical)Indicator shell For the bolted fixation

A

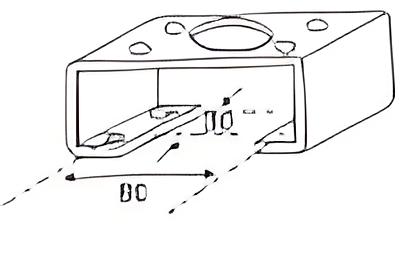

Ordinary type limit switch (side mounted)

30×80 H:20~30

4 Flameproof type (EexdⅡBT6G b)11 3-SPDT (Mechanical)

5 Flameproof type(EexdⅡCT6G

b)

12 4-SPDT (Mechanical)
13 2-SPST (Mechanical

B

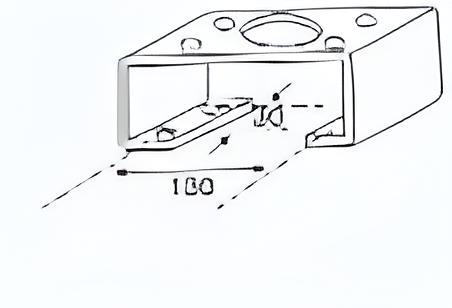

Ordinary type limit switch (side mounted)

30×130 H:30~50

14 2-DPDT (Mechanical)
15 2-SPDT + potentiometer (mechanical )
16 2-SPDI + current feedback (4-20 mA) (induction type)

C

Flameproof limit switch (bottom mounting)

30×80H:30

20 P&F.NJ2-V3-N (Induction-type)
21Autonics.PSI7-5DN U (Induction type)

22P&F.NJ412GM-N

(induction type)

D

Flameproof limit switch (bottom mounting)

30×130 H:30

23NBB 2-V3 (induction type)H:refers to the height of the pneumatic actuators upper output shaft
30General type (spring proximity)
31High temperature type (100℃) G spring proximity)
