ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

2.4 inch TN panel 240RGBx320 ST7789V TFT LCD Display Module

This is ESEN's 2.4-inch IPS TFT LCD module with a resolution of 240x320. It presents a clear picture and excellent color performance. The interface supports efficient connection and enables quick feedback of commands and data transmission. It is small in size, stable in performance, and is applied in small-sized intelligent devices and portable instruments. It can provide accurate and intuitive display information for products.
General Description:
T024HQ40E2543 is a 240RGB*320 dots matrix TFT LC D module. It has a TFT panel composed of 240 sources and 320gates. The LCM can be easily accessed by micro-controller.
Description of power supply:
IOVCC and VCC are connected together, with 2.8V-3.3V power supply; The backlit LED can be powered separately (3.0-3.4V), or it can share A set of voltages with VCC (A is positively connected to VCC, and K is connected together as negative ground).

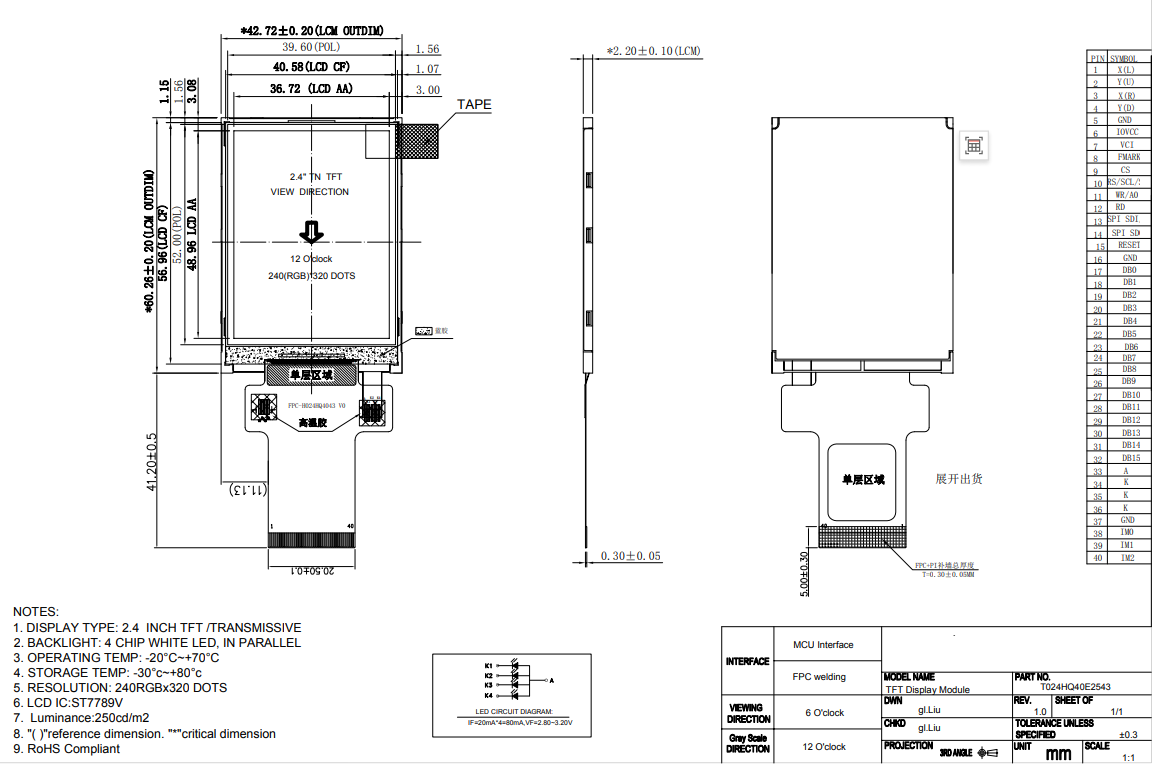

Mechanical Dimension:

Precautions for using LCD modules
Safety :
(1)Do mot swallow any liquid crystal ,even if there is no proof that liquid crystal is poisonous.
(2)If the LCD panel breaks, be careful not to get liquid crystal to touch your skin.
(3)If skin is exposed to liquid crystal, wash the area thoroughly with alcohol or soap.
Srorang Conditions :
(4)Store the panel or module in a dark place where the temperature is 23±5℃and the humidity is below 45 ±20%RH.
(5)Store in anti-static electricity container.
(6)Store in clean environment, free from dust, active gas, and solvent.
(7)Do not place the module near organics solvents or corrosive gases.
(8) )Do not crush, shake, or jolt the module.
Handling Precautions :
(9)Avoid static electricity, which can damage the CMOS LSI.
(10)The polarizing plate of the display is very fragile, please handle if very carefully.
(11)Do not give external shock. (12)DO mot apply excessive force on the surface.
(13)Bo not wipe the polarizing plate with a dry cloth, as it may easily scratch the surface of plate.
(14)Do not use ketonics solvent & Aromatic solvent, use with a soft cloth soaked with a cleaning naphtha solvent.
(15)Do not operate it above the absolute maximum rating.
(16)Do not remove the panel or frame from the module.
Warranty :
The period is within twelve months since the date of shipping out under normal using and storage conditions.
