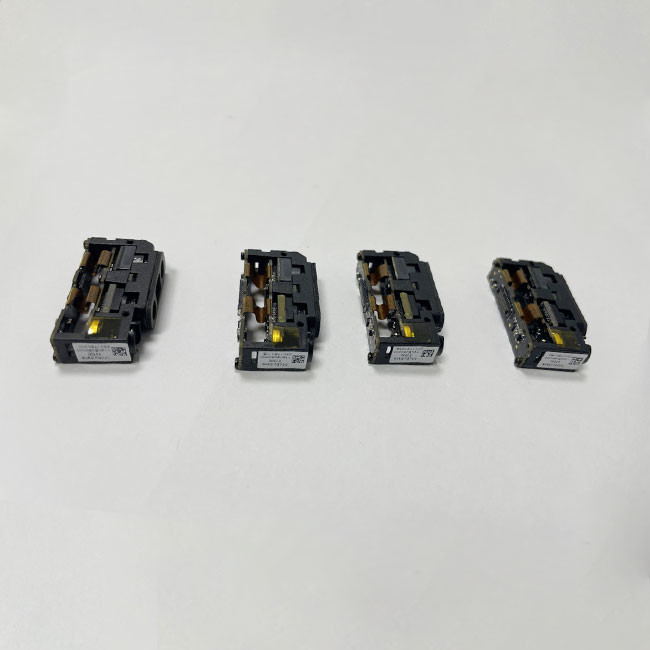

Low Engergy Consumption 1D Barcode Scan Engine Component for Scanner
Description:
The Low Energy Consumption 1D Barcode Scan Engine Component for Scanner is an electronic component designed specifically for scanners, with low power consumption. It features efficient barcode scanning capabilities while significantly reducing energy consumption during operation.
The Low Energy Consumption 1D Barcode Scan Engine Component has several key features. Firstly, it utilizes advanced energy efficiency optimization techniques, optimizing circuit design and algorithms to achieve low power consumption in operation. Secondly, it offers fast response and high-efficiency scanning capabilities, enabling quick and accurate reading of 1D barcode information. Thirdly, it typically provides flexible power options, such as battery or USB power, to meet the requirements of different usage scenarios. Fourthly, it ensures stable connectivity performance, such as USB or wireless connection, facilitating integration with other devices.
The Low Energy Consumption 1D Barcode Scan Engine Component is widely used in various scanners. Whether in retail, logistics, warehousing, or production process control, users can extend the scanner's battery life and reduce energy consumption by utilizing this low-energy scan engine component. It provides an efficient barcode scanning solution, enhancing both work efficiency and energy utilization efficiency.
Specification:
| Parameter | Performance | |
Image Sensor | Black and white imaging CMOS | |
| Pixel | 1280(H)× 800(V) | |
| Shutter | global exposure | |
| Frame Rate | 60fps | |
| Illumination | White | |
| Aim | Red Laser | |
| Field of View | H 39.5°,V 26.1° | |
| Reabable Code | 1D | Standard 1D Barcode |
| Postal Code | Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC)等 | |
Reading Depth of Field* | EAN-13(13mil) | 45~590mm |
| Code 39(20mil) | 45~930mm | |
| Code 39(10mil) | 65~470mm | |
| Code 39(5.5mil) | 70~340mm | |
| Code 39(3.9mil) | 60~220mm | |
| Data Matrix(15mil) | 50~420mm | |
| Data Matrix(10mil) | 50~300mm | |
| Reading accuracy* | 1D:2.5mil,Data Matrix:5mil,PDF417:3mil | |
| Reading Contrast* | ≥20% | |
Reading Angle** | (pitch) | ±60° |
| (tilt) | ±180° | |
| (skew) | ±60° | |
| Standard 1D Barcode |
