High Performance Embedded Industrial Arm Board Embedded Motherboard Software Developers Rugged Single Board Computer Dual Sim Ethernet JLD-I01
Description of JLD-I01 Embedded Industrial Arm Board
JLD-I01 is a high-performance, low-power, quad-core application processor, designed for personal mobile Internet devices and AIoT devices.RK3568 is built with a variety of powerful embedded hardware engines, providing excellent performance for high-end applications, supporting almost full format H.264 4k@60fps decoding, H.265 4k@60fps decoding, also supporting H.264/H.265 1080p@60fps encoding, and high quality JPEG encoding/decoding.RK3568 has a built-in 3D GPU and is fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.0. A dedicated 2D hardware engine will maximize display performance and provide a smooth operating experience. The embedded NPU supports INT8/INT16 mixed operations. In addition, with its strong compatibility, network models based on TensorFlow /MXNet/PyTorch/Caffe can be easily transformed.RK3568 with high-performance memory interface (DDR3 / DDR3L/DDR4 / LPDDR3 / LPDDR4 / LPDDR4X), can provide high performance scenarios the required memory bandwidth.
Feature of Embedded Industrial Arm Board
Industrial level deisgned, 17*17cm replace windows motherboard's size.
Rich Interface: Dual Ethernet, USB, HDMI out*2, VGA out*2, SATA, M.2 PCIE, com port, speaker, headphone port, etc.
Network interfaces: Ethernet*2, Wireless WIFI 2.4G & 5G for option, BT, 4G/ 5G network
Strong anti-electromagnetic interference and Electromagnetic compatibility.
Product interface photos
Main parameters of Embedded Industrial Arm Board
CPU | RK3568 highest frequency up to 2.0GHZ |
GPU | Multi-core ARM® Mali™-G31 |
EMMC | 2G/4G/8G DDR4 optional |
Display | Support LVDS,MIPI, HDMI out, VGA out. |
Audio Output | stereo, support Dolby sound |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | Gigabit Lan |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | USB3.0*2/USB HOST*4/OTG |
Serial port | UART*5 RS485*1 |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
HDMI OUT | *2 |
Net work | 4G / 5G |
PCB Size | 170mmX170mm |
Power supply | DC12V 2A input |
SATA | SATA hardware interface |
M.2 PCIE | M.2 PCIE SSD interface |
NANO-SIM | *2 |
FAN | Interface support |
IR | IR remote receiver |
Temperature | -20°- 80℃ |

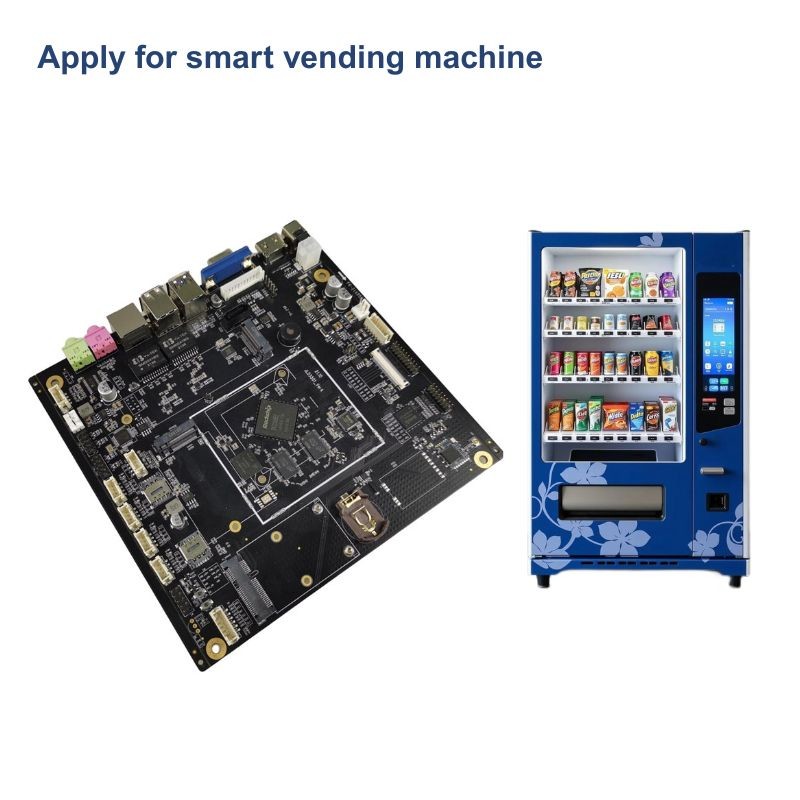

Apply
Embedded Industrial Device, digital signage, self service kiosk, Industrial control device, queue system, etc
Certificate
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
![]() |
