1 to 3.5 GHz 20 Watts LT-PD Series 2-Way Power Divider

1 to 3.5GHz 2-way Power Divider

Quick Detail:

· 2-Way Power Divider

· Stripline Design

· -40℃~+70℃ Operating Temperature

· 1 to 3.5 GHz Frequency Range

· Max Power 20 Watts

· Insertion Loss < 0.5 dB

· Isolation > 20 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-2S-010035 from ZR is a 2-way power divider that operates from 1 to 3.5 GHz and can handle up to 20 Watts (CW) with 0.5 dB insertion loss and 20 dBisolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant. More details for LT-PD-2S-010035 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

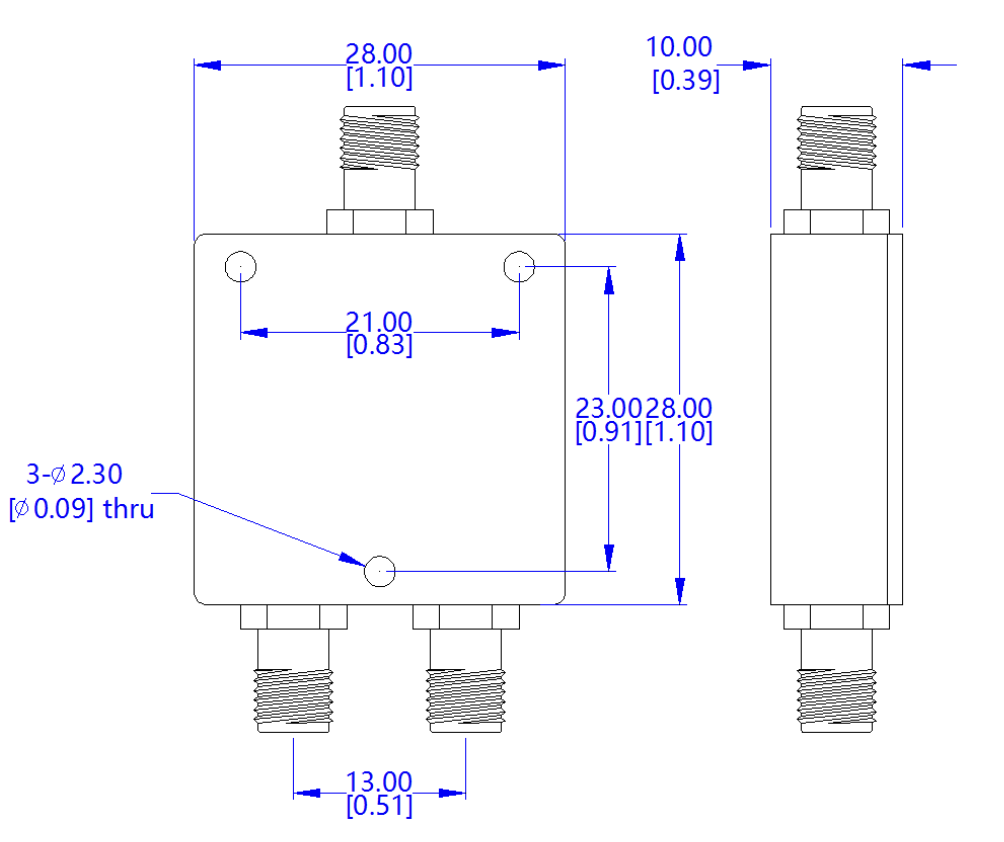

Outline Drawing (Unit: mm):
