Full Hydraulic Core Drilling Rig Geological Exploration Wireline Drill Machine Equipment With 1400m Depth Capacity

Categories Exploration Drilling Rig
Brand Name: Aoxing
Model Number: QYD-800
Certification: ISO9001
Place of Origin: Hebei,China
MOQ: 1 Set
Supply Ability: 30 Sets/Month
Packaging Details: in New Strong Plywood Case
Model NO: QYD-1000
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: Bq, Nq, Hq, Pq
Drill Hole Depth: 300-1400M
Transport Way: Crawler
Bit Type: Diamond Bit
Drilling Way: Rotary
Drilling Capacity: Bq, Nq, Hq, Pq
After-sales Service: Provide Train Video or Remote
Warranty: Main Parts Within Six Months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Hydraulic Core Drilling Rig Geological Exploration Wireline Drill Machine Equipment With 1400m Depth Capacity

Full Hydraulic Core Drilling Rig Geological Exploration Wireline Drill Machine Equipment With 1400m Depth Capacity

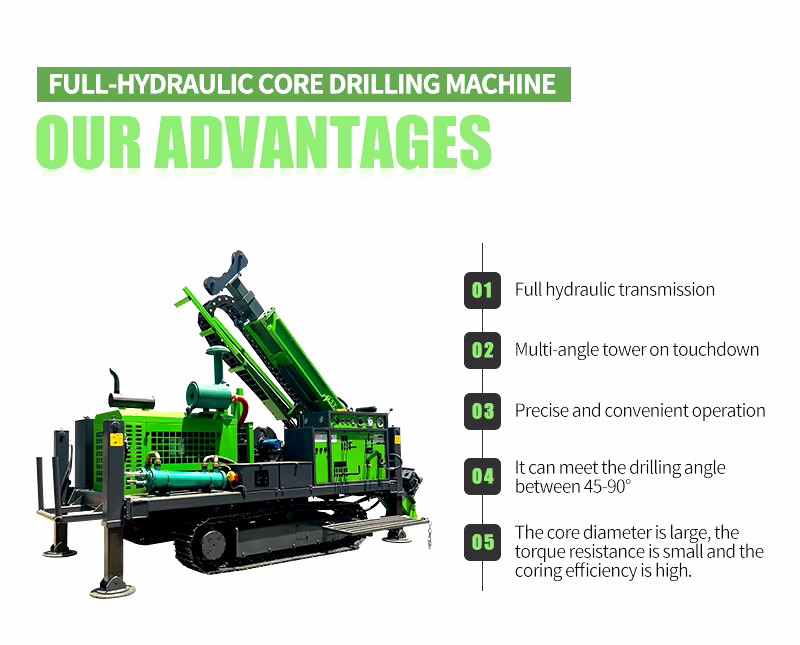

Crawler Mounted Full Hydraulic Core Drill Rigs Exploration
Hydraulic Crawler drilling rig machine is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,sub grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc. Crawler drilling rig console and platform combination, easy to operate,with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform.
Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
1, With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
2, The use of ball clamping mechanism instead of chuck, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
3, With a hole-bottom pressure gauge, easy to control the situation in hole.
4, Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.

Parameters of QYD-1000 fully hydraulic core exploration drilling rig

Drilling rig modelQYD-1000
Drilling capacityBTW (m)1400
NTW (m)1200
HTW (m)1000
PQ (m)800
Hydraulic systemRated pressure (MPA)32+16
Cooling modeSecondary air cooling Primary water cooling
EngineEngine typeWeichai six cylinders
Rated power (Kw)129
Power HeadMaximum torque (N.m)2600
Maximum rotating speed (rpm)1400
Feeding Stroke (m)3.5
Lifting force (kN)360
Propulsion force (kN)180
Wire-line coring winchRope capacity (m)1200
Lifting force (kN)24
Lifting speed (m/min)110
Touchdown integrated drill towerFull height (m)7.9
Drilling angle (°)0-90
Slip stroke (mm)1200
Crawler chassisWalking modeManual + Remote control
Transport sizeL*W*H (m)5.6*2.2*3.0
Whole machine weightT7.3

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
