BLDC Motor Stator Slot Liner Paper Inserting Machine WIND-IP-5

BLDC Motor Stator Slot Liner Paper Inserting Machine WIND-IP-5

1.This machine is used for brushless stator insulation paper insertion process.

2.Quickly change tooling, simple operation, convenient and reliable.

3.It can automatically load and unload, servo indexing, and mechanically cooperate with paper feeding and cutting.

4.Feeding method: Servo feeding.

5.Indexing method: Servo indexing.

6.Paper feeding accuracy: ±0.15mm.

7.Feeding efficiency: 1 second/slot.

8.Insulating paper: Various types of insulating paper materials currently on the market.

9.Working air pressure: 0.5-0.7MPa.

10.Applicable fields:

Application:

This paper inserting machine form, cut and insert the insulation paper polyester to BLDC Motor stator's slot,

Such as power tools, garden tools, vacuum cleaner motors, automotive motors, small household appliances, and other fields

the process is forming, cutting, inserting, indexing to next slot,

repeat the action until all the setted armature slots are finished,

Motor Manufacturer Clinet Question:

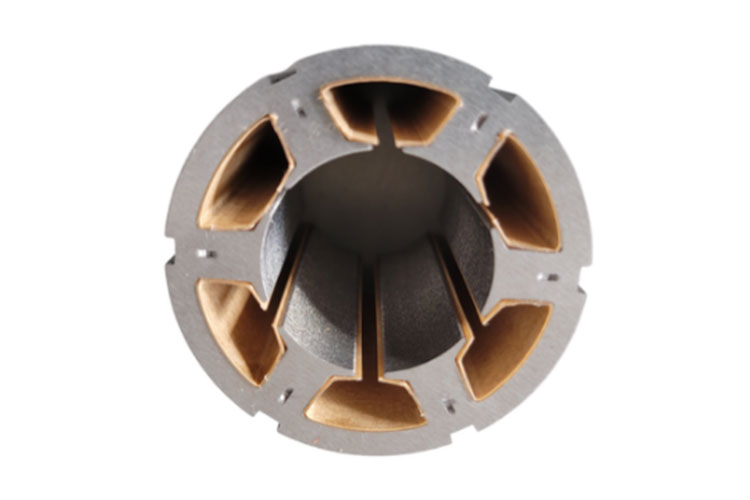

Do you have an way to insulate these stators,

Wind Automation Answer

Shanghai Wind Automation Equipment Co.,Ltd supply motor automation solution for global motor manufacturers. Setted up in the year 2010 by Senior Engineer Mr.Wang who involve in electric motor filed since 1998. Through continuous innovation and participating in globalization, it has now developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers worldwide.

Shanghai Wind Automation built a 3C business system

1.Customized Machinery

​   Provide armature,stator motor manufacturing mchinery,

   including stand along machine, fully-auto complete production line

​

2.Characteristic Component

  Supply the full range of motor components such as commutator, magnet, fan, motor cover,etc.

3.Comprehensive Service

   Provide motor project technical support and consulting

Centered on Shanghai, the company has formed four production bases in the Yangtze River Delta city group and supplied over 20 countries including USA, Mexico,Brazil, Argentina, Turkey,France,Germany,

Czech Republic,Romania,India, Bangladesh and So on.

Our objective is to provide turn-key motor manufacturing automation equipment with no limitation

as free as the Wind, reduce the labor cost and free the human being operator,

make the life easier and more enjoyable.
