| Categories | IFM and P+F Sensors |
|---|---|
| Brand Name: | IFM |
| Model Number: | IF5313 |
| Certification: | rohs |
| Place of Origin: | Germany |
| MOQ: | 1PC |
| Price: | USD |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/MONTH |
| Delivery Time: | 4-6weeks |
| Packaging Details: | Standard Packing |
| Application: | for process sensors |

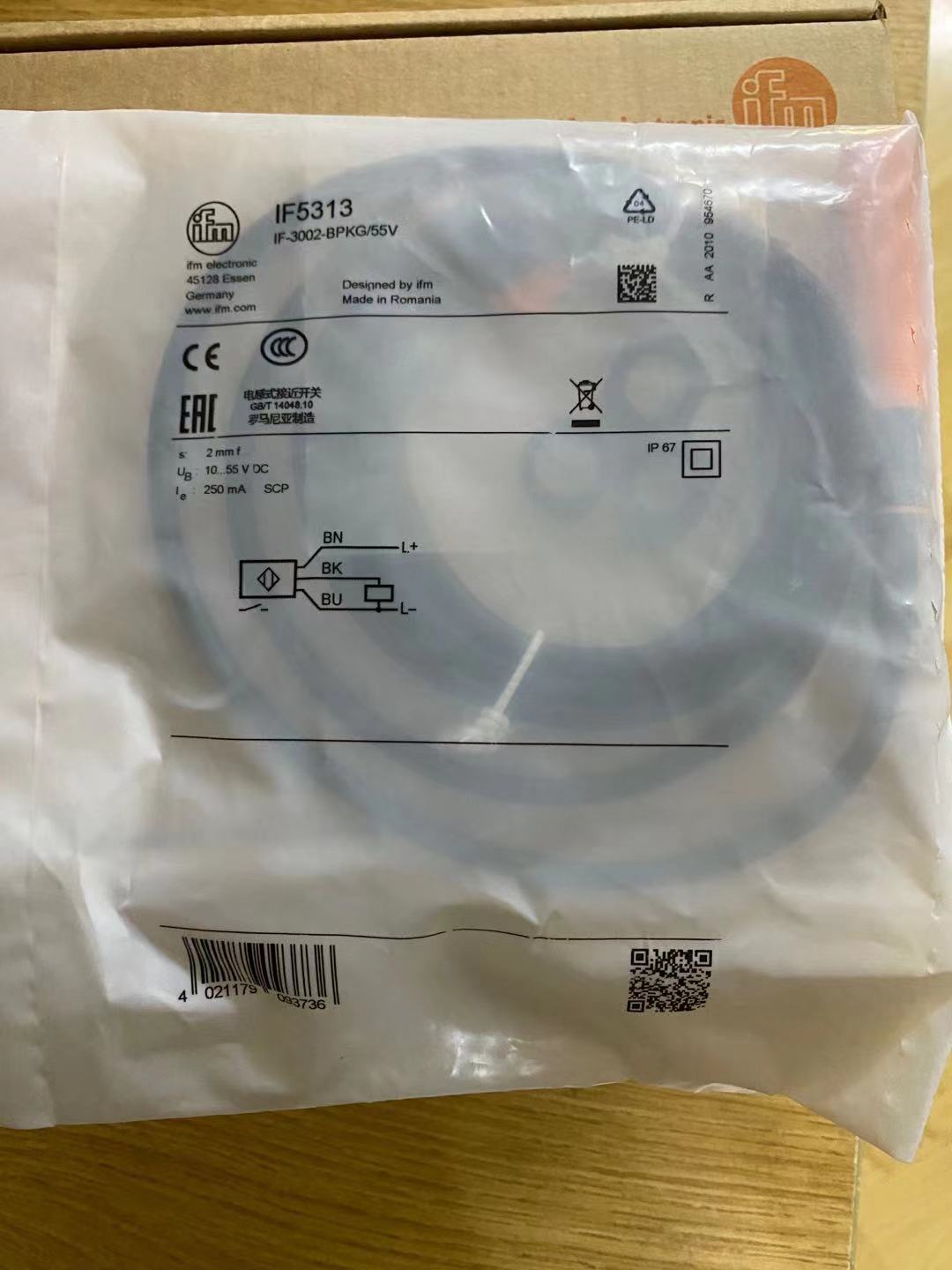

| Product Name: | Inductive sensor |
| Model: | IF5313 |
| Manufacturer: | IFM |
| Origin: | Germany |
| Warranty: | 12 months |
| Shipping weight: | 1KG |
| Condition: | Origin and Brand New |
| Company Info. |
| GREAT SYSTEM INDUSTRY CO. LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| Electrical design | PNP |
| Output function | normally open |
| Sensing range[mm] | 2 |
| Housing | threaded type |
| Dimensions[mm] | M12 x 1 / L = 71 |
| Operating voltage[V] | 10...55 DC |
| Current consumption[mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 250 |
| Switching frequency DC[Hz] | 800 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Sensing range[mm] | 2 |
| Real sensing range Sr[mm] | 2 ± 10 % |
| Operating distance[mm] | 0...1.6 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -10...10 |
| Ambient temperature[°C] | -25...80 |
| Protection | IP 67 |
| EMC |
| ||||
| MTTF[years] | 945 |
| Weight[g] | 88.5 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M12 x 1 / L = 71 |
| Thread designation | M12 x 1 |
| Materials | PBT |
| Display |
|
Delivery details
•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.
•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express.
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
|
