| Categories | Bently Nevada Parts |
|---|---|
| Brand Name: | Bently Nevada |
| Model Number: | 3500/25-01-01-00 125792-01 |
| Certification: | COC |
| Place of Origin: | USA |
| MOQ: | 1 Piece |
| Price: | $2000 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Piece per a day |
| Delivery Time: | 3-5 work days |
| Packaging Details: | original |

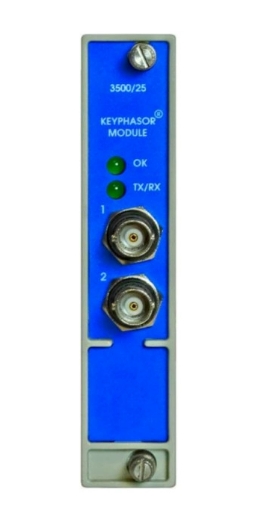

| Product Name: | 3500/25-01-01-00 125792-01 Bently Nevada Enhanced Keyphasor Module Machinery Condition Monitoring |
| Product Model: | 3500/25-01-01-00 125792-01 |
| Lead time: | 3-5 Work Days |
| Condition: | New |
| Warranty: | 12 months |
| Shipping by: | DHL,TNT or EMS,Fedex,UPS |
| Packing Size: | 16*16*12cm |
| Gross Weight: | 1 kg |
| Company Info. |
| Joyoung International Trading Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
3500/25-01-01-00 125792-01 Bently Nevada Enhanced Keyphasor Module Machinery Condition Monitoring
Additional Information:
| 3500/25-AA-BB-CC | |
| A: Number of channels | |
| 01 | Single half-height 2-channel Keyphasor card (order for 2-channels) |
| 02 | Two half-height 2-channel Keyphasor cards (order for 4-Channels) |
| B: Type of I/O Module | |
| 01 | I/O module with Internal Terminations |
| 02 | I/O module with External Terminations |
| 03 | Internal Barrier I/O with Internal Terminations |
| 04 | Isolated I/O module with Internal Terminations (Designed for use with Magnetic Pickups) |
| 05 | Isolated I/O module with External Terminations (Designed for use with Magnetic Pickups) |
| C: Agency Approval Option | |
| 00 | Not required |
| 01 | cNRTLus (Class 1, Div 2) |
| 02 | ATEX/IECEx/CSA (Class 1 Zone 2) |
Description:
The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack.
The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer.
The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.
Enhanced product features include generation of once-per-turn event signals from multievent-per-turn inputs, field-upgradeable firmware, and asset management data reporting.
Product Details:
| Brand Name | Bently Nevada |
| Model | 3500/25-01-01-00 |
| Ordering information | 125792-01 |
| Catalog | 3500 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $2000 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Datasheet Link:Bently Nevada 3500 25.pdf
|
