| Model Number: | RNS-S0816 Flat |
| Brand Name: | RayNeon® |
| Certification: | CE ROHS UV ETL FCC |
| Place of Origin: | Dongguan China |
| MOQ: | 1 meter |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 50000 meters/month |
| Delivery Time: | 5-10days |
| Price: | USD 1.99-3.99 |
| LED Color: | R/G/B/Y/W/RGB |
| Shell Color: | White |
| Shell Material: | UV resistant Silicone、Dow Corning & Shin-Etsu are available |
| Standard Length: | 5m/roll |
| Size(W*H*L): | 8*16*5010±10 mm、The length can be customized |
| Cutting Unit(mm): | - |
| Ambient Temperature: | -40° to +55° |
| Use Environment: | Indoor& Outdoor |
| Waterproof Rating: | IP65 |
| Width of Strip: | 8mm |
| LED source: | SMD2835 120pcs/m (Single color)、SMD5050 96pcs/m (RGB color) |
| Voltage: | DC12V/DC24V |
| Power (white color): | 8w/m |
| Production Process: | Casing |

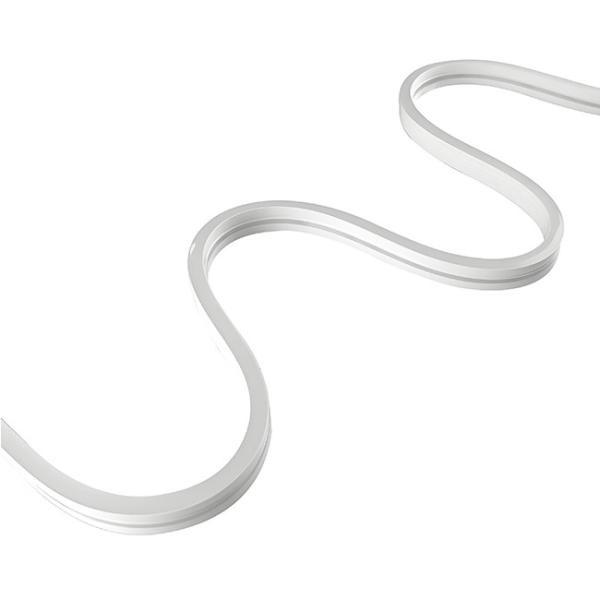

| Product Highlights: | Medium size, flat glow、Ultra flexible, can be bent at a very small angle、Can be used in the small space gaps |
| Company Info. |
| RayNeon Technology Co.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Wavelength/Color Temperature(nm/k) | Color Rendering Index | luminous flux(lm/m) | lighting effect(m/w) | rated power(W/m) | Standard cascading length(mm) |
| 2100K | 90 | 70.3 | 6.1 | 11.5±10% | 5000 |
| 2700K | 80 | 169.0 | 14.6 | 11.5±10% | 5000 |
| 3000K | 80 | 136.4 | 11.8 | 11.5±10% | 5000 |
| 3700K | 80 | 176.7 | 15.3 | 11.5±10% | 5000 |
| 4300K | 80 | 172.4 | 14.9 | 11.5±10% | 5000 |
| 5200K | 80 | 168.1 | 14.6 | 11.5±10% | 5000 |
| 6000K | 80 | 177.5 | 15.4 | 11.5±10% | 5000 |

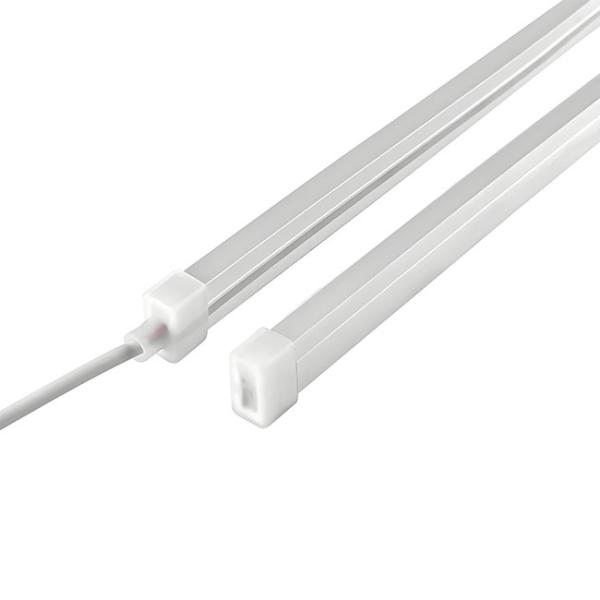

DC12V RGB LED Neon Flat 08*16mm Side View 8w/m Flexible Neon IP65 120LED/M Silicone Tube Christmas Decoration Billboard
product description
Model: RNS-S0816 Flat
Board width: 8mm
Material: Silicone
Luminous angle: 120 °
Bending radius: ≥ 30mm
Product Features
1. Side bending, flat side emission, uniform emission, no light
spot (dual color silicone extrusion)
2. High quality light source, reinforced bracket LED packaging,
3-ounce FPC
3. Visual cutting window/Multiple color options/IP67 waterproof
rating
4. Exquisite silicone extrusion technology, food grade
environmentally friendly silicone material, with weather
resistance, UV resistance, salt spray resistance and corrosion
resistance characteristics
5. Working/storage temperature: -20 ℃~45 ℃/-25 ℃~65 ℃

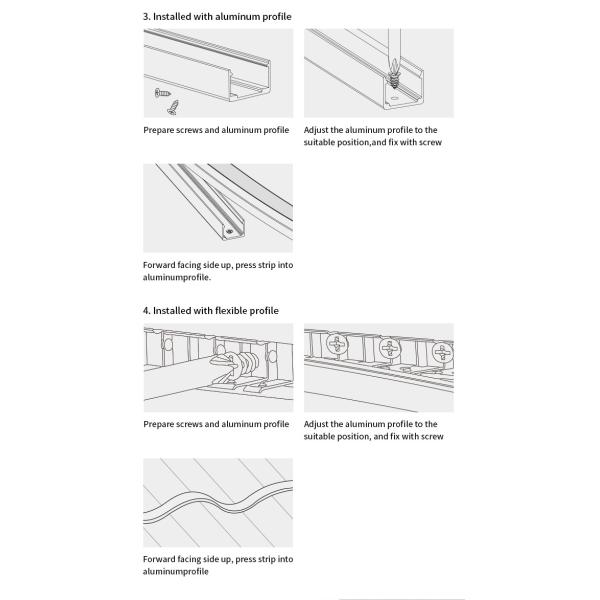

6. Multiple installation accessories to choose from: aluminum
buckle/aluminum groove/keel frame
7. Service life: 30000 hours, 3-year warranty
Product Application
1. Home lighting/commercial lighting
2. Hotel/mall lighting
3. Indoor/outdoor lighting
4. Architectural contour lighting









|
|
