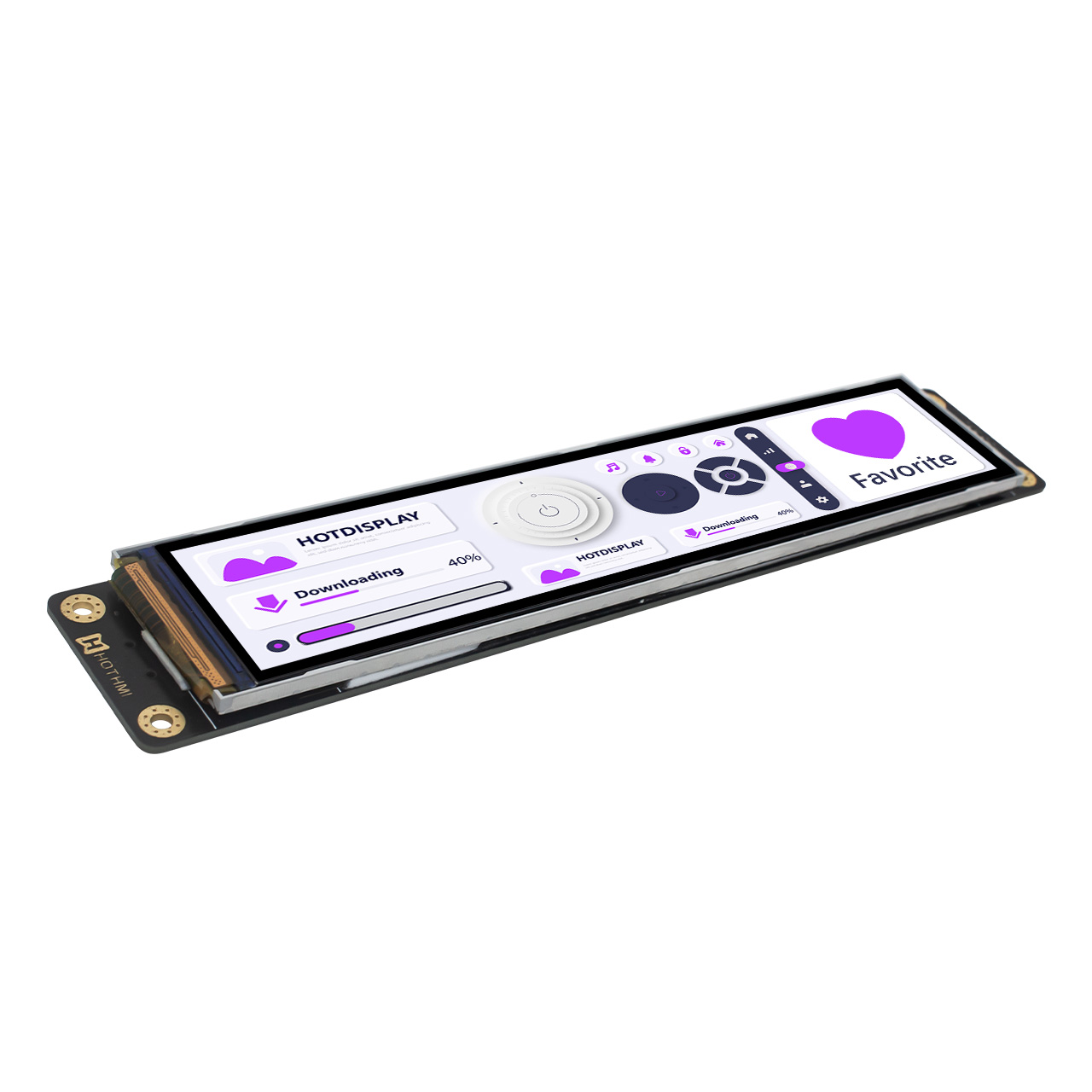

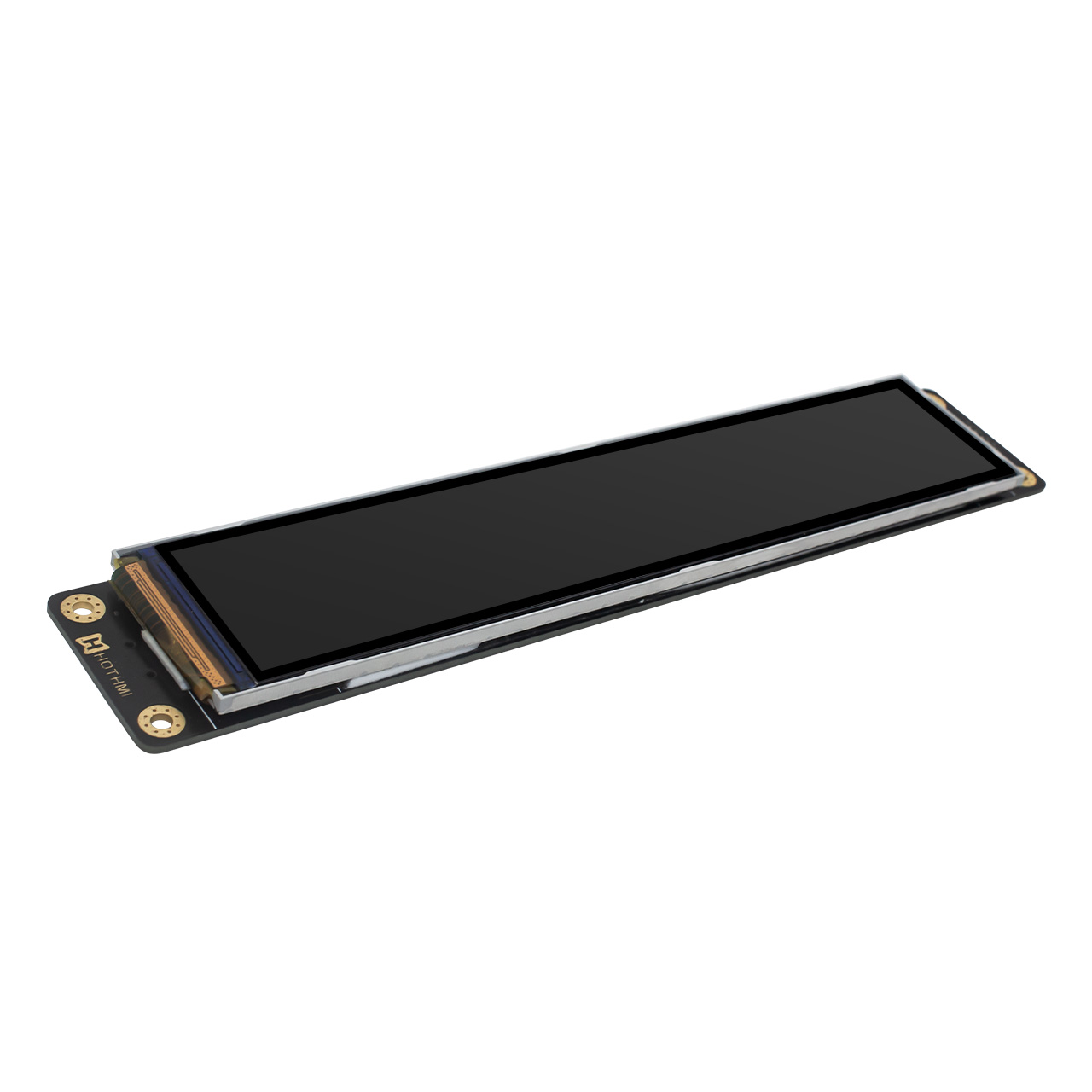

7-inch IPS serial touch screen for smart devices 280×1424 ultra-clear display UART asynchronous serial interface Supports multi-level brightness adjustment IoT HMI human-computer interaction module

【7-inch TFT LCD Module HTM-H070A18-UART-A01 | High-Performance Display Solution】

Core Selling Points at a Glance

✅ Wide Temperature Operation: Works at -20℃~70℃, stores at -30℃~80℃. Industrial-grade durability for extreme environments!

✅ Full Viewing Angle: U85/D85/L85/R85 wide-angle design ensures consistent, vivid visuals from any direction.

✅ High Brightness: 500cd/m² typical brightness (fixed current test) for clear visibility in strong light—perfect for outdoor use.

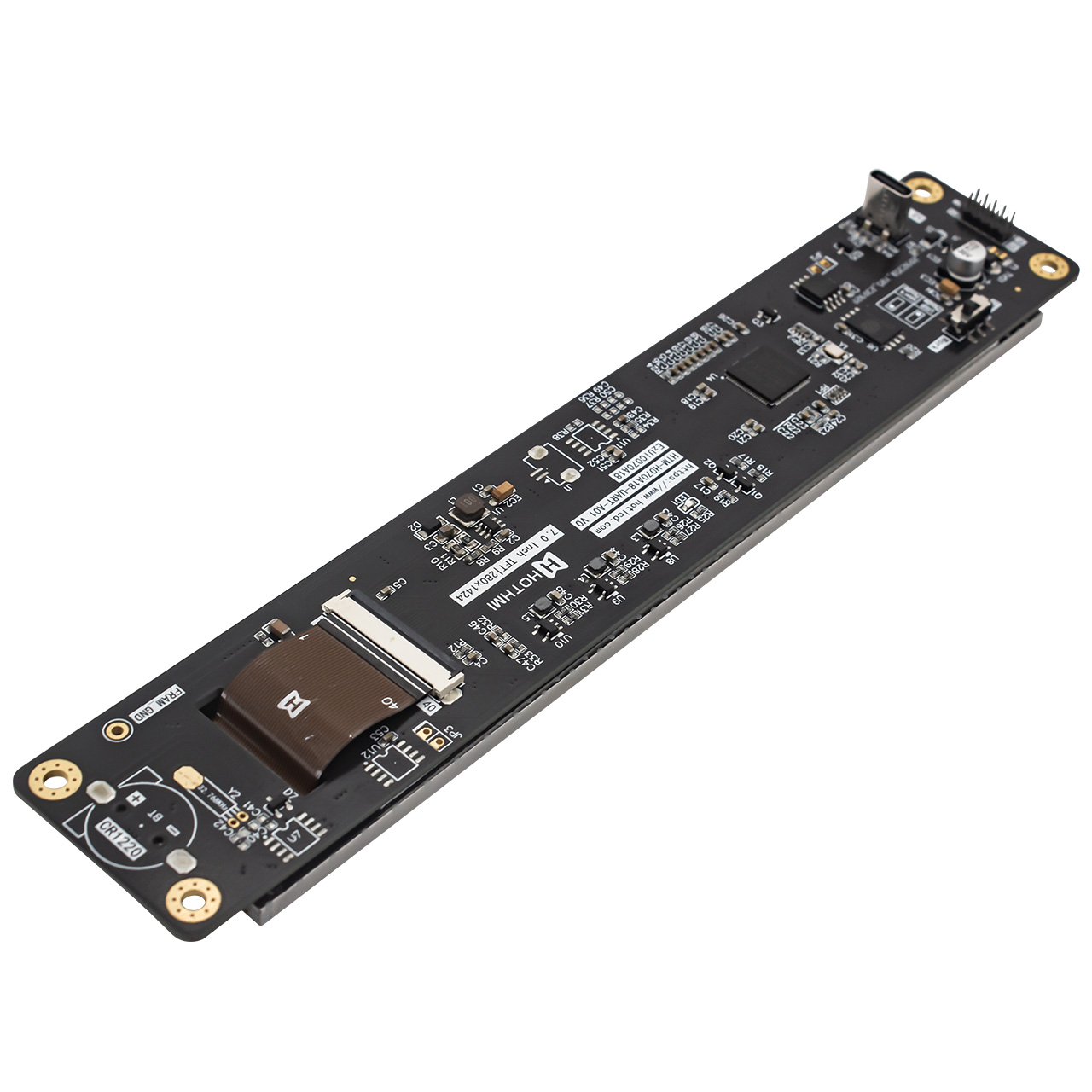

✅ Powerful Hardware: Equipped with a 32-bit ARM Cortex™ M33 core and 1G-Bit (128M Byte) Flash for efficient data processing and storage.

✅ Flexible Interfaces: UART (TTL) interface with VDD=+5V power supply + USB Mini-B for firmware upgrades, enabling easy development.

✅ Anti-Burn-in Design: Official recommendation: use black or moving screensavers. Refresh static images ≤ every 2 minutes to prevent image retention and extend screen life.

Precise Specifications

▪️ Display Size: 7 inches

▪️ Resolution: 280(RGB)×1424 Dots, high-definition clarity

▪️ Dimensions:

- TFT Area: 170.88×33.60 (A/A)

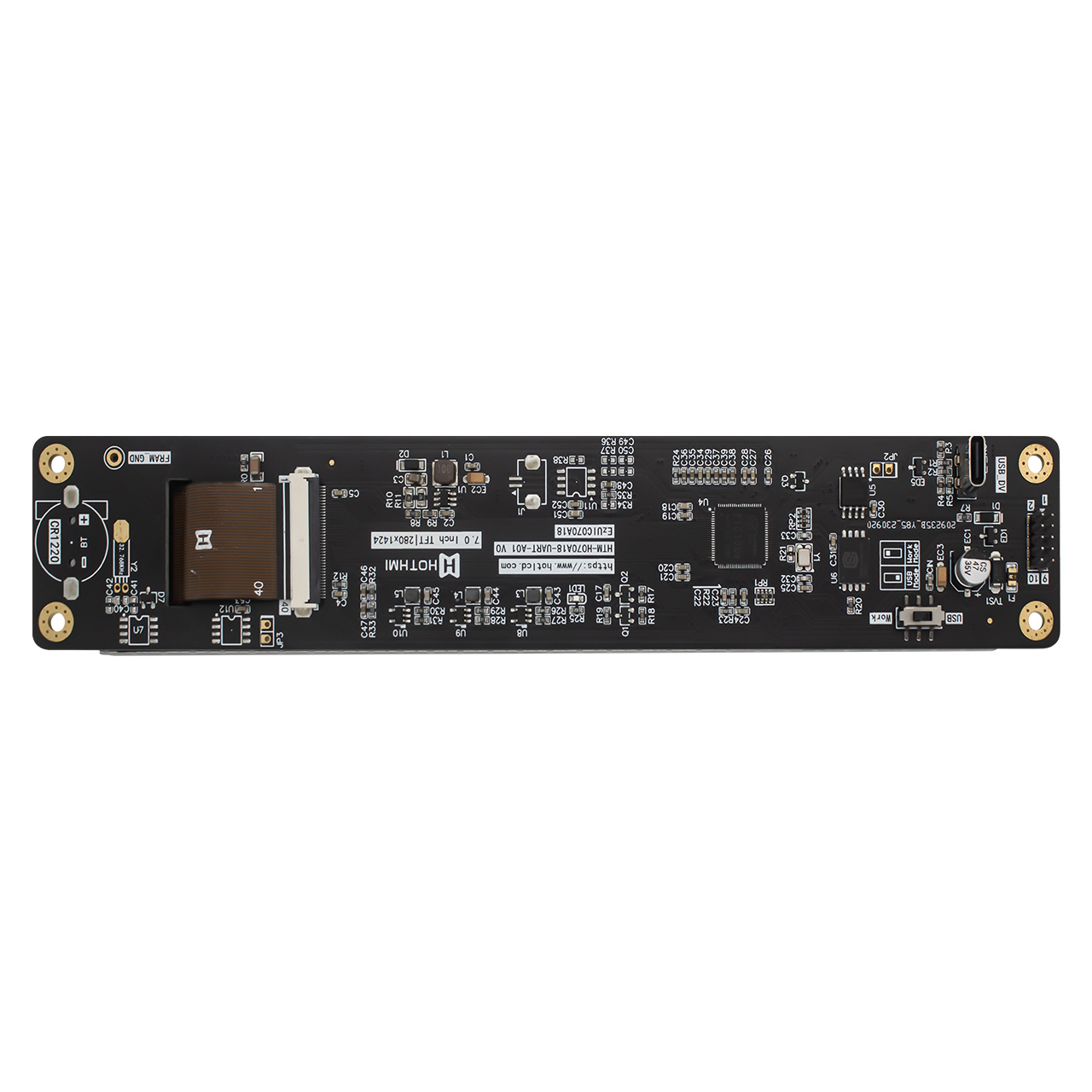

- PCB Size: 206.00±0.2 (L) ×38.00±0.2 (W)

▪️ Mounting Hole: 196.00±0.2mm (Hole)

▪️ Thickness: 5.45±0.5mm (TFT + foam tape), 1.6mm (PCB)—ultra-thin and compact

▪️ Pinout: 10-pin interface (3×+5V, 3×GND, RX/TX/REST), simple and straightforward wiring.

Application Scenarios

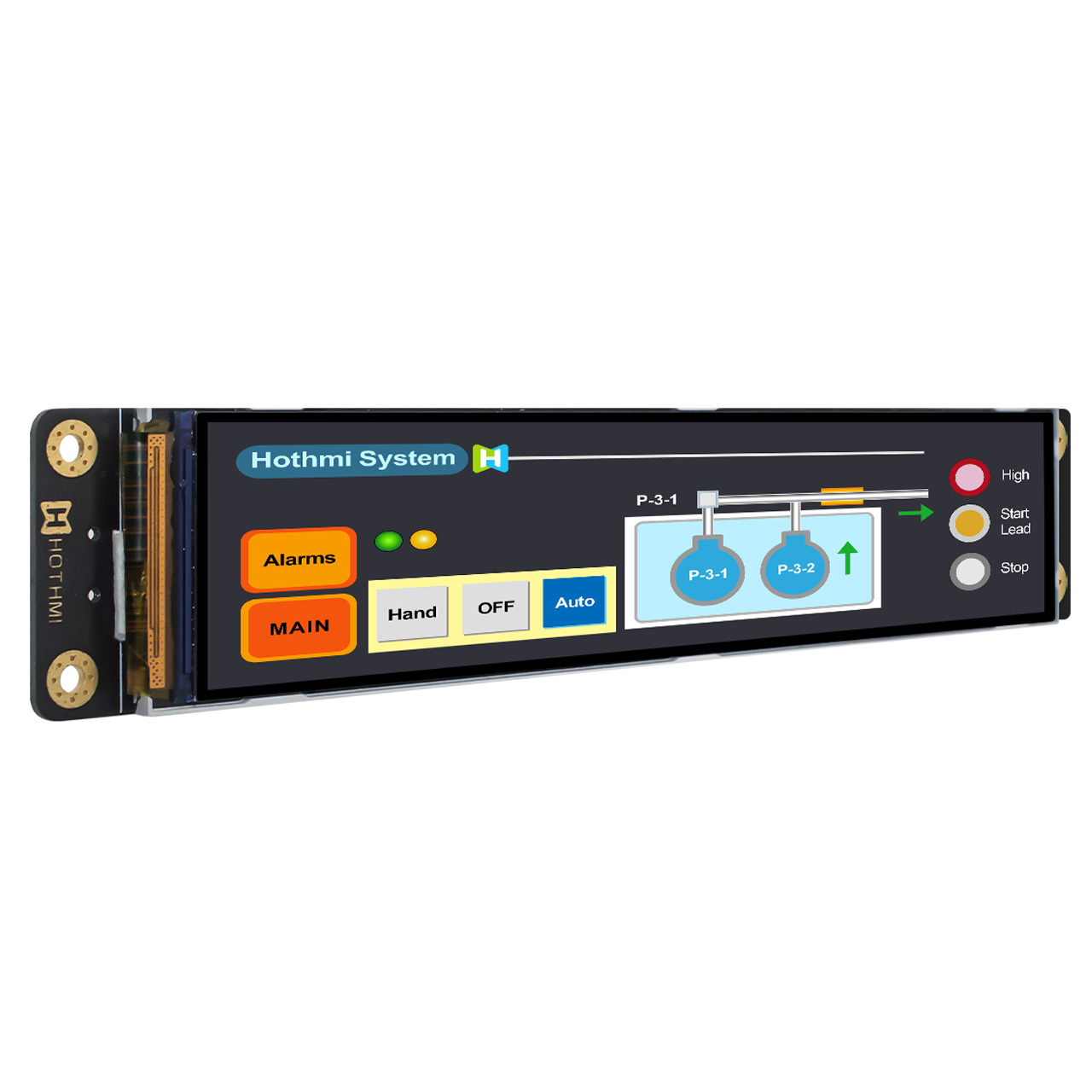

Human-Machine Interfaces (HMIs) for industrial automation

Smart home control panels

Medical instrument display terminals

In-vehicle navigation and infotainment systems

Outdoor self-service terminals

Why Choose Us?

✅ Professional Design: Strict tolerance control (±0.2/±0.5mm) ensures structural precision and stability.

✅ Customer-Centric Service: Provides screensaver usage guidelines to optimize display solutions and reduce maintenance costs.

✅ Reliable Quality: Passed industrial-grade environmental tests—stable performance from -20℃ cold to 70℃ heat.
