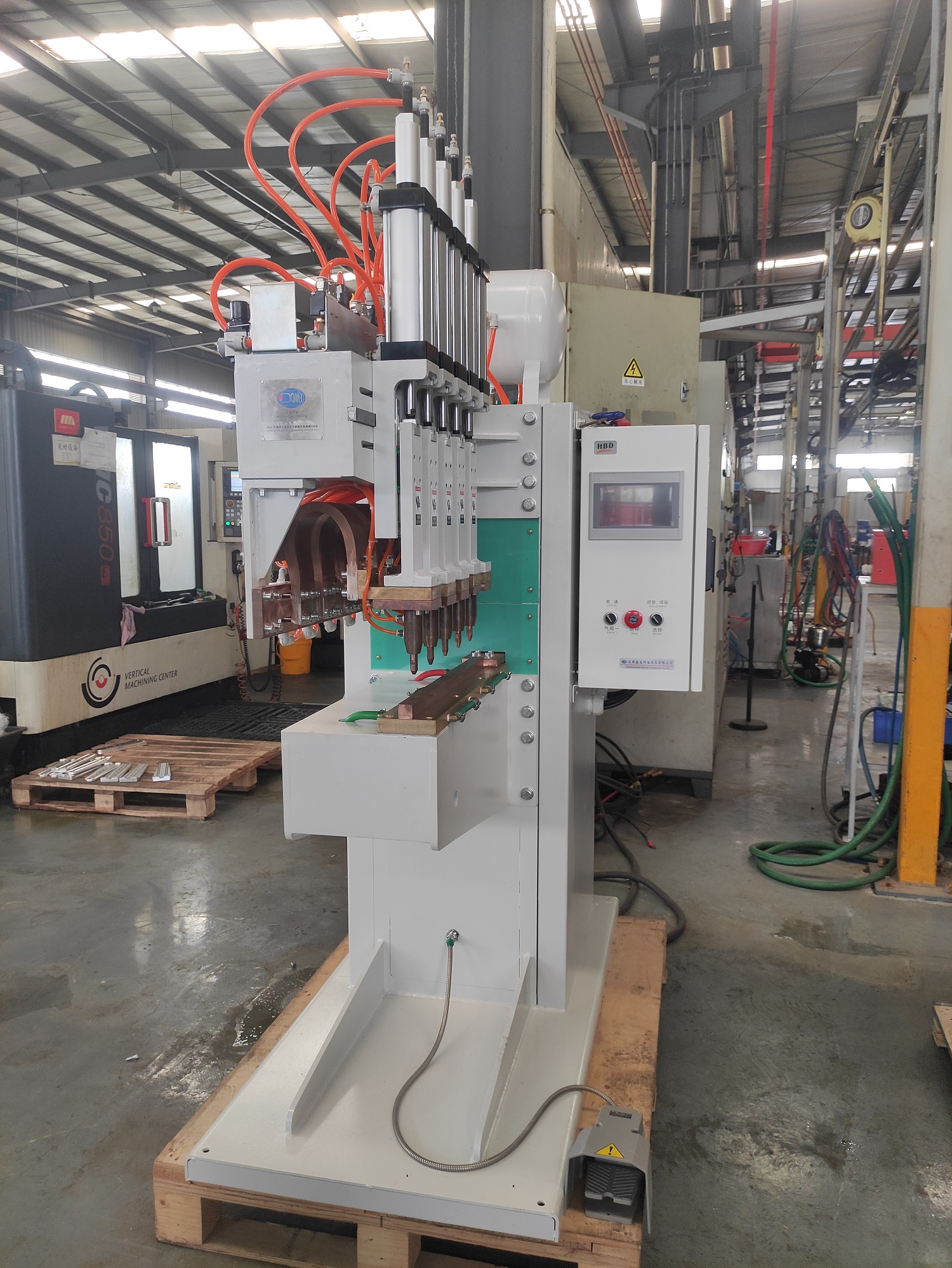

High Production Efficiency Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

Sheet Metal Aluminium Multi-Point Point Spot Welder Multi Head Spot Welding Machine

Product Introduction:

Multi head spot welding machine is an efficient welding equipment that uses multiple electrodes to weld simultaneously, greatly improving production efficiency. This welding method is suitable for large-scale production and can weld multiple fusion nuclei at once, which is several times to tens of times faster than ordinary spot welding machines, significantly improving productivity.

Features:

(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;

(2) The upper electrode moves vertically up and down, and has a smooth adjusting working stroke and auxiliary stroke. The lower electrode can be adjusted in a vertical direction;

(3) The straight solenoid valve is adopted to accelerate the reaction speed, greatly improve the operating speed of the upper head, and reduce the air flow loss;

Technical Parameters:

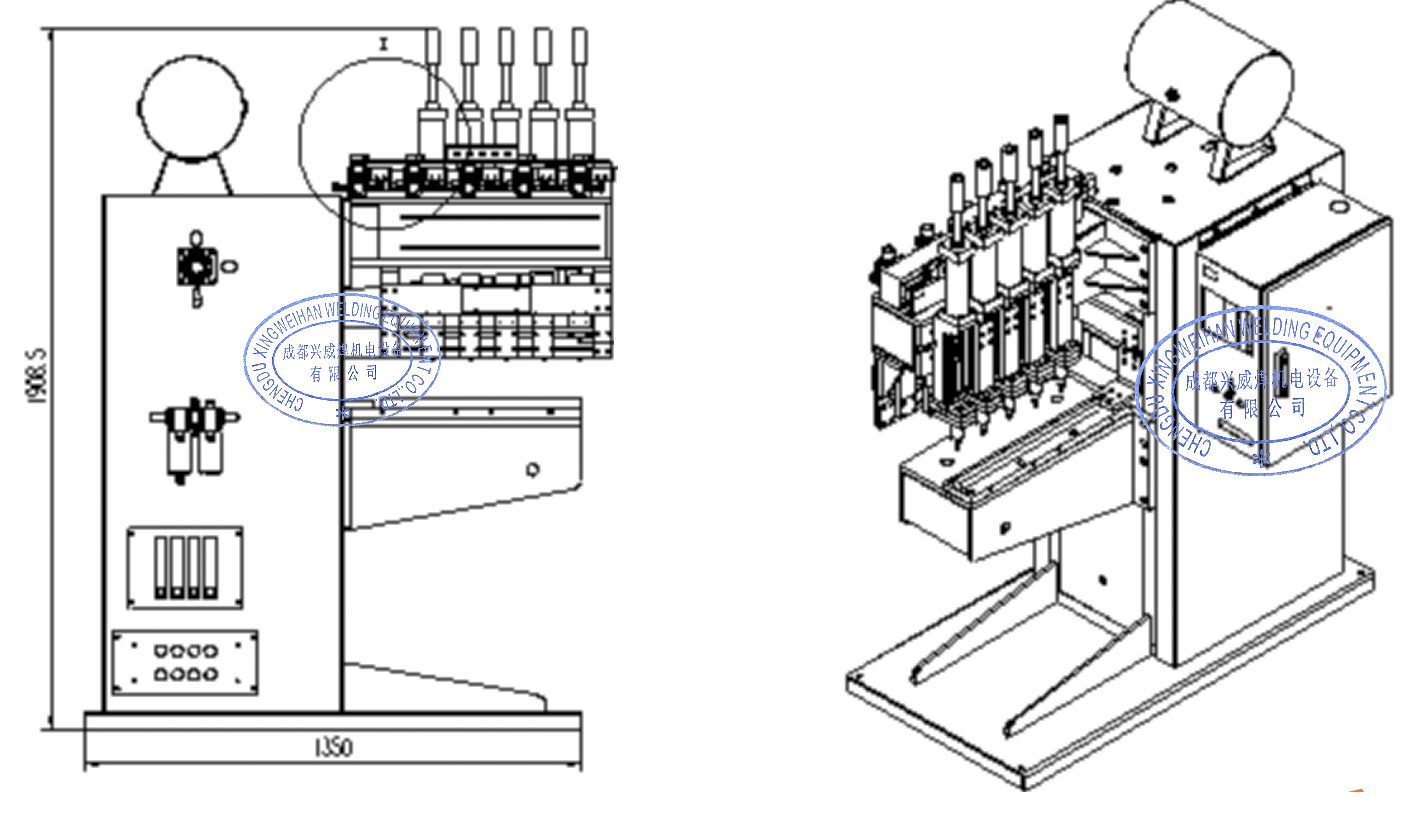

General Structures:

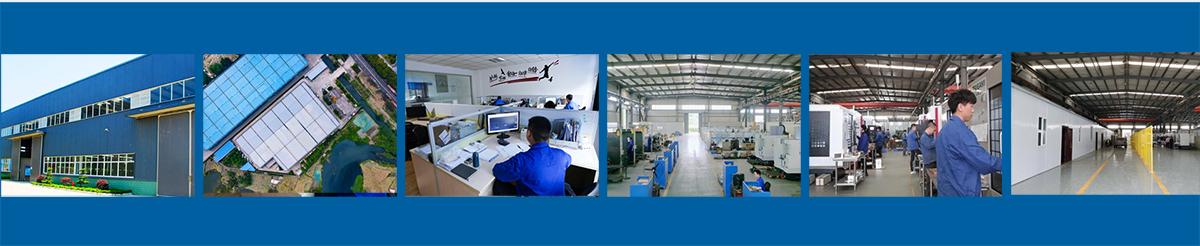

Production Line:

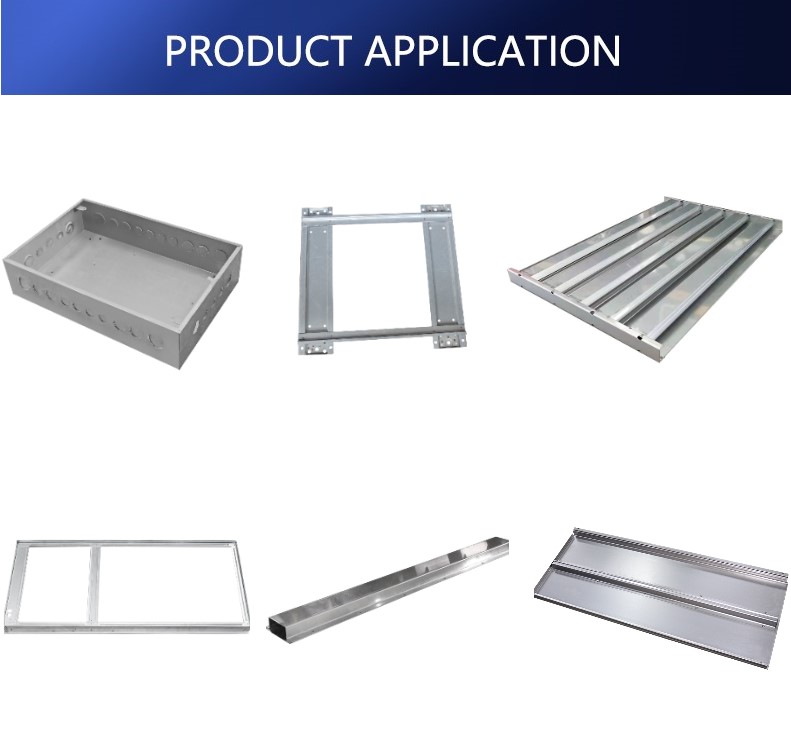

Application:

FAQ:
