Customized Integrated Input Output Module , Profinet Io Module 100Mbps RS Series

Customized Request RS Series Integrated I/O Modules for Industrial Fieldbus Protocols

Product Description

Decowell RS series integrated I/O PN2-S2 Communication Module

RS series integrated l/O modules support a variety of industrial fieldbus protocols, such as EtherCAT, PROFINET, EtherNet/lP, DeviceNet, etc. The I/O modules support a maximum of 32 channels of digital inputs/digi-tal outputs, and users can choose different I/O module components according to the actual needs, with single-slot and dual-slot chassisavailable.The RS series bus protocols are respectively

Each bus protocol of RS series supports 16DI NPN, 16DI PNP, 16DO NPN, 16DO PNP, 8DI8DO NPN, 8DI8DO PNP, 8DO relay respectively.

Product Parameters

Bus protocol	PROFINET
Communication distance	100m(distance from station to station)
Bus communication rate	100Mbps
topology	Depends on PROFINET master specifications
Device name	Dip switch setting or software allocation
System power input	DC24V(18-30V)
The system power supply provides current	2A
IO power input	DC24V(18-30V)
The IO power supply provides current	10A
Overcurrent protection	YES
Overvoltage protection	NO
Anti-reverse connection protection	YES
System side electrical isolation	YES
Operating ambient temperature	-10°C-55°C
Working ambient humidity	10%-95% no condensation
Height of working environment	<2000m
Use ambient air	non-corrosive
EMC level	Zone A
Class of protection	IP40

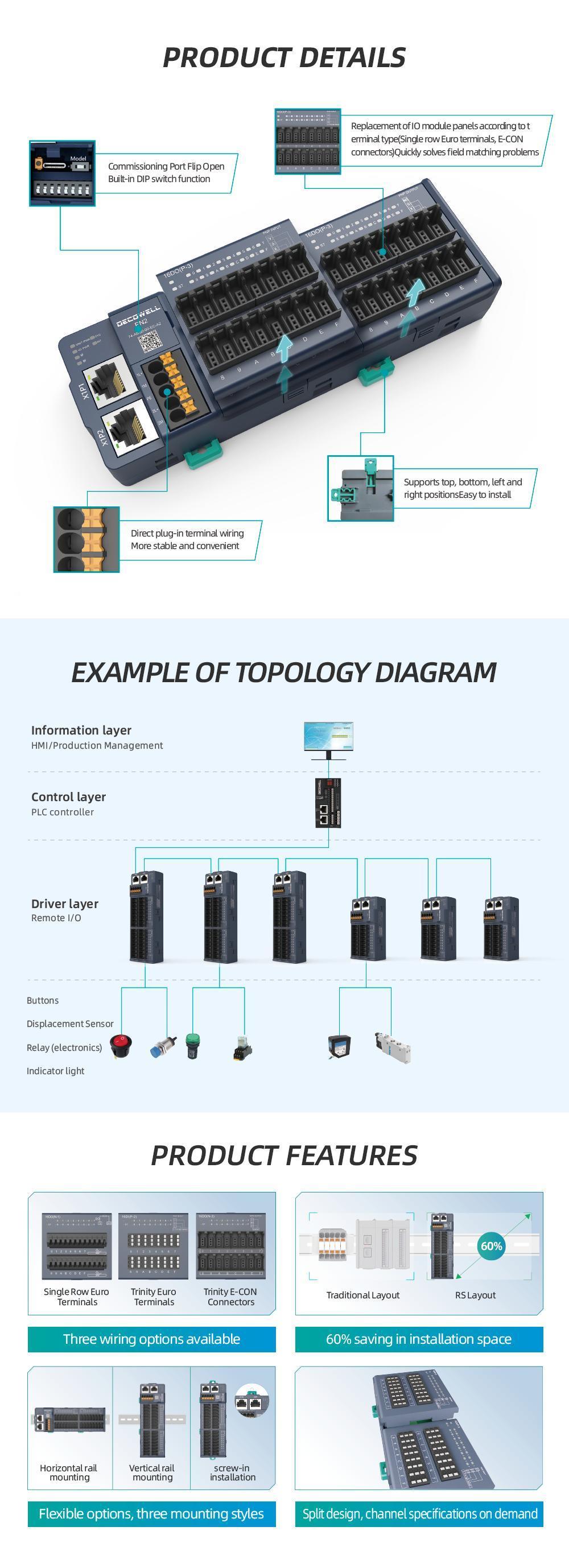

Detailed Photos

Company Profile

Certifications

Application Industry

Exhibition

Welcome to Nanjing Decowell Automation Co., Ltd, a national high-tech enterprise dedicated to technology development, production, sales, and service. As a leading automation service provider in China, we specialize in industrial bus solutions, with I/O modules at the core of our offerings. Our products are trusted across diverse industries, including 3C, new energy, logistics, food, pharmaceuticals, automotive, environmental protection, education, rail transportation, machine tools, metallurgy, and chemical sectors.

Recognized as a "National High-tech Enterprise," "Specialized and Special New Enterprise" in Jiangsu Province, and a "Nanjing Enterprise Technology Center," we actively contribute to the industry by participating in the formulation of national standards such as the "Data Spatial Integration Model of Automation System and Integrated Manufacturing Enterprise" and the "Classification and Coding of R&D Design Resources for Equipment Manufacturing Industry." With over 100 intellectual property rights and certifications including UL, CE, ETG, PI, and CLPA, our products are designed to meet the highest standards of quality and reliability.

Our comprehensive product range includes universal remote I/O modules, dedicated remote I/O modules, logic controllers, unmanaged switches, valve islands, and more, ensuring we can meet the unique needs of every customer.

Guided by our corporate vision of "becoming the world's leading provider of industrial digital products and solutions" and our core value of "Quality builds the brand, and service shapes the future," Decowell is committed to being an expert in industrial control signal processing, with I/O modules as our cornerstone.

Looking ahead, we will continue to innovate and deliver superior products and personalized support to customers worldwide, striving to meet the ever-evolving demands of the market. We look forward to forging new partnerships and writing the next chapter in industrial.
