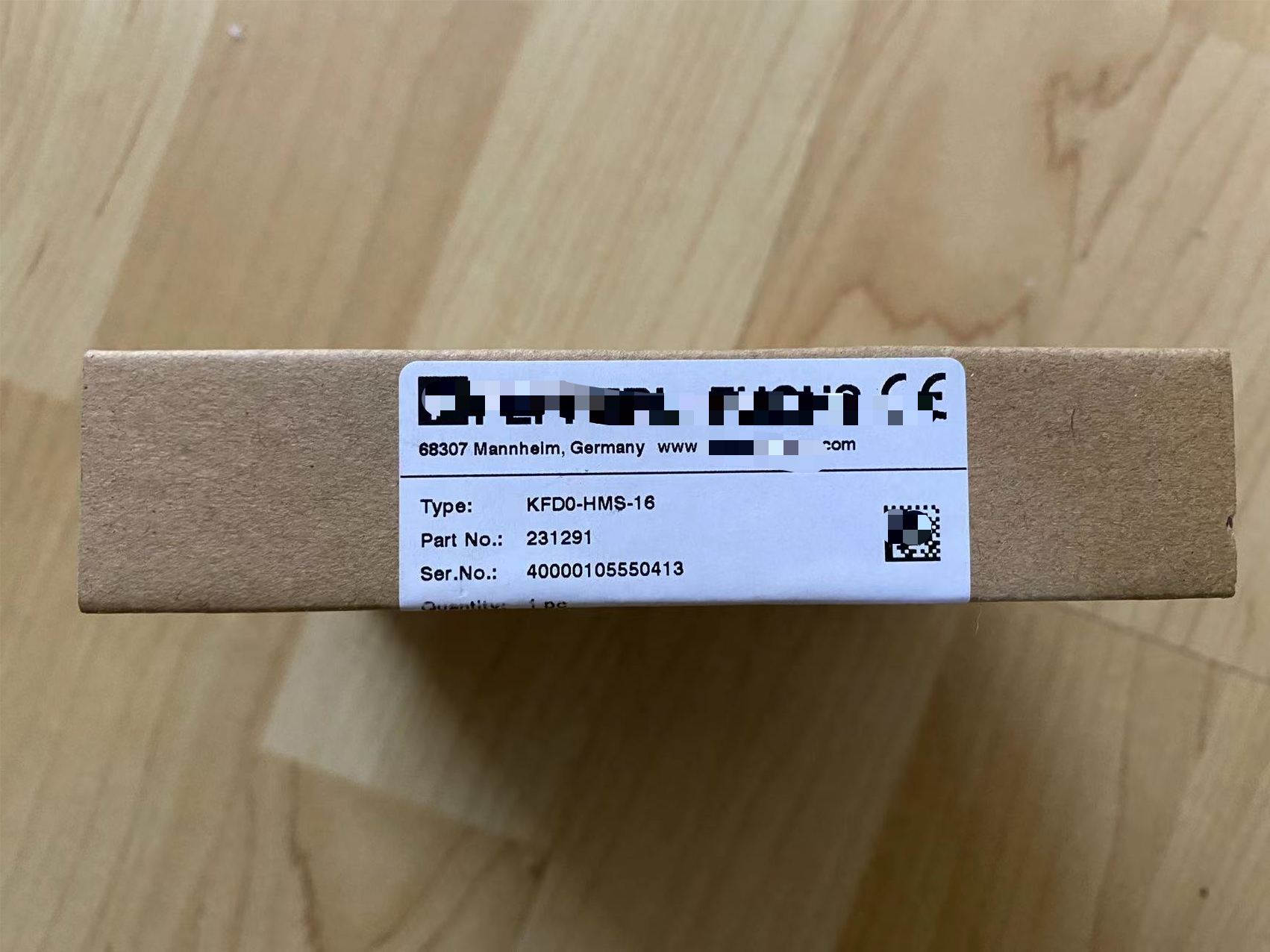

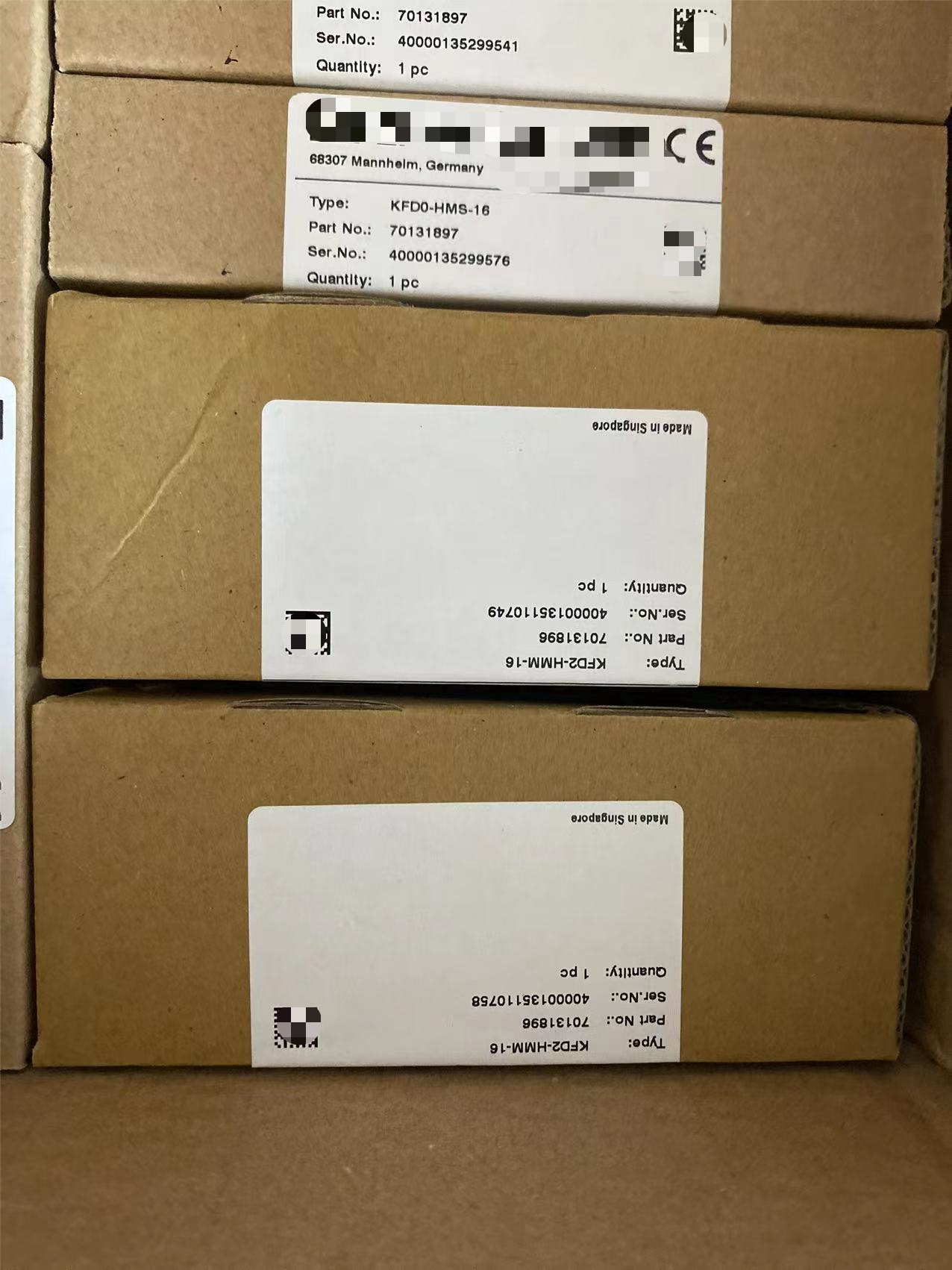

SIL 3 HART Multiplexer P+F Sensors Slave KFD0-HMS-16

Multiplexer Slave KFD0-HMS-16

16-channel, No external power required, HART field device input (revision 5 to 7), Used with HART Multiplexer Master KFD2-HMM-16, Up to SIL 3 acc. to IEC/EN 61508

Technical Data

Functional safety related parameters
Safety Integrity Level (SIL)		SIL 3
Supply
Connection		via 14-channel flat cable form master KFD2-HMM-16
HART signal channels (non-intrinsically safe)
Conformity		HART field device input (revision 5 to 7)
Connection		26-pin flat cable for analog connections 14-pin flat cable for master-slave connection between KFD2-HMM-16 and KFD0-HMS-16
Leakage current		< 3 µA at -20 ... 85 °C (-4 ... 185 °F)
Terminating resistor		external 230 ... 500 Ω standard (up to 1000 Ω possible)
Output voltage		≥ 400 mV ss (with the terminator resistance specified above)
Output resistance		100 Ω or smaller, capacitive coupling
Input impedance		according to HART specification
Input voltage range		0.08 ... 4 V ss ; typ. ± 5.2 V as local reference
Indicators/settings
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Degree of protection		IEC 60529:2001
Ambient conditions
Ambient temperature		-20 ... 65 °C (-4 ... 149 °F)
Mechanical specifications
Degree of protection		IP20
Mass		approx. 100 g
Dimensions		20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inch) (W x H x D) , housing type B1
	Height	93 mm
	Width	20 mm
	Depth	115 mm
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
Certificate		PF 07 CERT 1143 X
	Marking	II 3G Ex nA IIC T4 Gc
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
