10.1-inch 1000nits Device Control Panel 1920 * 1200 TFT Display Screen LVDS Interface

Tianxianwei TXW100072B0-KT has IK08 impact resistance and a surface hardness of up to 7H. There are multiple functional options for glass surface treatment, such as antibacterial, waterproof, anti fingerprint, anti glare, and anti reflection. We can customize according to the specific requirements of the customer. The size of the cover glass can be customized according to the customer's application. To achieve dust prevention, we will apply 3M VHB on the steps on the back of the glass, which can completely prevent dust from entering the user's device. In the design of this product, we also carried out anti-static treatment. Through contact static electricity testing, the static electricity level of the product/user device reaches 8KV, and through air static electricity testing, it reaches 10KV. Another application option is that the product can have a perfect touch effect, whether bare handed or wearing plastic gloves.

The Tianxianwei TXW100072B0-KT is currently being used by customers with a brightness of 1000 nits. Meanwhile, we can customize the brightness to meet the needs of users in different environments.

This product is widely used in fields such as drone flight control, industrial equipment control panels, industrial instruments and meters, medical equipment, and smart parking.

Product Quick Details

1. LCD Size: 10.1” inch TFT
2. Resolution: 1920*1200
3. Viewing Angle: Free, All viewing angles
4. Outline Dimension: 247.56(W) ×166.20(H) ×6.36(T)mm
5. LCM Interface Type: LVDS 8 BIT Interface

6. CTP Interface Type: I2C
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)

Specification

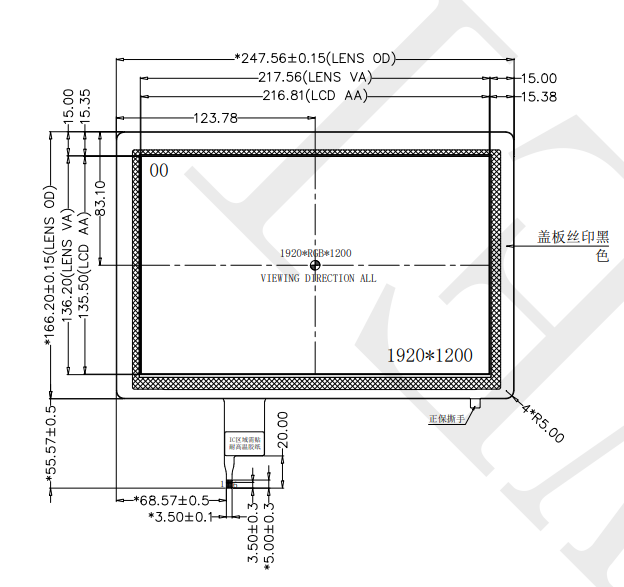

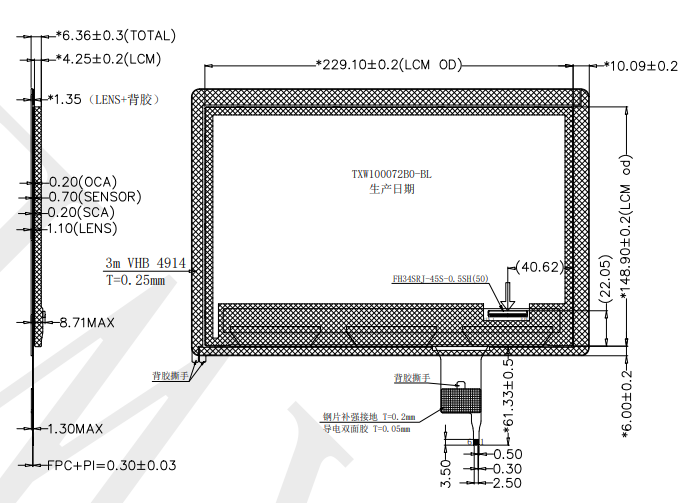

TFT LCD Module 10.1" inch 1920*1200 LVDS interface IPS with CTP Product Drawing

Absolute Maximum Rating

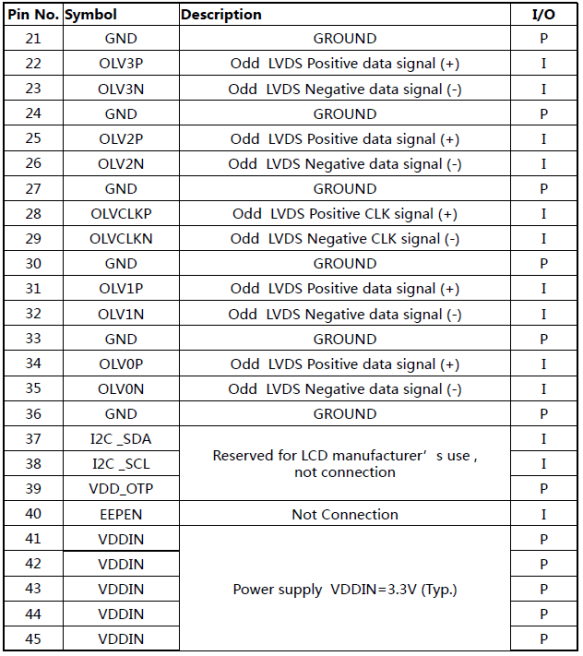

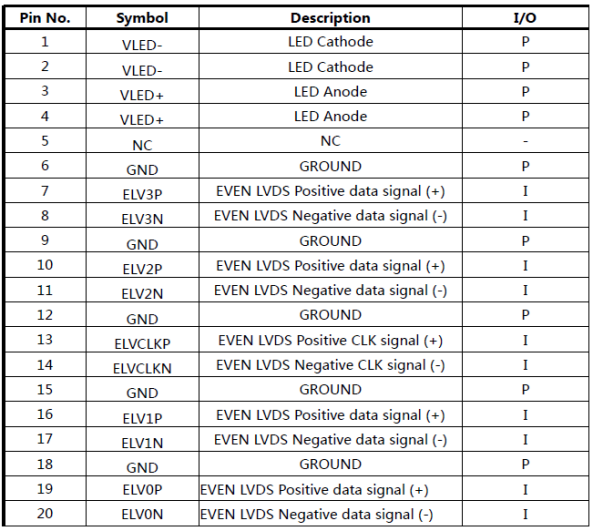

LCM Functional

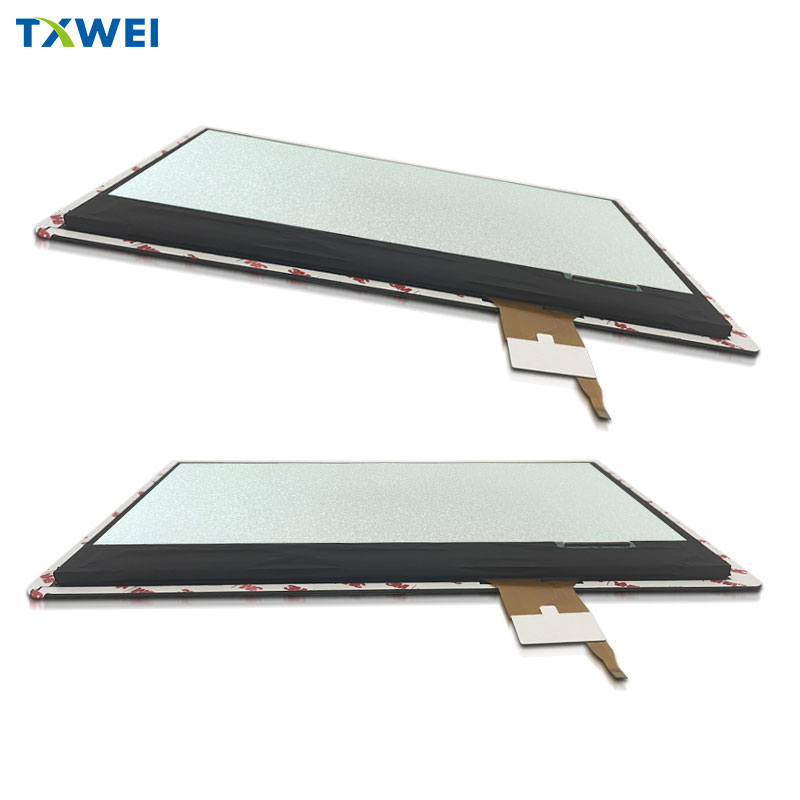

TFT LCD Module 10.1" inch 1920*1200 LVDS interface IPS with CTP Product Image
