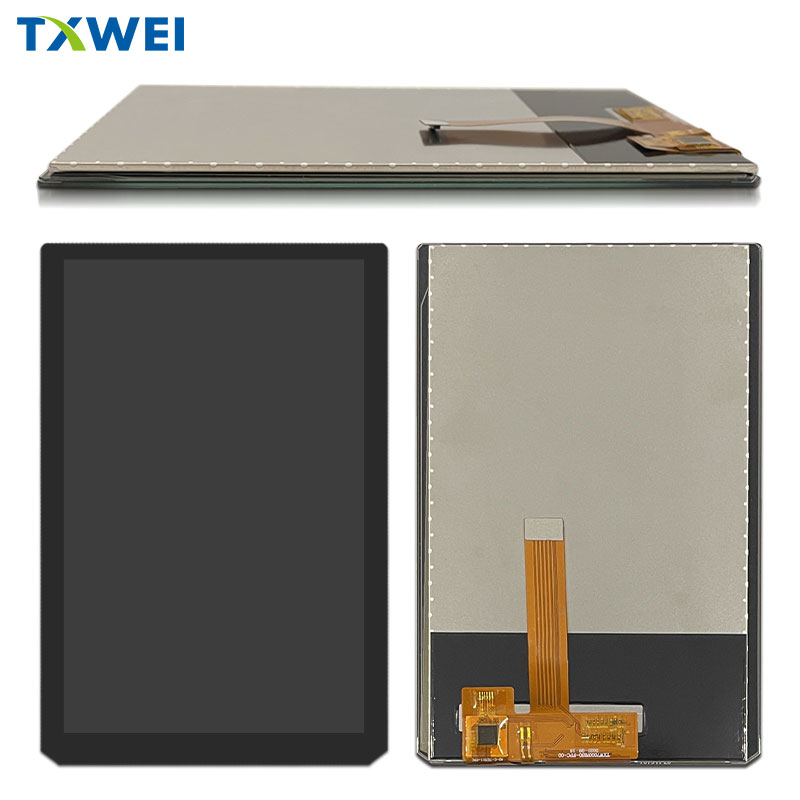

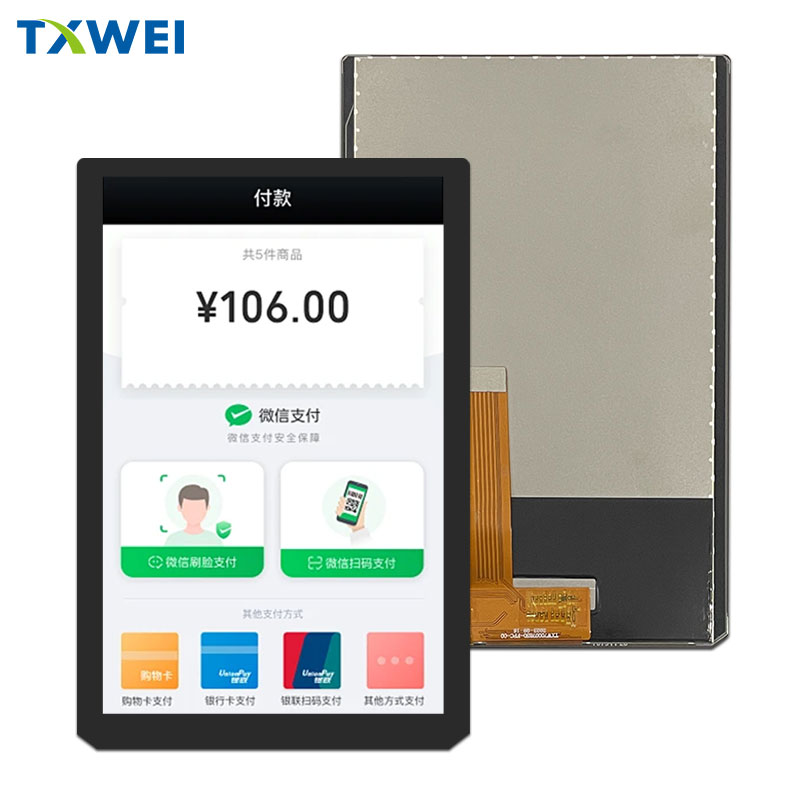

7 Inch High Brightness 1100nits TFT LCD Display FHD 800×1280 Dots MIPI Interface

7 Inch High Brightness 1100nits TFT LCD Display FHD 800×1280 Dots MIPI Interface

7 Inch High Brightness 1100nits TFT LCD Display FHD 800×1280 Dots MIPI Interface
7 Inch High Brightness 1100nits TFT LCD Display FHD 800×1280 Dots MIPI Interface
Categories 7 Inch LCD Module
Brand Name: TXWEI
Model Number: TXW700078S0-CTP
Place of Origin: Guangdong,China
Certification: CE ROHS FCC
MOQ: negotiate
Price: negotiate
Packaging Details: cardboard
Delivery Time: 16
Payment Terms: L/C TT D/P
Supply Ability: 10000pcs
Lcm pin n count: 39Pin
Number of pixels: 800*3RGB(H)X1280(V)
Lumens degrees: 1100cd/m²
Active area: 94.2(H) * 150.72(V)
Pixel Pitch (W*H): 0.11775(H) *0.11775(V)
LCM interface: MIPI Interface
Mechanical OutlineSize(W*H*T): 108.1*164.2*4.45mm
Contact Now
Company Info.
Shenzhen Tianxianwei Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

7 Inch High Brightness 1100nits TFT LCD Display FHD 800×1280 Dots MIPI Interface

1100nits TFT LCD Display

,

FHD TFT LCD Display

,

mipi Interface TFT LCD Display


About this item TXW700078S0-CTP


Overview


Our 7-inch High Brightness TFT LCD display is designed to deliver superior visual performance in challenging lighting conditions. With an impressive brightness of 1100 nits and a full HD resolution of 800*1280 dots, this display is perfect for applications requiring clarity and vibrancy. Its MIPI (Mobile Industry Processor Interface) interface ensures high-speed data transfer and optimal image quality, making it suitable for various industrial, commercial, and consumer applications.

Key Features

  • High Brightness: At 1100 nits, this display is exceptionally bright, making it ideal for use in outdoor environments or well-lit indoor spaces. It ensures excellent visibility even in direct sunlight.
  • Full HD Resolution: With a resolution of 800*1280 pixels, this display provides sharp images and detailed visuals, enhancing the overall user experience.
  • MIPI Interface: The MIPI interface allows for high-speed data transmission with low power consumption. It supports a variety of devices, ensuring versatile compatibility.
  • Wide Viewing Angles: The display offers wide viewing angles (typically 160° horizontal and vertical), allowing for clear visibility from various positions without color distortion.
  • Color Performance: With a high color gamut and excellent color reproduction, the display is capable of displaying vibrant, true-to-life images, making it suitable for multimedia applications.
  • Durability: Designed for robustness, the TFT LCD is built to withstand various environmental conditions. It is resistant to impact and can operate effectively in challenging settings.
  • Easy Integration: The compact form factor and standard interfaces make it easy to integrate the display into existing systems, ensuring a seamless installation process.

Application scenarios

This product is widely used in fields such as drone remote controllers, payment terminals, industrial security, instrumentation, medical equipment, handheld PDAs, etc.

Conclusion

The 7-inch High Brightness TFT LCD display combines cutting-edge technology, high performance, and versatility, making it an excellent choice for a wide range of applications. Whether used in outdoor environments or industrial settings, this display guarantees visibility and reliability, enhancing user experience and satisfaction.


Features


ParameterSpecificationUnitRemark
Outline Size

108.1*164.2*4.45

mmFOG
Active Area

94.2(H) * 150.72(V)

mmNote 1.1
Brightness

1100

cd/m²-
Number of Pixels

800*3RGB(H)X1280(V)

pixels-
Pixel Pitch

0.11775(H) *0.11775(V)

MM-

Touch screen structure

G+G

--

Touch Driver IC

GT911

--

Touch Interface

IIC

Color Gamut70%(Min.), 75% (Typ.)CF @C Light
Display ModeNormally Black--
Viewing Direction85/85/85/85 (Typ.) 80/80/80/80 (Min.)Deg.CR>=10

Lcm pin n count

39

PIN

-
interface

MIPI Interface

--

LCM Driver IC

ILI9881C



Note : H: horizontal length, V: vertical length.

Note : Compatible ICs for this product include ILI9881C, Touch Driver IC GT911 Please contact IC manufacturer and vetify it when you choose any one of them. The information we suppose about IC just for reference.

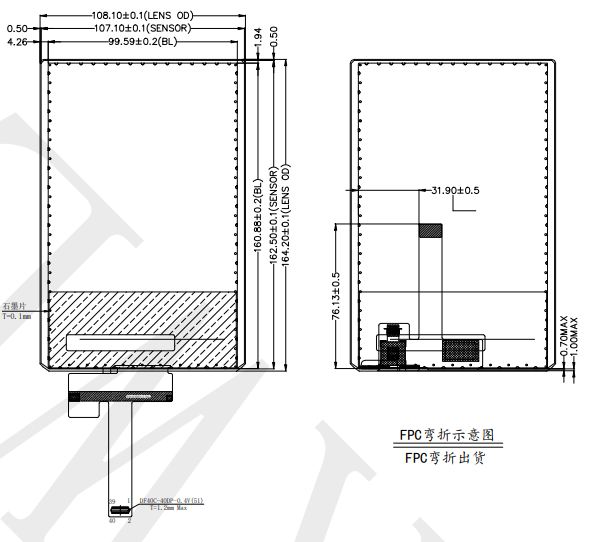

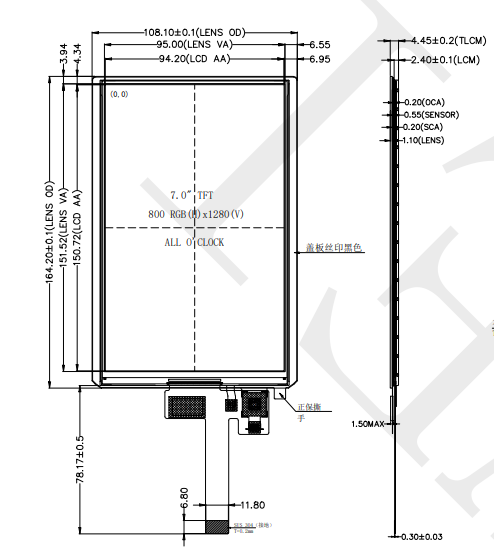

Mechanical Drawing




Absolute Maximum Rating


CharacteristicsSymbolMin.Max.Unit
LCM Operating TemperatureTopr-20+60°C
LCM Storage TemperatureTstg-30+70°C
TP Operating Temperature & Humidity (20% ~ 90%RH)Topr-20+60°C
TP SStorage Temperature & Humidity (20% ~ 90%RH)Tstg-30+70°C
HumidityRH--90%

Back-Light Unit Characeristics


CharacteristicsSymbolMin.TypeMax.UnitNotes
Forward VoltageVF28--30V--
Forward currentIF--80--mA--
Luminance(With LCD+CTP)Lv--950--cd/m²--
LED life timeN/A--20,000--Hr--

Note: (1) The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.


Module Function Description


No.SymbolLCM FunctionalNo.SymbolLCM Functional
1-2GNDPower Ground20MIPI_D1+MIPI-DSI Data differential signal input pins
3CTP_RST 1.8VTouch panel reset21LEDKPower supply for backlight cathode input terminal.
4LCD-RESETReset pin. Setting either pin low initializes the LSI22GND+Power Ground
5CTP_INT 1.8VTouch panel interrupt output23LEDKPower supply for backlight cathode input terminal.
6TEFrame head pulse for tearing effect24MIPI_CLK-MIPI-DSI CLOCK differential signal input pins
7CTP_SDA 1.8VTouch panel I2C data25LEDKPower supply for backlight cathode input terminal.
8LCD-IDID read PIN for ID circuit.26MIPI_CLK+MIPI-DSI CLOCK differential signal input pins
9CTP_SCL 1.8VTouch panel I2C clock27-28GNDPower Ground
10GNDPower Ground29PWMPWM (Pulse Width Modulation) Signal Of LED Driving.
11CTP_VCC 3.3VTouch panel Power supply 2.8~3.3V30MIPI_D2-MIPI-DSI Data differential signal input pins
12MIPI_D0-MIPI-DSI Data differential signal input pins31LCD-VDDIO/1.8Vpower supply for the I/O circuit
13GNDPower Ground32MIPI_D2+MIPI-DSI Data differential signal input pins
14MIPI_D0+MIPI-DSI Data differential signal input pins33-34GNDPower Ground
15LEDAPower supply for backlight anode input terminal.35VSPExternal input voltage(4.8V~6V)
16GNDPower Ground36MIPI_D3-MIPI-DSI Data differential signal input pins
17LEDAPower supply for backlight anode input terminal.37VSNExternal input voltage(-4.8V~-6V)
18MIPI_D1-MIPI-DSI Data differential signal input pins38MIPI_D3+MIPI-DSI Data differential signal input pin
19GNDPower Ground39-40GNDPower Ground

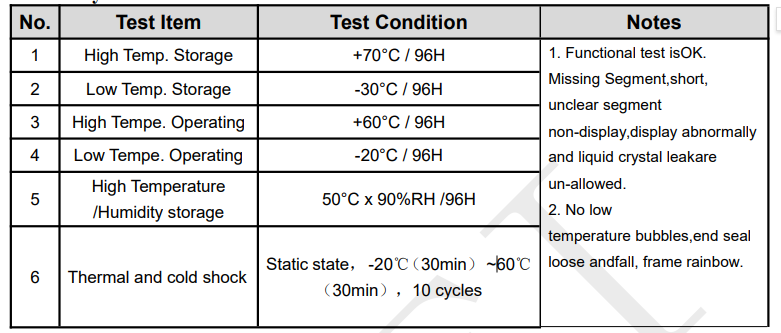

Reliability Test Item
