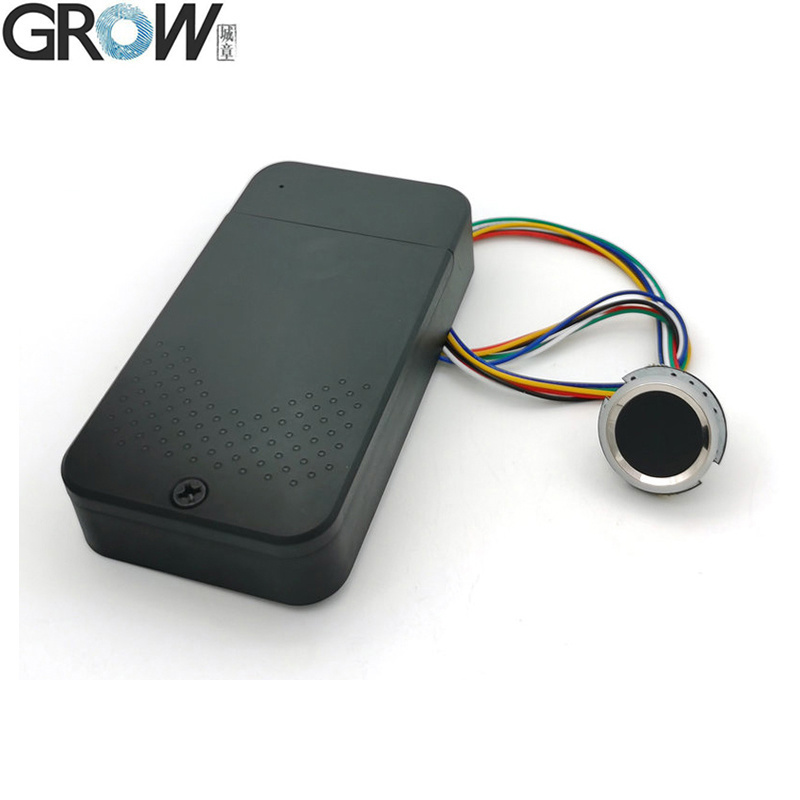

Grow K236-A+R502-A DC6V 4*AAA Fingerprint Control Board with Battery Case

K236-A Technical Parameters

*K236-A fingerprint control board, using battery box and circuit board integrated and low power consumption design.
*The power supply is 4*AAA battery.
*Have administrator and user fingerprint function.
*Two output modes can be selected, suitable for electronic lock body, relay and other equipment.
*K236-A can be used with R502, R502A, R502AW, R503 fingerprint module.

·Power supply: DC 6V (4*AAA Battery)
·Control Board Stand by current: <7uA
·Fingerprint capacity:
Administrator fingerprint: 20 pieces
User fingerprint: 60 pieces
·Output: DC5-6V, 300mA
·Size:87*47.1*16.5mm

K236-A Operation Instruction

1.Register Administrator Fingerprint:Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously.If no need for adding fingerprint, waitinga few seconds to exit.
2.Register User Fingerprint:Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint.Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.

3.Delete User Fingerprint:Press the administrator fingerprint until the red indicator light flash fast and hear"Di",move away the finger,the red indicator light flash slowly,press finger again,hear"Di-Di-Di"and music,means user fingerprints are deleted.

4.Back toFactory Default:Long press the SET button until hear "Di-Di-Di" beep and release the button,means initialization operation successful.

5.Mode Selection:set by the toggle switch:

[Right]:Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.

[Left]:Keeping output DC5V until removing the finger.

Note:
1.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2.In the "[Left]" mode,when need to register/delete user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until the blue/red indicator light flash fast and hear the music,then it can register/delete user fingerprint.
3.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.

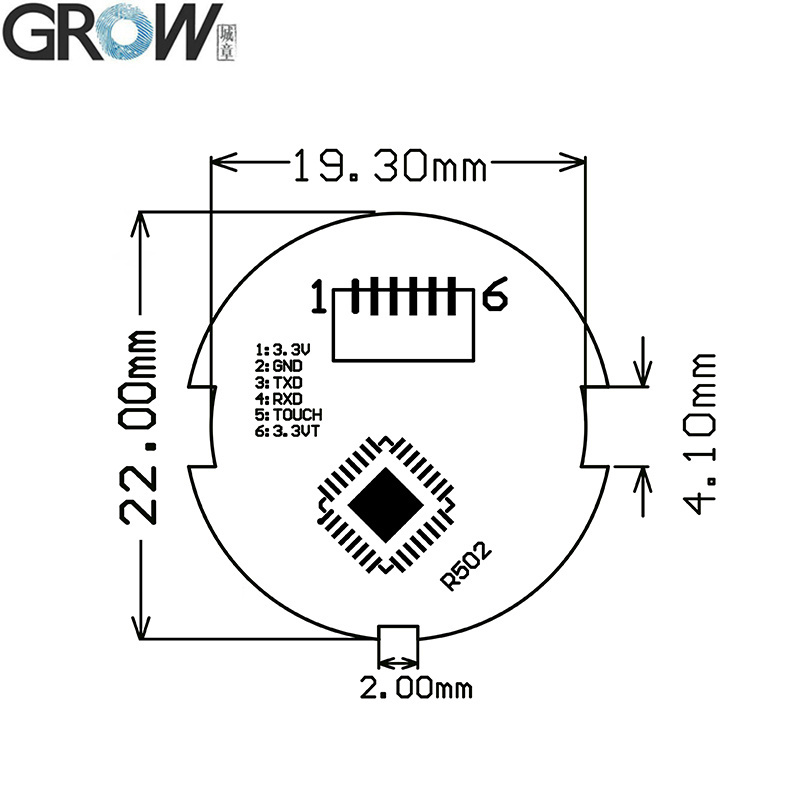

R502-A Specification

Model	R502-A
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 22 (mm)
Fingerprint module inner size	Diameter 19.3 (mm)
Fingerprint module height	5 (mm)(Except the connector)
Effective collection area	Diameter 15.5 (mm)
Connector	MX1.0-6Pin
LED Control	YES

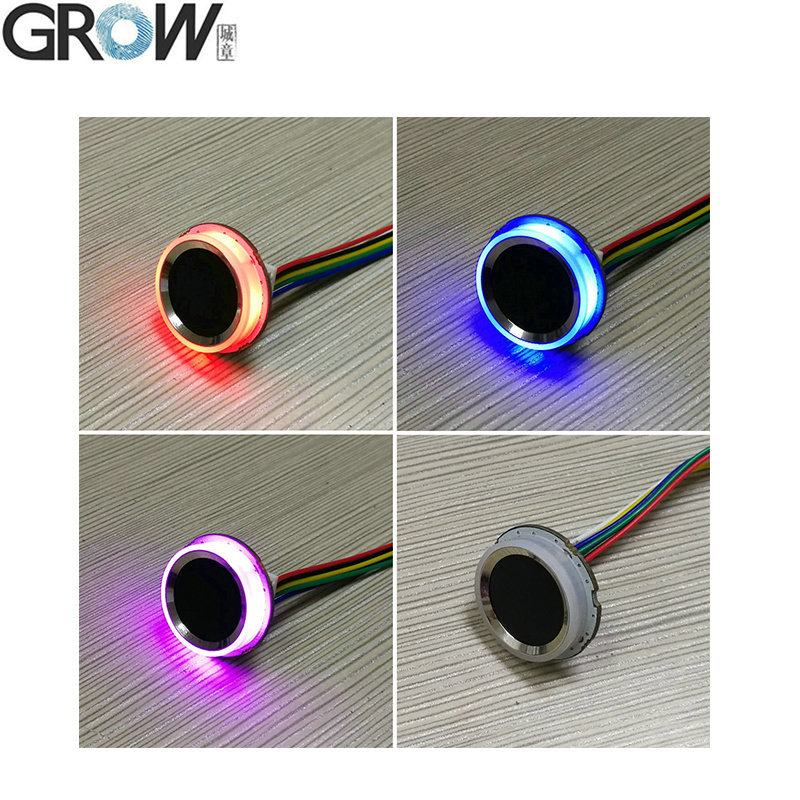

LED Color	Purple and Blue and Red
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files:
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

If need SDK files,pls contact us.
