3.54 Inch 800x640 Round TFT Display SPI TFT Display 1000 Cd/M2 With 3SPI+18Bit RGB Interface

3.54 Inch 800x640 Round TFT Display SPI TFT Display 1000 Cd/M2 With 3SPI+18Bit RGB Interface

Introducing the 3.54-inch TFT LCD display, a compact yet high-performance solution for modern applications. Featuring a sleek, space-saving design, this round display combines exceptional visual quality with a resolution of 800x640 pixels, delivering crisp, vibrant imagery in a full-view format. Its slim profile and vivid color reproduction make it an ideal choice for a wide range of electronic devices.

This 3.54 inch round display is perfect for dashboards, smart home systems, industrial machinery, and other equipment requiring reliable and visually appealing flat panel displays. This display excels in environments where space is limited but image clarity and visual impact are critical.

General Data

Product Name	3.54 inch Lamp-shape display
Number of Pixel	800x640
Interface	3SPI+18 Bit RGB
Luminance(cd/m2)	1000cd/m2
Active area	90x72mm
LCM (W x H x D)	97.6*83.79*4.0 mm
Viewing Direction(eye)	ALL/IPS
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

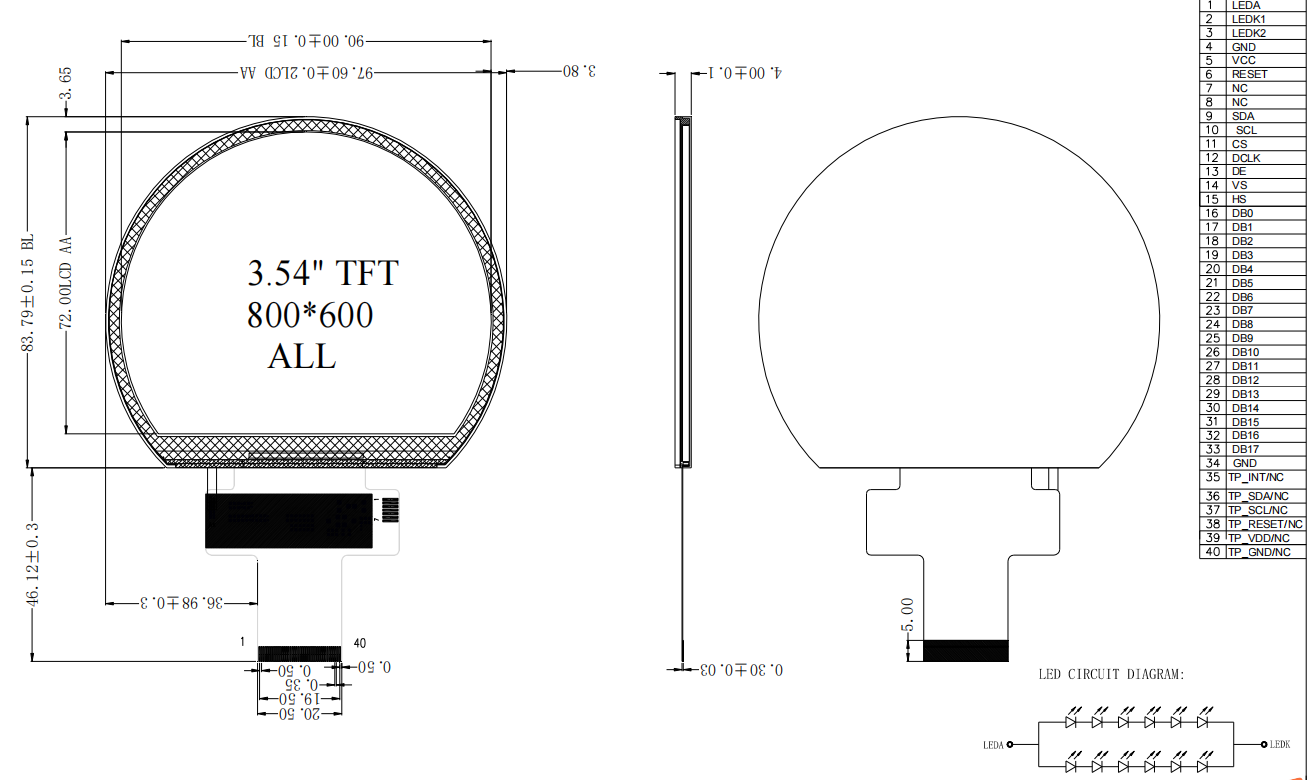

Drawing

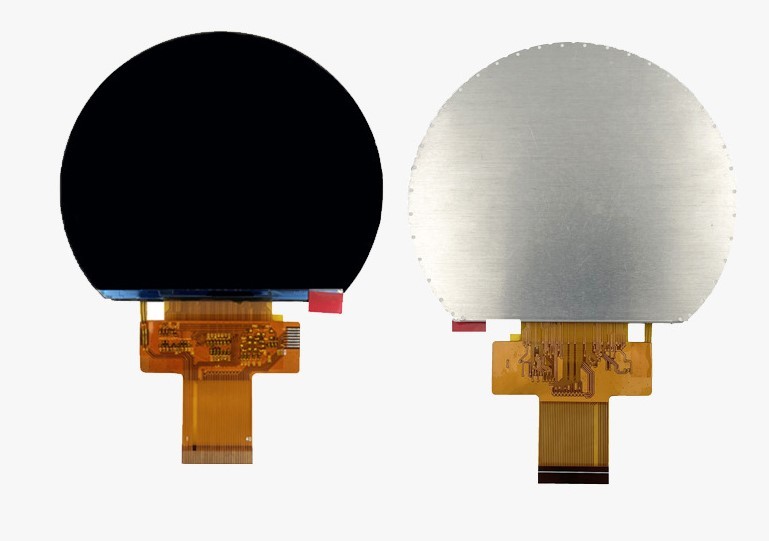

Product Details

TFT Applications:

Product Applications
1,Handheld devices
2,Car GPS
3,POS device
4,Smart Home
5,Remote Control device
6,Gauge
7,E-Bike
8,ADAS
9,Automotive displays
