| Categories | Mini LCD Module |
|---|---|
| Brand Name: | AISON |
| Model Number: | Z0085QC01 |
| Certification: | ISO9001 / ISO14000/ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal, Western Union, D/A, D/P, L/C |
| Supply Ability: | 300k/month |
| Delivery Time: | 7 days |
| Packaging Details: | Carton/Blister Package |
| Name: | 0.85 inch Mini TFT Display |
| Resolution: | 128x128 |
| Outline dimension: | 17.58*20.82*1.5mm |
| Active area: | 15.21*15.21mm |
| Interface: | 4 Wire SPI |
| Brightness: | 300cd/m2 |
| Display mode: | Normally Black |
| Operating temperatures: | -20 to 70 degree |
| Storage temperatures: | -30 to 80 degree |
| Driver IC: | GC9107 |
| Company Info. |
| Aison Technology (HK) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
0.85 inch 128x128 Square TFT Display with Drive IC GC9107 4-wire SPI Interface
The Z0085QC01 is a compact 0.85-inch IPS TFT LCD module designed to deliver vibrant and high-quality color displays. Produced by Aison Technology, this module features a resolution of 128x128 RGB pixels on a sleek black background, providing an engaging visual experience. With a typical brightness of 300 cd/m², it ensures excellent visibility under various lighting conditions. The module is powered by the GC9107 driver IC and supports the 4-wire SPI interface, ensuring reliable and efficient performance.
One of the standout features of the Z0085QC01 is its compatibility with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This versatility makes it ideal for numerous applications such as embedded systems, industrial devices, wearable technology, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, and handheld devices.
To streamline integration, the module's Flexible Printed Circuit (FPC) is designed for direct soldering onto your PCB. This eliminates the need for additional connectors, ensuring a secure and seamless connection while saving space and reducing complexity.
Aison Technology, the manufacturer of the Z0085QC01, offers extensive customization options to meet specific project requirements. These include tailored solutions such as customized FPC designs, integrated cover lenses, touchscreens, driver boards, and even customized demo kits upon request. This flexibility allows customers to obtain a display solution that perfectly aligns with their unique needs, preferences, and applications.
General Data
| Product: | 0.85 Inch square lcd module |
| Resolution: | 128x128 |
| Driver IC: | GC9107 |
| Active area: | 15.21*15.21mm |
| Outline Dimension: | 17.58*20.82*1.5mm |
| Surface Luminance: | 300 cd/m2 |
| Interface: | 4-wire SPI |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Connection: | Soldering |

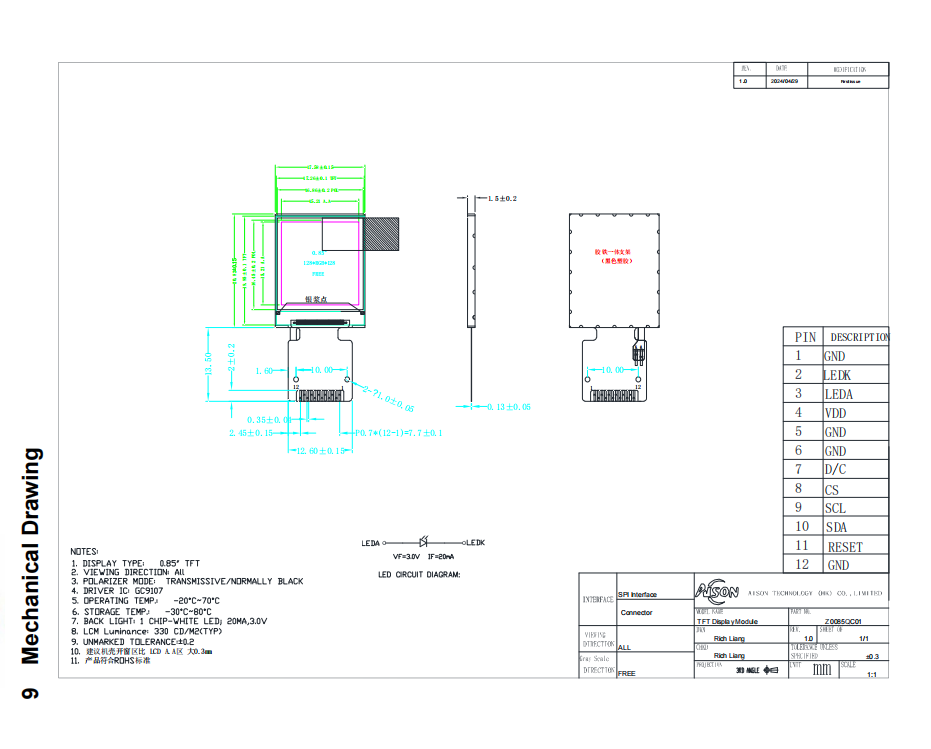

Drawing
Product Details
|
