| Categories | TFT Resistive Touch Screen |
|---|---|
| Brand Name: | AISON |
| Model Number: | Z050WV20-T |
| Certification: | ISO9001 / ISO14000/ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200k/month |
| Delivery Time: | 7 working days |
| Packaging Details: | Blister Package/Carton |
| Name: | 5 Inch Resistive Touch Display |
| Resolution: | 800x480 |
| Outline dimension: | 120.7*76.3*4.4mm |
| Active area: | 108 x 64.80 mm |
| Interface: | RGB |
| Brightness: | 300 cd/m2 |
| Display mode: | Normally Black |
| Viewing Direction: | ALL/IPS |
| Operating temperatures: | -20 to 70 degree |
| Storage temperatures: | -30 to 80 degree |
| Company Info. |
| Aison Technology (HK) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

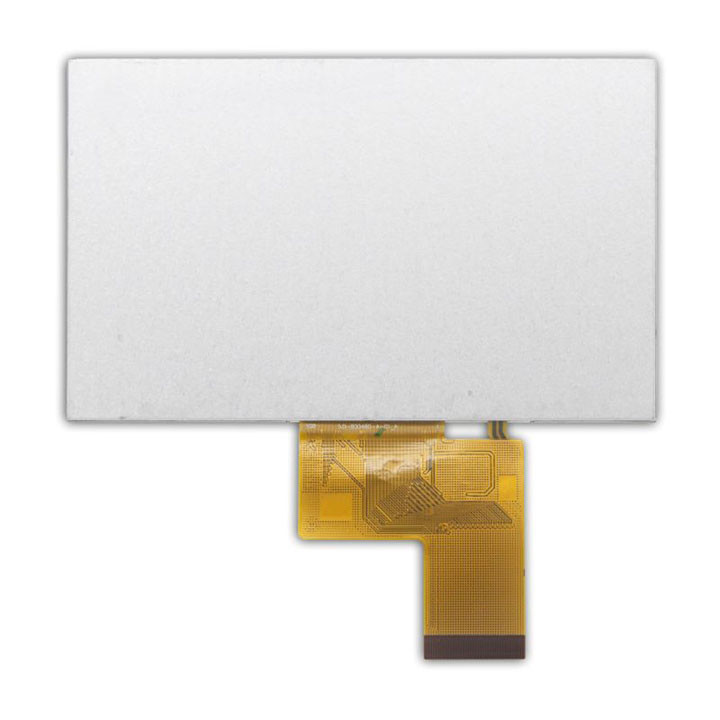

5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin
Introducing the Z050WV20-T, a compact and powerful 5.0-inch TFT LCD module designed to deliver exceptional display performance. This module seamlessly integrates a resistive touch panel, offering an intuitive and responsive user interface. With a resolution of 800x480 pixels and a 16:9 aspect ratio, it provides crisp and vibrant visuals on its sleek 5-inch TFT-LCD screen.
The Z050WV20-T features outline dimensions of 120.7 x 75.8 mm, with an active area of 108.0 x 64.80 mm, ensuring a space-efficient design ideal for integration into various electronic devices. Utilizing IPS display technology, this module offers wide viewing angles (left: 85 / right: 85 / up: 85 / down: 85 degrees), enhancing visibility from multiple perspectives.
Equipped with the advanced ST7262 IC and supporting a 24-bit RGB interface, the Z050WV20-T ensures seamless and high-quality image rendering. Its anti-glare surface reduces light reflection, making it suitable for diverse lighting conditions. With a brightness of 300 nits (typical) and a contrast ratio of 1000:1, this display excels in minimizing glare and reducing eye fatigue.
Designed for durability, the Z050WV20-T operates in a wide temperature range from -30℃ to +80℃, with storage temperatures between -35℃ and +85℃. The supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V, ensuring adaptability across different electronic systems. Whether for industrial applications, medical devices, or consumer electronics, the Z050WV20-T is a versatile and reliable display solution.
General Data
| Product Name | 5.0 inch IPS TFT Display with Resistive Touch |
| Number of Pixel | 800x480 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 300cd/m2 |
| Active area | 120.7*76.3*4.4mm |
| LCM (W x H x D) | 108x64.8 mm |
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -35 to 85 degree |
Drawing
Product Details
TFT Applications
This 5 inch TFT LCD module is the ideal choice for a range of applications, including dashcams, portable medical devices, measurement instruments, testing equipment, digital photo frames, and small entertainment systems.
|
