P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting

Categories Outdoor LED Display Module
Brand Name: VW
Model Number: P2.85
Certification: CE, EMC, LVD, ROHS, FCC
Place of Origin: CN
MOQ: Negotiate
Price: Negotiate
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 2000sqm/month
Delivery Time: 15 work days
Packaging Details: plywood case, carton box
Product Name: P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting
Pixel Pitch: 2.85mm
Module Weight: 1.54kg
Frame Weight: 0.68kg
IP Level:: IP67
Module Edge angle: 45°
Warranty: 2 year
Lifespan: 100000 hours
Maintenance: Front service
Cabinet Material: Die-casting aluminum
Company Info.
Visual World Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting

P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting


Product Description:

320x320mm Smart LED module / Modular Design / less weight, high protection, easy to installation / IP67 protection level, waterproof and anti-salt / Easy to assemble, install, and maintain / Signal and power cable all in one.


Product Quick Details

1. Diecasting aluminum

2. Front maintenance

3. Power box integration

4. Concave/convex wall

5. 2-in-1 transmission cable


TECHNICAL SPECIFICATIONS

Product Model:SMART BLOCK
Pixel Pitch:2.85 mm
LED Type:SMD1921
Pixel Density:62500 dots/sqm
Cabinet Size:320x320mm
Module Resolution:80*80
Module Weight:1.54 kg
Module+Frame Weight:2.22 kg
Module Material:Die-casting aluminum
Driving Type:1/16
Brightness:5000 nits
Max/Avg Power:800/280 W/m2
Maintenance:Front service
Environment:Outdoor Use
IP Rating:IP67
Refresh Rate:>3840 Hz
Installation Type:Mounting/Hanging
Gray Scale:16 bits
Viewing Angle:H:140°;V:140°
Operational Temp:-30℃~+60℃
Operational Humidity:10%~80% RH

FEATURES

Visual World SMART BLOCK series integrated led module is customized for indoor/outdoor use. High precision and waterproof modules, magnetic front access, 45°module edges to make concave/convex screen, synchronous transmission of power & signal, less messy cables, good heat dissipation. High brightness and excellent visual performance.

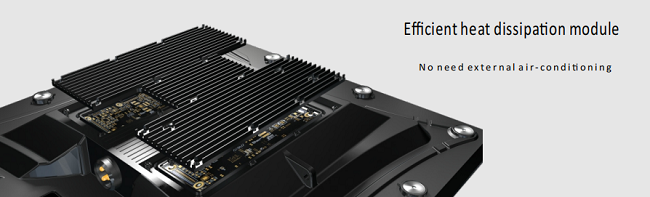

  • DIECASTING ALUMINUM

CNC die-casting aluminum frame, strong and durable. The heat sink design at the power box speeds up the heat dissipation.

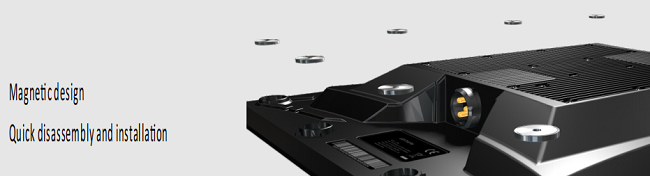

  • FRONT MAINTENANCE

Magnetic-led modules strongly connect to the module frame. A safety rope is optional to tighten the connection.

  • POWERBOX INTEGRATION

The power supply, receiving card, and hub are integrated into the 320x320mm module, making the module can be used as a single panel.

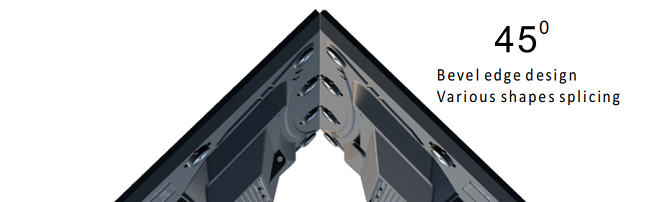

  • CONCURVED VIDEO WALL

The edges of the module are 45° beveled edge treatment. Which allows the module to build a 90°straight corner, concave/convex video wall.

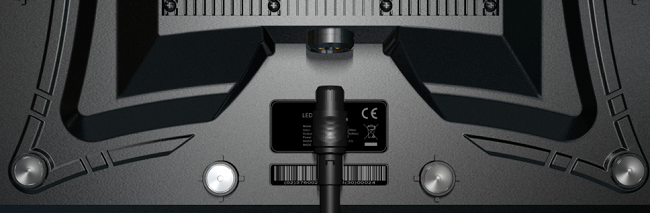

  • 2-in-1 TRANSMISSION CABLE

Customized 2 in 1 cable and waterproof connectors ensure simultaneous transmission of the power and signal.

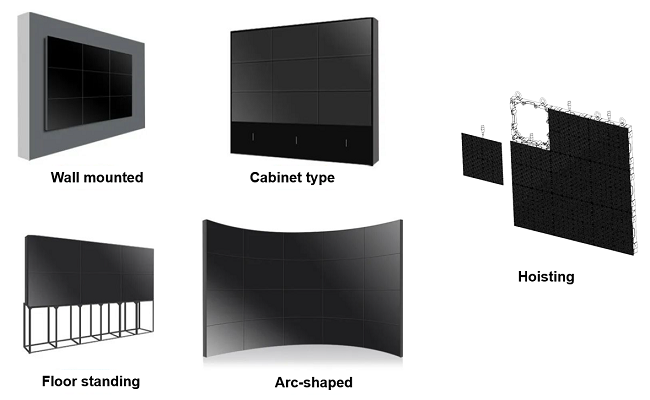

INSTALLATION METHOD

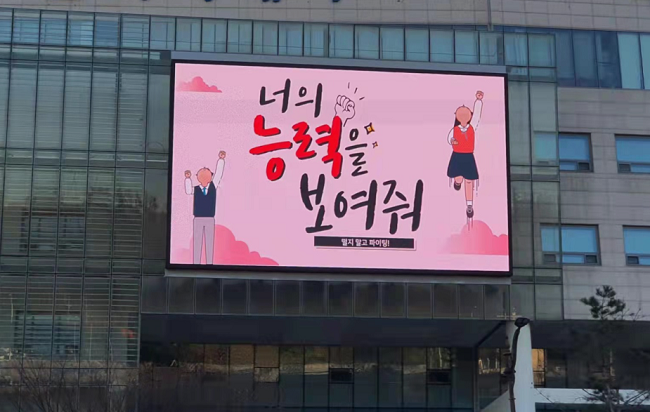

APPLICATION FIELD

  • Shop guide desk
  • Park entrance
  • Gallery showcase
  • Outlets storefront
  • Arc video wall


Service and support:

Pre-sale service:

  • Inquiries are answered within 24 hours.
  • Market research and forecasts.
  • Customized solutions based on customer needs.
  • Datasheets and samples were provided.
  • Additional services like custom packing and factory visits.

In-sale service:

  • Continuous monitoring of production.
  • Photos and videos of production upon request.
  • Free spare parts.

After-sale service:

  • Complaints were addressed within 24 hours.
  • Maintenance guidance and solutions within 48 hours.
  • 24-month warranty.
  • Free technician training.
  • Free documents: installation guide, software manual, maintenance guide, and control system software CD.

FAQ

Q1: Can you accept some sample orders?

A1: Yes, the sample order is acceptable for quality check and market test.


Q2: Does there have any warranty?

A2: A two-year warranty for all products.


Q3: What is the freight cost?

A3: The shipping cost depends on different weights. We will choose the cheapest and safest way according to your detailed quantities.


Q4: How does your factory do regarding quality control?

A4: Quality is a priority. Every product will be fully assembled and carefully tested before packing and shipping.


Q5: Can the product be customized with a logo?

A5: Surely it is. We accept logo customization, please inform and confirm the logo design details with our team before the production.
