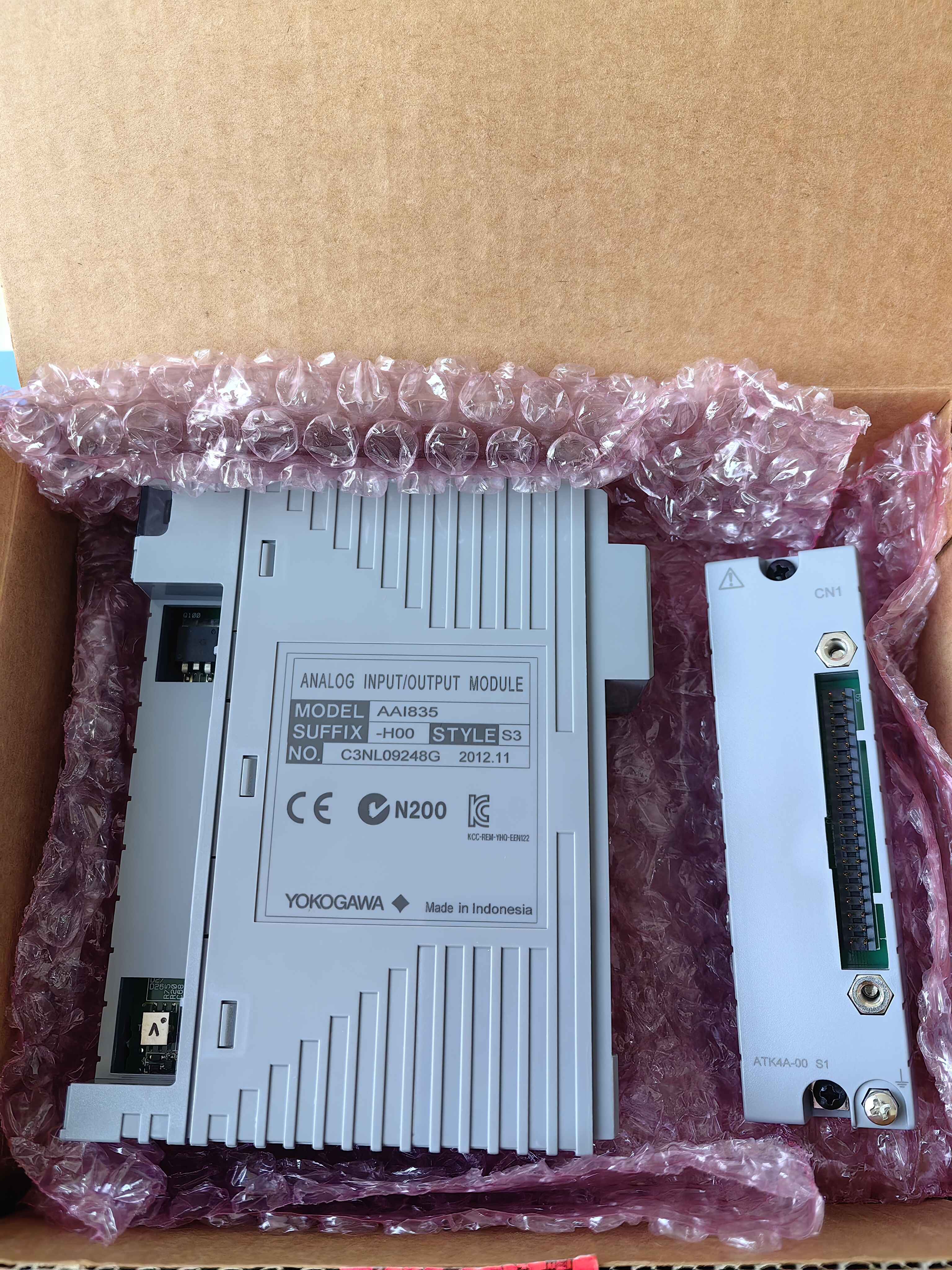

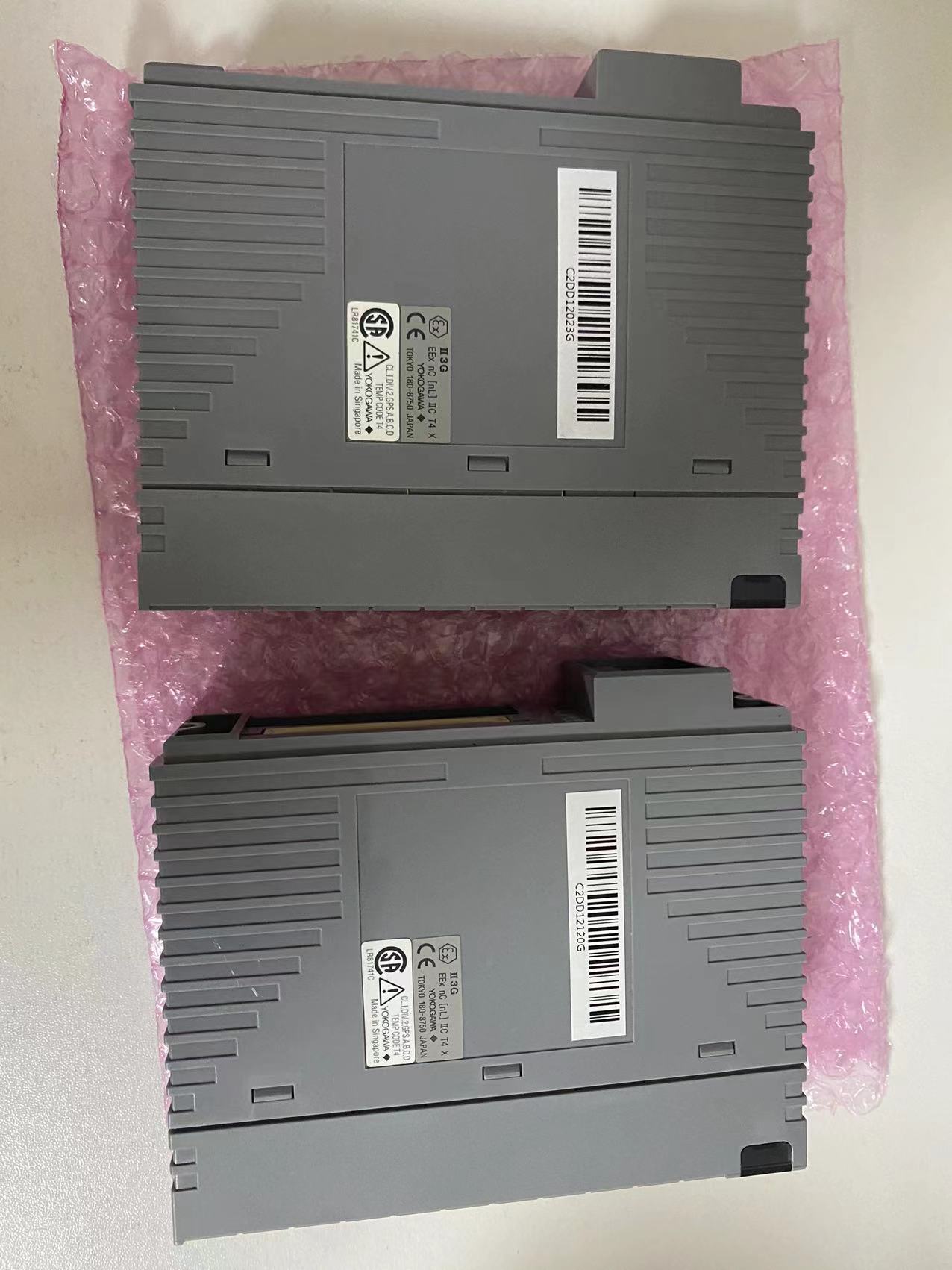

ODM Yokogawa EJA Pressure Transmitter Analog Input Output Module AAI835-H50/K4A00

AAI835-H50/K4A00 | Yokogawa | Analog I/O Module (Current I/O)

• Manufacturer : Yokogawa

• Product No. : AAI835-H50/K4A00

• Product Type : Analog I/O Module (Current I/O)

• AAI835 - Model : Analog I/O Module (4 to 20 mA, 4-channel input/4-channel output, Isolated channels)

• H - Suffix Codes : With digital communication (HART protocol)

• 5 - Suffix Codes : With no explosion protection

• 0 - Suffix codes : Basic type

• K4A00 - Option codes : With KS Cable Interface Adapter [Model: ATK4A-00]

• Number of I/O channels : 4-channel input/4-channel output, isolated channels

• I/O signal
  - Input: 4 to 20 mA
  - Output: 4 to 20 mA

• Allowable input current : 25 mA

• Withstanding voltage
  - Between input/output and system: 500 V AC, for 1 minute
  - Between input/output channels: 500 V AC, for 1 minute (*2)

• Input resistance
  - Power ON : 290 ? (at 20 mA) to 450 ? (at 4 mA) (*3)
  - Power OFF : 500 k? or larger

• Accuracy
  - Input: ±16 µA
  - Output: ±48 µA

• Weight : 0.2 kg

• Shipping Weight : 2 kg

Important terms:

1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Yokogawa & Singapore

4. Delivery lead time: In stock

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
