China Easy Operate Handheld Fiber Air Cooling Laser Welding Machine Handheld Welding Laser Machine

Categories Fiber Laser Welding Machine
Brand Name: Questt
Model Number: QA-LWF800A
Certification: ce
Place of Origin: CHINA
MOQ: 1
Payment Terms: T/T
Supply Ability: 100
Delivery Time: 15-20 WORDAYS
Packaging Details: Wooden case and carton case
Laser Source Brand: MAX LASER
Positioning Accuracy: 0.05mm
Welding Thickness: 0.2-3mm
Laser Type: Fiber
Single Gross Weight: 80.0 kg
Laser Power: 800W
Control: CNC system
Wavelength: 1070nm
Operation Method: Touch Control
Key Word: Fiber laser welder
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

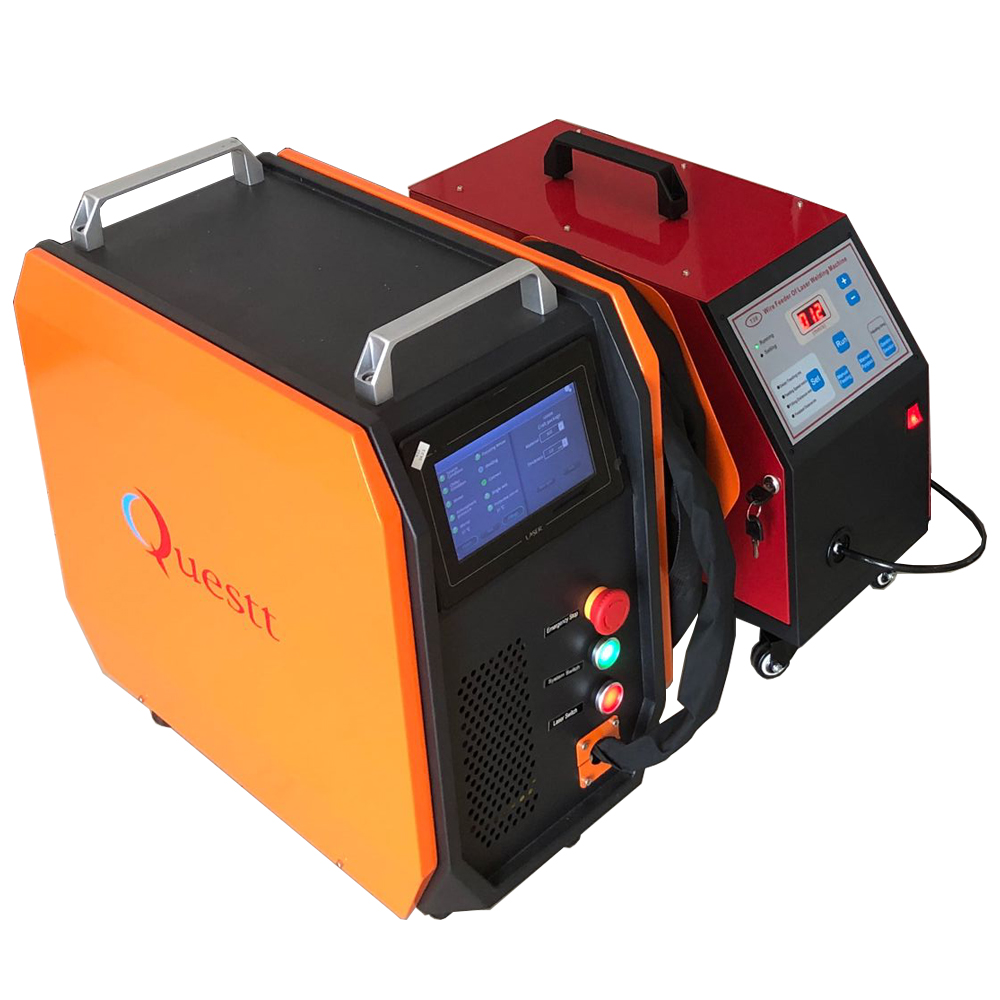

China Easy Operate Handheld Fiber Air Cooling Laser Welding Machine Handheld Welding Laser Machine

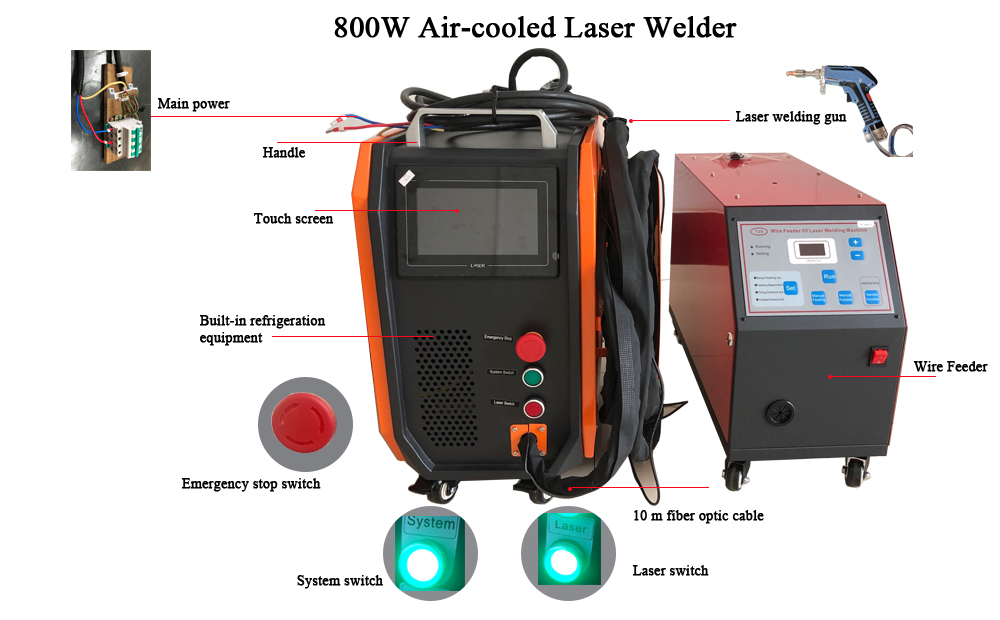

1.Wifi antenna interface

2. Communication interface

3. User interface

4. Power input port of the device

5. Safety lock interface

6. Hand-held welding joint

7. Output cable interface

8. Gas imports

9. Gas outlet

10. Feeder joint

Small Laser Welding Machine
Laser power: 1000w/1500W
Laser source brand: Max
Laser Cable Length: 10m
Cooling system: Air cooling
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect
Products Features

Higher Efficiency

Independent intellectual property rights 976nm high-efficiency energy-saving technology,high-brightness single-module laser technology. New air-cooled technology platform architecture,active refrigerant type heat dissipation.
More Portable
The weight and volume are better than water cooled hand-held laser welding machine, and the volume is about 1/4, the weight is about 1/3 of it. Extremely lightweight body, so that the application scene has nearly doubled, take it with you, plug and play (220V). The integrated body design conforms to ergonomics and improves the mobile reliability of the whole machine.
Better performance
In different materials and thickness, better welding effect, without distortion, undercut or burn-through.
The process is smooth and beautiful, deep penetration, small deformation, no need for subsequent processing.
QILIN laser welding head
Products parameters


oModelQA-LWF800AQA-LWF1200A
1Average power800w1200w
2Wavelength1064±10nm1064±10nm
3Power range1-100%1-100%
4Peak power800 W1.2KW
6Modulation frequency50KHZ50KHZ
7Delivery fiber length5/10±0.5m(Customization)5/10±0.5m(Customization)
8Input voltage220VAC/50HZ/60HZ220VAC/50HZ/60HZ
9Electricity consumption4.8KW6.8KW
11Dimension780X480X780(L*W* H)(mm)780X480X780(L*W* H)(mm)

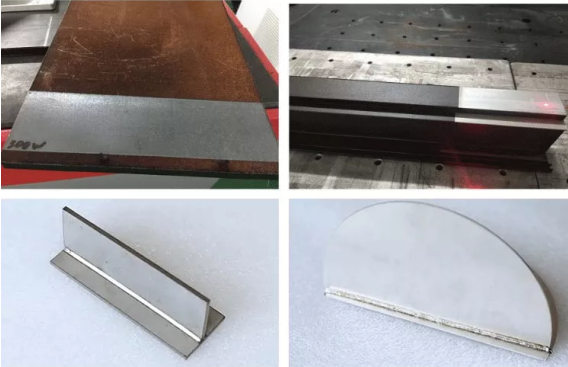

Products Samples
