Silicon Steel 0.35mm Oriented Electrical Steel B35G145 for Transformer Oriented Silicon Steel 35Q145 pot sales

Categories Grain Oriented Electrical Steel
Brand Name: BaoSteel
Model Number: Oriented silicon steel
Certification: AiSi
Place of Origin: China
MOQ: 1 ton
Price: Elaborate
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 250 tons/week
Delivery Time: 5-25days

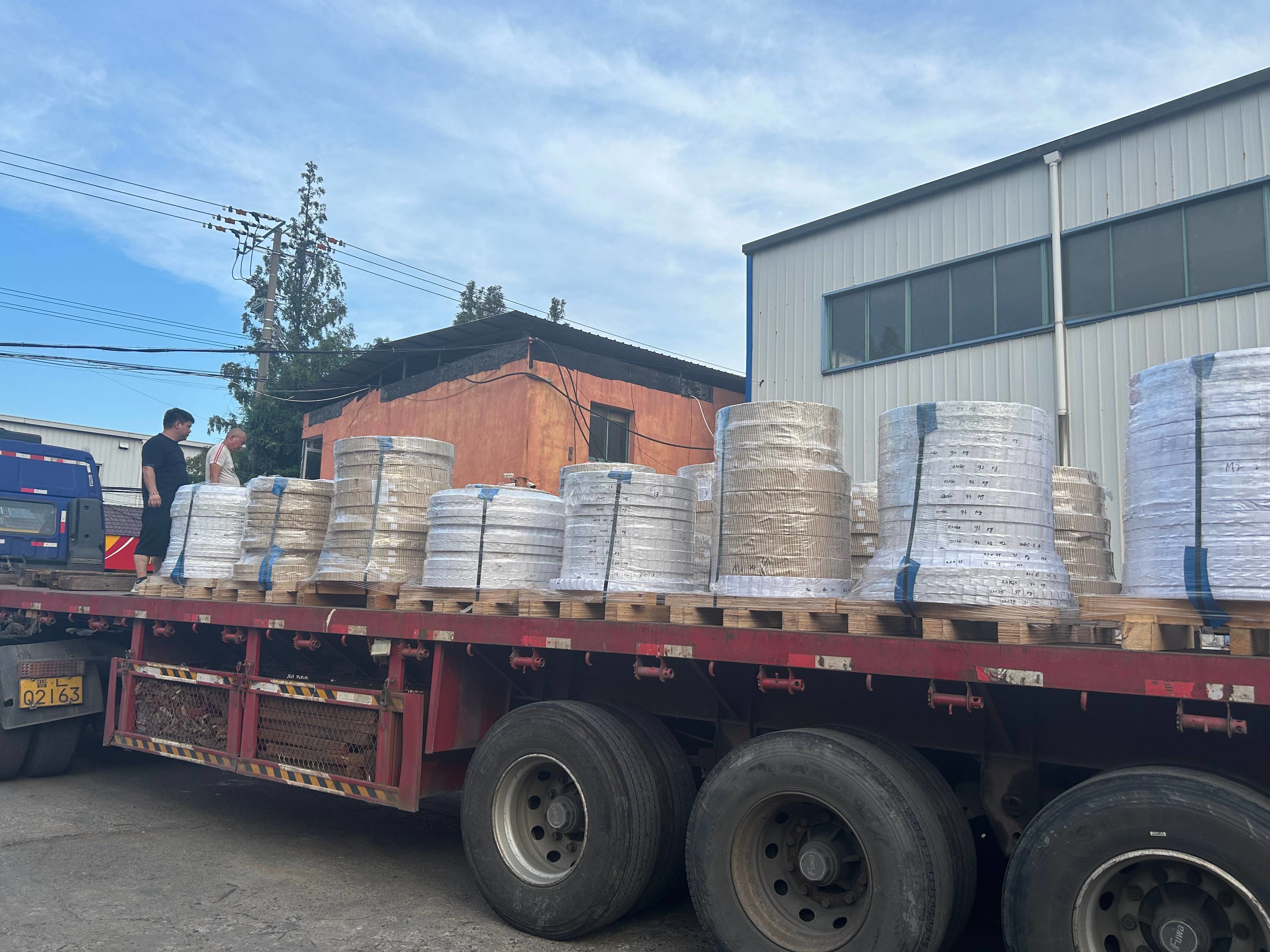

Packaging Details: Wooden pallets and container
Name: Silicon Coated Steel Coils
Technique: Hot Rolled
Surface Treatment: Coated
Silicon content: 0.5%-3.0%
Tickness: 0.35 - 0.65 mm
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Application: Motor/Brushless Motor
Package: Wooden
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Silicon Steel 0.35mm Oriented Electrical Steel B35G145 for Transformer Oriented Silicon Steel 35Q145 pot sales

Silicon Steel 0.35mm Oriented Electrical Steel B35G145 for Transformer Oriented Silicon Steel 35Q145 Spot Sales

Oriented electrical steel, also known as cold-rolled oriented silicon steel, refers to cold-rolled electrical steel containing 2.9% to 3.5% Si, and the crystal structure of the steel plate has certain rules and directions. Oriented electrical steel is an indispensable soft magnetic material in the power industry, mainly used in transformers, rectifiers, reactors and large motors and other industries.

2. APPLICATION:


VarietiesConventional typeHigh induction typeDomain refined high induction type
Large motors
Large transformers
Medium and small transformers
Distributing transformers
Voltage regulator
Reactor and magnetic amplifier
IF transformer
Mutual inductor
TV transformer
Radio transformer
Radio broadcast transformer

3.Standard dimensions of products:


Available thickness (mm)Available width range (mm)Inside diameter (mm)
0.23,0.27,0.30,0.35900~1200508

4.Dimensional and shape tolerances:


Width (mm)Thickness (mm)Thickness tolerance (mm)Longitudinal thickness tolerance (mm)Traverse thickness tolerance (mm)Width tolerance (mm)Flatness (%)Camber within 2m (mm)
900~12000.23±0.02≤0.03≤0.020~+2≤1.5≤1.0
0.27±0.03
0.30
0.35

5.Standard electromagnetic properties:


TypeGradeThickness (mm)Density (kg/dm3)Max. Core loss (W/kg)Min. Induction (T)
Conventional G typeB23G1100.237.651.101.80
B27G1200.277.651.201.80
B30G1200.307.651.201.80
B30G1301.301.80
B30G1401.401.80
B35G1350.357.651.351.80
B35G1451.451.80
B35G1551.551.80
High induction P typeB23P0850.237.650.851.87
B23P0900.901.87
B23P0950.951.87
B27P0900.277.650.901.88
B27P0950.951.88
B27P1001.001.88
B30P0950.307.650.951.88
B30P1001.001.88
B30P1051.051.88
B30P1201.201.88
B35P1150.357.651.151.88
B35P1251.251.88
B35P1351.351.88
Domain refined high induction R typeB23R0800.237.650.801.87
B23R0850.851.87
B23R0900.901.87
B27R0850.277.650.801.87
B27R0900.851.87
B27R0950.901.87

Note: a. Detecting basis GB/T3655-2008(G type and P types),GB/ T13789-2008(R type b. G type and P type test specimens are sheared to the rolling direction and annealed for stress relieving c. P17/50 means core loss of sample per kg at max. magnetic induction 1.7T and frequency 50Hz; d. B8 means magnetic induction corresponding to 800A/m magnetic field intensity.
