| Categories | 4K Projector |
|---|---|
| Brand Name: | SMX |
| Model Number: | MX-LK7200 |
| Certification: | ISO，CE，RoHS |
| Place of Origin: | China |
| MOQ: | 1Pc |
| Price: | 3620usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |
| Delivery Time: | 7-20 days |
| Packaging Details: | Carton Package |
| Product Name: | 7200 Lumen 4K Laser Projector |
| Brightness: | 7200 Lumen |
| Resolution: | 4K Enhancement |
| Display Technology: | 3LCD |
| Light Source: | Laser |
| Contrast: | 5000000:1 |
| Throw Ratio: | 1.2-2.0 |
| Lens Shift: | V:+0%~66% / H:±29% |
| Company Info. |
| Shenzhen SMX Display Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
7500 Lumen 4K Laser Projector Movie Projector For Large Home Theater
SMX MX-LK7200K Laser Projector is the brightest choice for large venue applications, featuring superior 7,200 ANSI-lumen brightness and a 5,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting.
4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing full HD image quality to give you unbelievable sharpness, clarity, and detail in all your presentations.
Flexible Installation with Optical Lens Shift
The wide lens shift range of these projectors provides exceptional
installation flexibility. Allowing you to position your projector
at any point in the room.
Specification
Model No. | MX-LK7200 | |
| Brightness | ||
| Brightness | 7200Lumen | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K Enhancement | |
| Light source Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+0%~66% / H:±29% | |
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) TBD | 38dB(Normal) / 30dB(ECO1) / 28dB(ECO2) |
| Uniformity | Uniformity-JBMA | 80% |
| AR | Aspect Ratio | Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI 2.1(IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini jack,3.5mm) | *1 | |
| Control | RJ45 | *1 (Control) |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Lifetime | 8000h | |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 435 | |
| Power Consumption (ECO)(Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Chinese |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| SW Setting | Voice control | Near-field RC voice |
| Bluetooth | Bluetooth Version 5.0 | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Box Dimensions (WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power Cord, Remote control | |
Applications

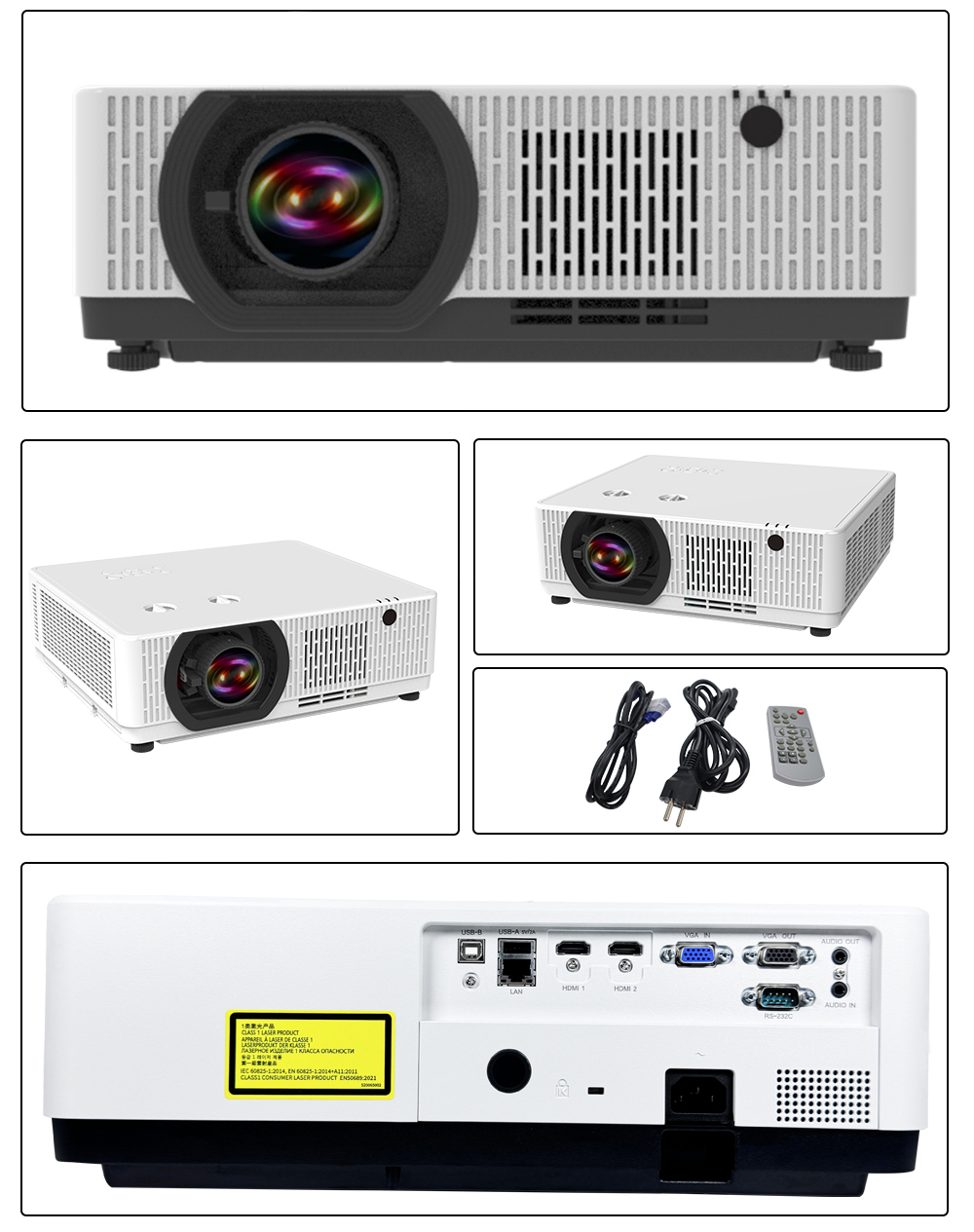

Product Photos
|
