RJ45 1X1 TAB-DOWN 21.3mm Plastic Shell Without LED light

Alinta RJ45 1X1 TAB-DOWN L=21.3mm Plastic Shell Without LED light

AL-111B0021WA1DDJ

Material:

Housing: PBT, UL94V-0, Black

Terminals Bracket: PBT, UL94V-0, Black

Terminal: Phosphor Bronze C5210, T=0.35mm, 6u" gold plating on contact area

Mechanical:

Durability: 750 cycles min.

Mating Force: 23N Max.

Operating Temperature: -40℃~+85℃

Storage Temerature: 40℃~+85℃

Product Profile:

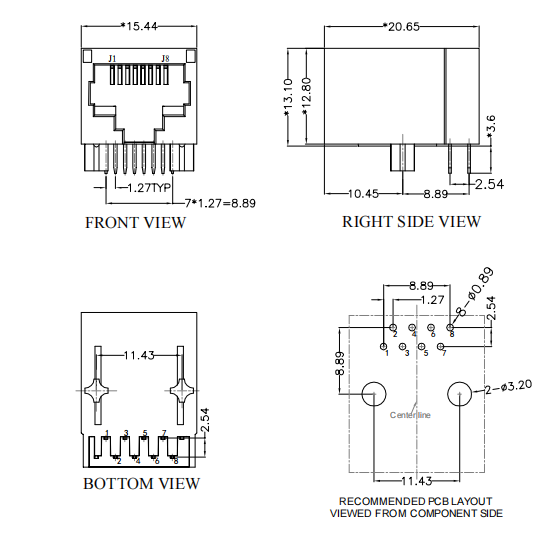

Dimension
