| Categories | On Grid Inverter |
|---|---|
| Place of Origin: | Hubei, China |
| Brand Name: | Grandglow |
| Model Number: | Grandglow TLC40000 |
| Packaging Details: | in Wooden case |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Price: | $1,449.00/pieces 1-49 pieces |
| Input Voltage: | 430V-850VDC |
| Output Voltage: | 230VAC / 400VAC |
| Output Current: | 60A MAX |
| Output Frequency: | 50Hz/60Hz |
| Output Type: | Triple |
| Size: | 550*850*260MM |
| Type: | DC/AC Inverters |
| Inverter Efficiency: | 99.5% |
| Certificate: | 3c, SAA,TUV, CE |
| Warranty: | 5 year, 5 Years/ 10years Optional |
| Weight: | 85KG |
| MPPT Tracking ways: | 1 |
| Protection Class: | IP65 |
| LCD: | LCD SCREEN |
| Protection styles: | islanding(IEEE1547), Over/under voltage and frequency,overloading |
| MPPT Effection: | 99.90% |
| power factor: | 99.9% |
| Protect Function: | over voltage, short circult, heating, over load |
| Rated power: | 40000 |
| Port: | Shanghai |
INPUT VOLTAGE: 850VDC MAX
OUTPUT VOLTAGE: 220VAC / 230VAC / 240VAC/380VAC/400VAC CAN DO ACCORDING TO DIFFERENT COUNTRIES AND REGIONS
FREQUENCY: 50 / 60HZ
PV PANEL: 250W *80pcs
MPPT TRACK WAYS: 1
MPPT EFFECTION RATE: 99.90%
PROTECTION CLASS: IP65
TURN ON/ TURN OFF VOLTAGE: 200/300VDC
SPECIFICATION

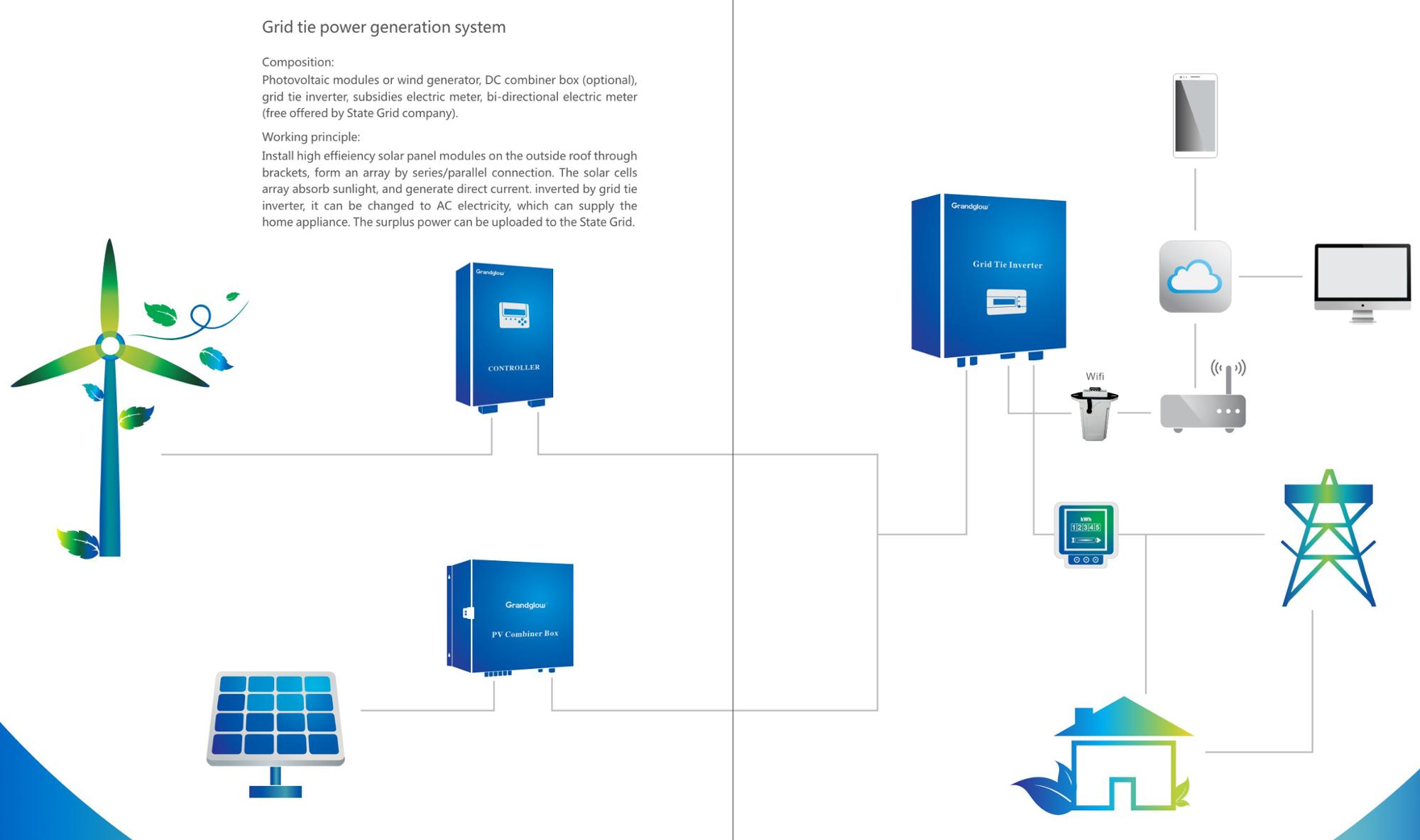

WORKING DIAGRAM
