| Categories | Signal Jammer Module |
|---|---|
| Brand Name: | flysafe |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C |
| Frequency: | Customized |
| Work Temperature: | -40~+85 ℃ |
| Max Output Power: | 30 W |
| Work Voltage: | 24-28 V |
| Max Gain: | 45 dB |
| Flatness: | ±1 dB |
| Max Current: | 4 A |
| Output VSWR: | ≤1.5 |
| Output Connector: | SMA/F 50Ω |
| Power Amplifier Efficiency: | 45（when Max Output） |
| Switch Control: | 0V off /0.6 on |
| Standing Wave Protection: | OK |
| Temperature Protection: | 75 ℃ |

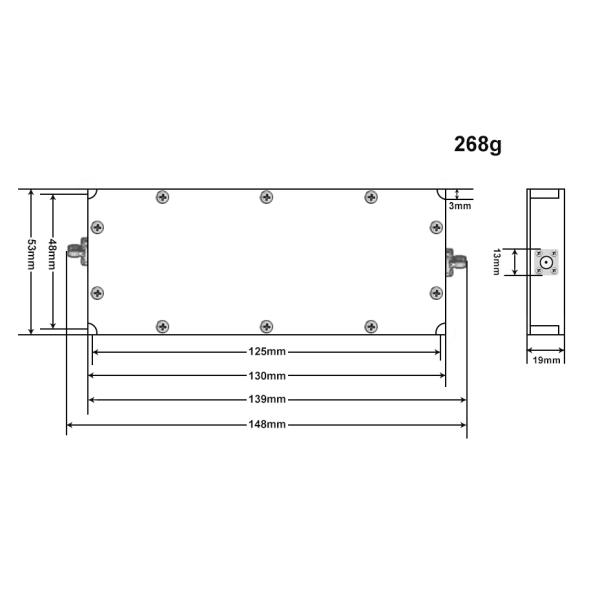

| Size: | 139*53*19 mm |
| Weight: | 0.268 Kg |
| Company Info. |
| Shenzhen Baohong intelligent manufacturing Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| Frequency | Customized |
| Work Temperature | -40~+85 ℃ |
| Max Output Power | 30 W |
| Work Voltage | 24-28 V |
| Max Gain | 45 dB |
| Flatness | ±1 dB |
| Max Current | 4 A |
| Output VSWR | ≤1.5 |
| Output Connector | SMA/F 50Ω |
| Power Amplifier Efficiency | 45(when Max Output) |
| Switch Control | 0V off /0.6 on |
| Standing Wave Protection | OK |
| Temperature Protection | 75 ℃ |
| Size | 139*53*19 mm |
| Weight | 0.268 Kg |

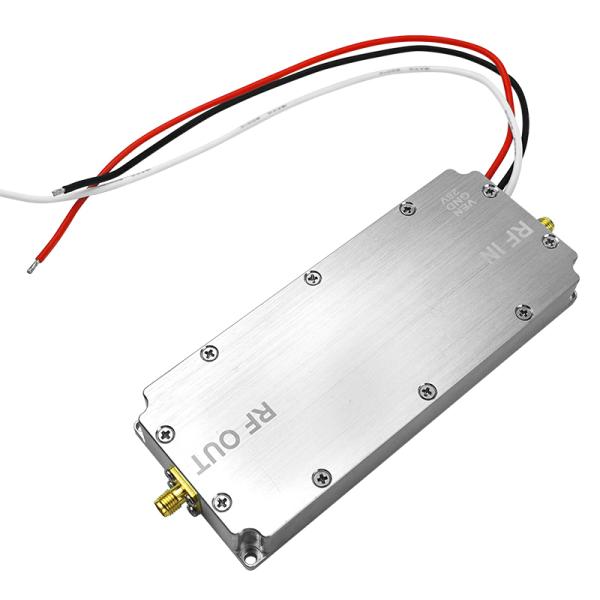

The 30 Watt RF Power Amplifier Module is used to amplify RF signals in a variety of applications including communications, radar systems, and RF testing. The module has a maximum RF output power of 30 watts. It can operate under certain environmental conditions such as temperature and humidity. It supports a wide frequency range and can accommodate a variety of RF signals. It has a small form factor and is easy to integrate into different systems.
|
