Brand Name: | Sunshineopto |
Model Number: | SUN-SL80-3030-75x140 |
Certification: | SGS,ROHS |
Place of Origin: | Shenzhen,China |
MOQ: | 1 |
Payment Terms: | T/T,PAYPAL,Western Union,Money Gram |
Supply Ability: | 5000pcs/months |
Delivery Time: | 3-4 working days |
Packaging Details: | Cartons |
Product name: | Replace Metal Halide with 50w LED Street Light Retrofit Kits with SMD 3030 LED Module |
Model No.: | SUN-SL80-3030-75x140 |
Angle: | 75x140degree |
Lens dimension: | 234x70x6.9mm |
Lens Material: | Optical grade PC |
LED CHIP: | 3030 SMD LED, 150-160lm/w 150mA,6v |
PCB size: | 219.8x53.8x1.5mm |
PCB Circuit: | 8 series 10 parallel |
Company Info. |
Sunshine Opto-electronics Enterprise Co.,ltd |
Verified Supplier |
View Contact Details |
Product List |
Product Feature:
1.We can according your require to design new Lens & Board.
2. This SKD 80 LED Array lens with PCB Module with PH3030 leds is
best design power lamps like 50W for per module.
3. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Specifications:
1, Product Name | 50w SMD 3030 Led Module , Street Light Module For Street Lamp |
2, Model No | SUN-SL80-3030-75x140 |

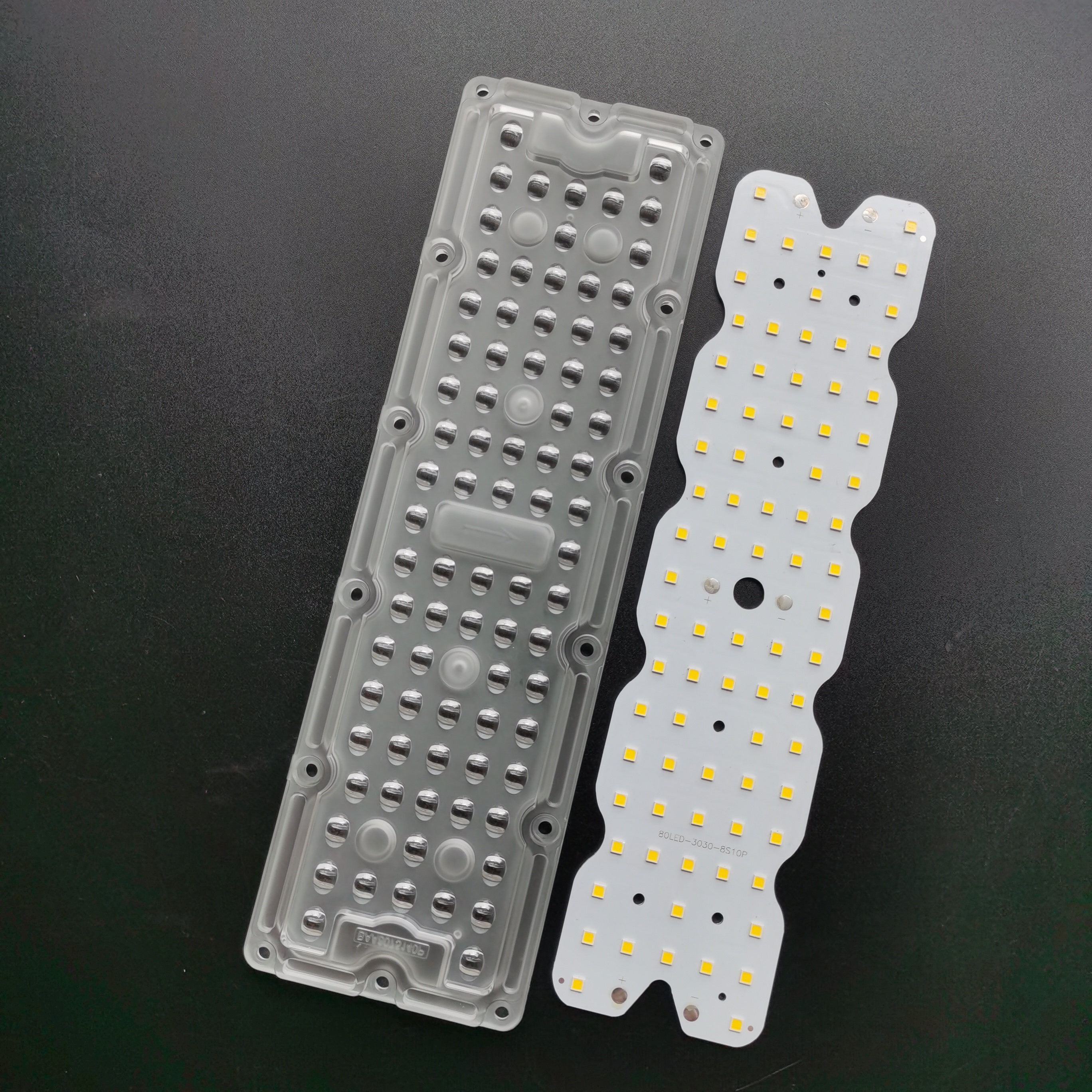

3, Main parts | Array lens , silicon gasket+PCB+LED+HEAT SINK |
4, Lens Material | PC |

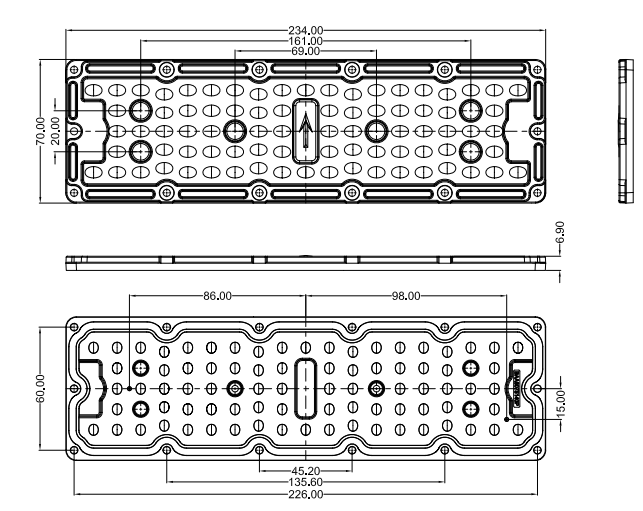

5, Lens size | 234X70x6.9MM |
6, Transmittance | 91% |
7,LEDS | 3030 SMD LED, 140-150lm 150mA,6v |
8,PCB Size | 219.8x53.8x1.5mm |
9. PCB Circuit | 8 series 10 parallel |
10, Sample | 3-4 work day |
11, Delivery | 5-7 work days for 10000 sets |

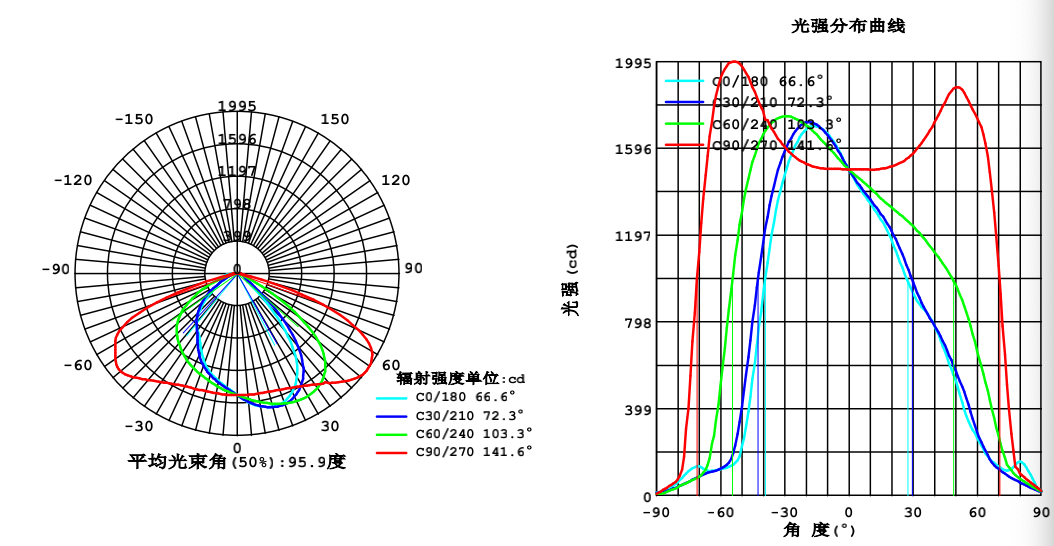

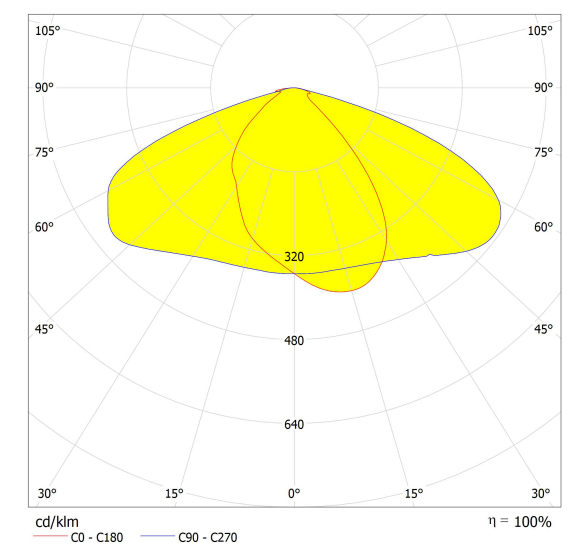

12, Angle | 30/60/90/60x90/75x140degree |
13, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
14, Main market | Europe, South America,North America, Asia |

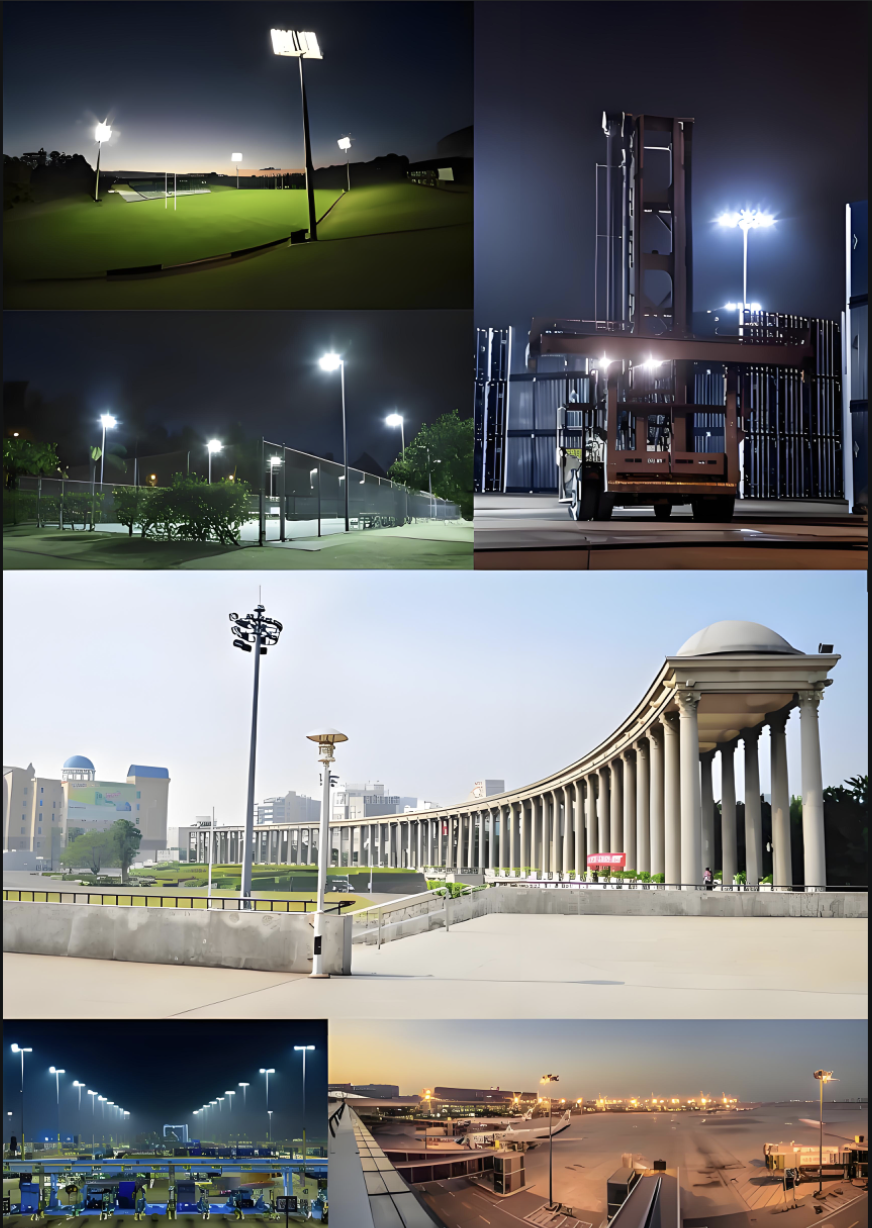

Applications:
It is used in the street light ,high way led lamp,tunnel lamp
,square lamp,road lamp, city lighting, parking spot lamp, track
lighting fixtures ,scenery area ,retail lighting and other
applications where high luminous flux is desired.
![]() |
