| Categories | Small TFT Display |
|---|---|
| Brand Name: | RGH |
| Model Number: | RT096019I |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3PICS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Size: | 0.96 inch |
| Resolution: | 80*160 |
| Interface: | IPS |
| Viewing Direction: | ALL o’clock |

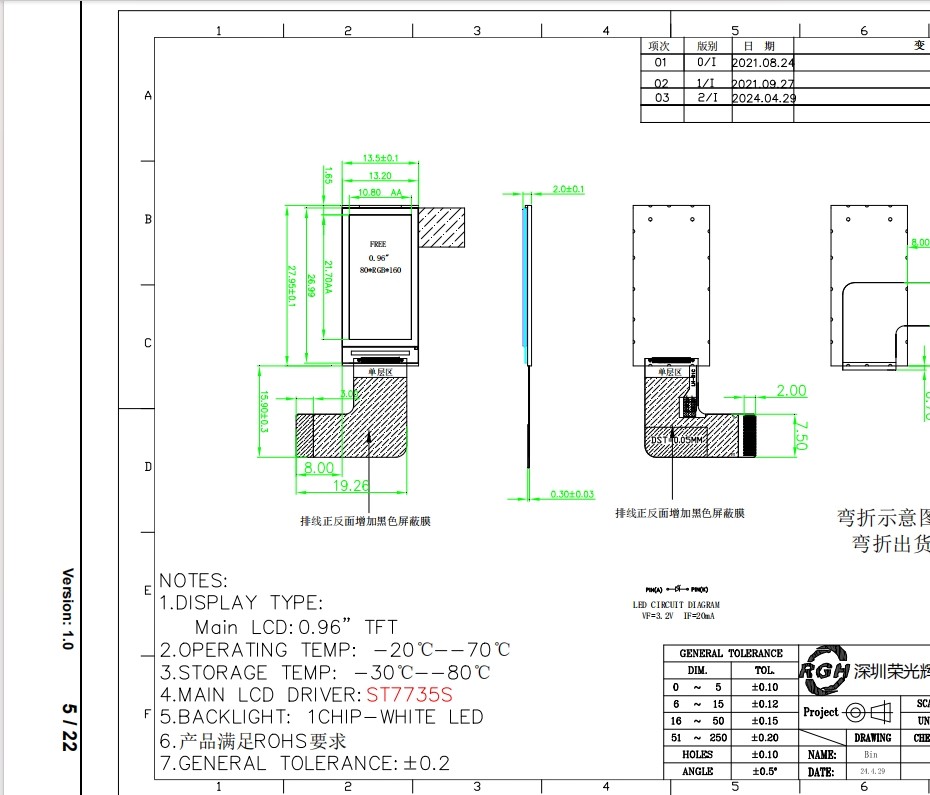

| LCM Outline Dimension: | 13.50 (W) X27.95(H) X2.0(T) mm |
| Active area: | 10.80(W) X21.70 (H) mm |
| Operating temperature: | -20℃~70℃ |
| Storage temperature: | -30℃~80℃ |
| Driving IC: | ST7735S |
| Response time: | 35ms |
| Contrast ratio: | 500:1 |
| Luminance: | 550cd/m2 |
| Power Consumption: | 70MW |
| Company Info. |
| Rongguang Hui Optoelectronics Science and Technology |
| Verified Supplier |
| View Contact Details |
| Product List |

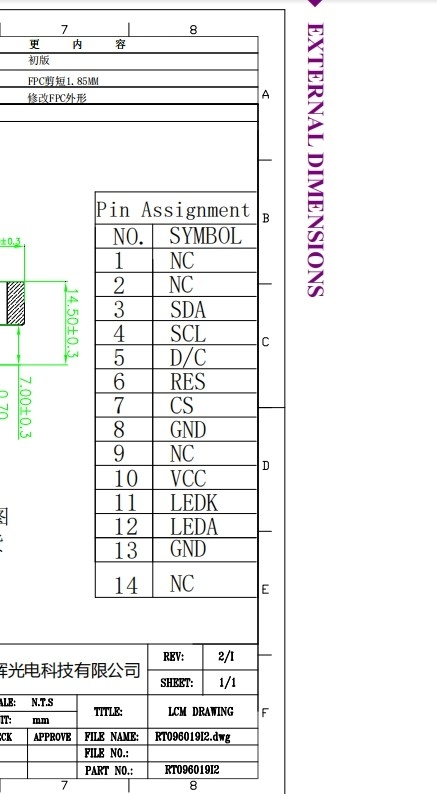

| NO. | Symbol | Level | Function |
| 1 | NC | NO | |
| 2 | NC | NO | |
| 3 | SDA | SPl interface input/outout pin The data is latched on the rising edge of the SCL signal. | |
| 4 | SCL | This pin is wsed to be serial interface clock. | |
| 5 | D/C | Disoklay data/command selection pin in 4-line serial interface. | |
| 6 | RESET | his signal will reset the device and it must be applied to properly initalize the chip selection pin:Low enable,low. | |
| 7 | CS | Chip sdlection pin Low enable High disable. | |
| 8 | GND | Ground | |
| 9 | NC | NO | |
| 10 | VCC | Power supply for Analog VCC=2.5V-3.3V | |
| 11 | LEDK | LED Cathode | |
| 12 | LEDA | LED anode | |
| 13 | GND | Ground | |
| 14 | NC | NO |
 |  |
Custom LCD FAQ
1. Are you a factory or a trading company?
we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.
2.What are our main products?
Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels
3.What kind of certification do we have?
Our factories have passed ISO9001, 14001 and other certifications.
4. What size LCD display can you provide?
0.96 inch to 21.5 inch TFT LCD display we can provide.
|
