Customized Sulfuric Acid Anodizing Production Line for Optimal Corrosion Resistance

Categories Anodizing Production Line
Brand Name: MEI-AL
Model Number: APL-900T
Place of Origin: CHINA
MOQ: 1set
Price: RMB9,000,000-12,000,000/set
Payment Terms: T/T
Supply Ability: 1set/6 months
Delivery Time: 180-200days
Packaging Details: Export Stander Packing
Output: 900Ton/month
Inspection: Provided on line
Dimension: Customized
Capacity: Customizable
Machinery Test Report: Provided
Treatment Meterial: Aluminium profiles
Chiller: 500,000 kilocalorie
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized Sulfuric Acid Anodizing Production Line for Optimal Corrosion Resistance

Anodizing Production Line with Sulfuric Acid for Improved Corrosion Resistance

一.Product overview

1.Anodizing is a surface treatment method that can improve the durability, corrosion resistance, wear resistance, and aesthetics of non-ferrous metal components (usually aluminum and its alloys).

2.Anodizing involves the formation of a thin protective oxide layer on the surface of a substrate through an electrochemical process.

3.When the oxide layer film reacts with environmental moisture, the thickness of the oxide layer will further increase. Therefore, anodized components have strong corrosion resistance and can also protect their substrates from UV radiation, thermal damage, and the effects of marine environments.

二. Design Condition

1AlloyAluminium 6061 to 6063 or others
2Anodizing film thinkness10~ 12µm m
3Average coverage area350m²/T (ton)
4Max aluminium profile length6500mm
5Extrusion ratio2.5kg/m²
6Working hour/m300d/m x 20h/d = 600h/m
7Racking systemTwo fixtures /rack
8Racking operationManual
9Equipment Usage Rate0.9
10Power supplyAC 3phase 380v 50hz
11Control PowerAC220V 50Hz
12Water supply2kg/cm²·G
13Hot steam6kg/cm²·G
14Compressor air6kg/cm²·G

三.Process Tank

1Degreasing 【Free sulfuric acid 180±30 g/l】1 Tank
2Alkaline Etching【Free alkali 40-60g/l,Al3+ 30-120g/】2 Tanks
3NeutralizationFree sulfuric acid180±20g/l】1 Tank
4Anodising 【Free sulfuric acid 140-180g/l,Al3+≤20g/l】4 Tanks
5Colouring 【stannous sulfate 3-8g/l,Free sulfuric acid 15-25g/l,PH 0.8-1.2】2 Tanks
6Medium Temperature Sealing【PH 5-6.5,Nickel ion0.8-1.3g/l,Fluorion0.3-0.7 g/l】3 Tank

四.Treatment Process:

  1. Degreasing
    (1) 6jig(rack)/ tank x 1 tank
    =6jig(rack)
    (2) treatment time: 2-5min
  2. Alkaline Etching
    (1) 6jig(rack) / tank x 2 tank
    =12jig(rack)
    (2) treatment time: 3-15min
  3. Neutralization
    (1) 6jig(rack) / tank x 1 tank
    =6jig(rack)
    (2) treatment time: 1-5min
  4. Anodizing
    (1) 2 jig(rack)/tank x 4tanks = 8jig(rack)
    (2) Current density: 130A/m²
    (3) Process time: 30min
    (4) Unprocess time: 10min
    (5) Total time 30+10=40min

(6) Average anodizing layer : 0.3*1.3*30*0.77 =10.81um

  1. Colour 1

1) Clour process: Mix Salts

2) Quantity:2 jig(rack)/tank x 1tanks = 2jig(rack)

3) Current density: 70A

4) Process time: 2-8min


6. Sealing
1) Sealing menthod: Sealing at Medium or Normal Temperature
2)
Quantity:6jig(rack)/tank x 1 tank
3) Process time 10-15min


五. Design Parameter and Setting

1. Anodizing treatment area:
1) Each anodizing process tank need 40min ,where total jig(rack)/year:

( 2 rack x 4 tank x 60min/h) ÷40min x600 hour =7200jig(rack)

2) Design 50m²/jig(rack) . Where every tank is 100m²
3)
Area treatment/year : 7200jig(rack)x 50m² /jig =360000m²


2. Anodizing treatment weight:
Monthly output : 360000m²÷350m²/T*0.9=925T≧900T


3. Power consumption:
1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

Power Rectifier : 15000A =4unit
2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

Colour Rectifier : 8000A =2unit

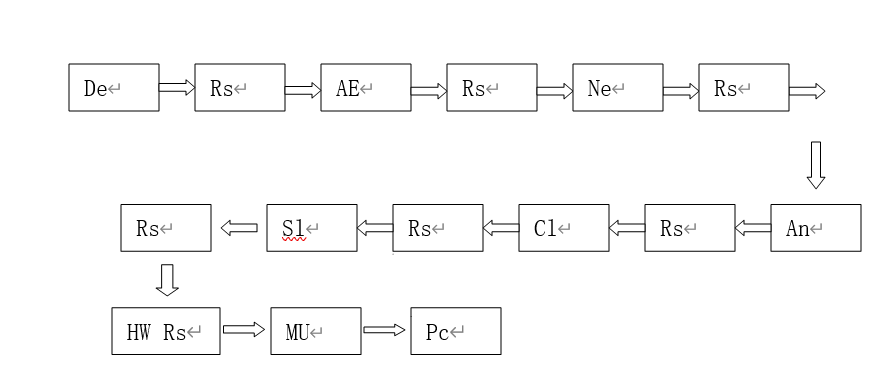

六. Process Chat

Discription for Un
1DeDegreasing
2RsRinsing
3HW RsHot Water Rinsing
4AEAlkaline Etching
5NeNeutralization
6AnAnodizing
7ClColoring
8SlSealing
9MUMaterial Unloading
10PcPacking

Transportation&Packaging
