NYWBUK IP67 Microwave Level Switch with Threaded Connection and IP67 Protection Class Customized Level Switches

NYWBUK IP67 Microwave Level Switch with Threaded Connection and IP67 Protection Class Customized Level Switches

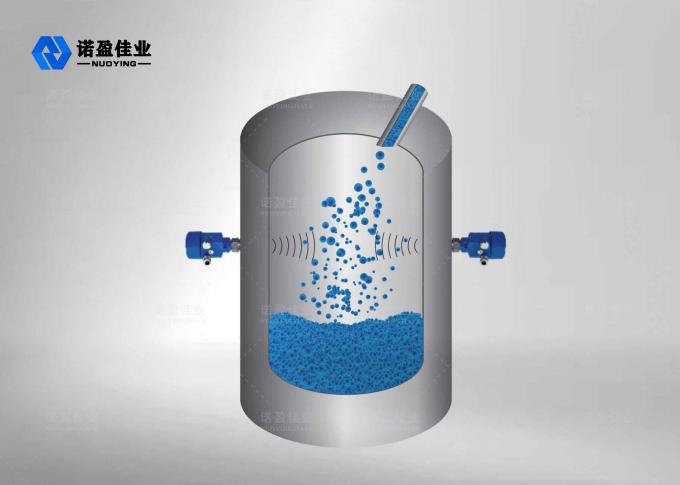

NYWBUK IP67 Microwave Level Switch Working Principle

NYBUK series microwave leve switch is a solid level switch desiened with microwave extremely narrow pulse detecton principle, which is designed by microwave pair transmission and reception. The microwave level switch is a pair of complete sets of instruments. One end is the transmitting end, which is responsible for the transmission of microwave signals; the other end is the receiving end, which is responsible for the collection and output of microwave signals. The instruments are instaled in pairs at the position to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal ; When material blocking occurs at the monitoring position, the receiving end outputs "blocking material" signal. The state of the output signal can be set to high alarm and low alarm on the spot.

NYWBUK IP67 Microwave Level Switch Design Features

1. High stability, strong anti-interference capability and intelligent adaptive power supply design.
2. Modular design concept with function indicator, which can easily and concisely realize the setting and maintenance of the instrument in the field.
3. Simple structure and easy installation.

NYWBUK IP67 Microwave Level SwitchTechnical Parameters

NYWBUK IP67 Microwave Level Switch Related Pictures

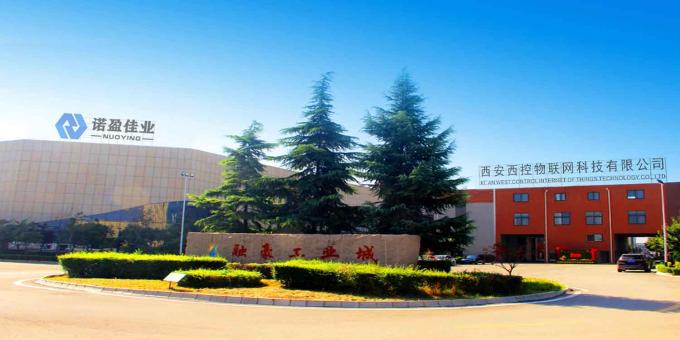

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
