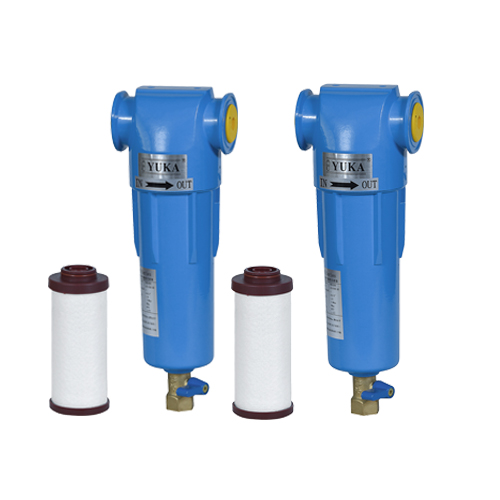

| Categories | Aluminum Compressed Air Filter |
|---|---|
| Model No.: | YF-B040 |
| Origin: | China |
| Element Serve Life: | 6000~8000 Hours |
| Trademark: | Yuka |
| HS Code: | 8421399090 |
| Clapboard: | Without Clapboard |
| Filter Number: | 1 |
| Medium Material: | Fiberglass |
| Type: | Cartridge Filter |
| Material: | Aluminum Alloy |
| Housing Serve Lige: | 15 Years |
| Filtration Performance: | From 5 μm To 0.01μm |
| Operate Temperature: | 1.5~80ºc |
| Resistance Corrosion: | Inside And Outside |
| Transport Package: | Brown Inner Box & Cardboard |
| Efficiency: | F5 |
| Filtration Grade: | Medium Filter |
| Maxi. Operate Pressure: | 1.6 Mpa |
| Belong To: | Air Compressor System |
| Color: | Light Blue |
| Connection: | Rc1" |
| Flow Rate: | 2.0 M³/Min |
| Filter Type: | Coalescing |
| Option Parts: | Connection Kit |
| Configuration: | Manual Ball Valve |
| Element Top Cap: | Diversion Fin |
| Specification: Dimension: | 96 X 79x 274mm |
| Place of Origin: | China |
| Brand Name: | Yuka |
| Price: | Negotiable |
| Packaging Details: | Box Package |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,T/T |
| MOQ: | 50pcs |
| Supply Ability: | 300,000pcs/month |
| Company Info. |
| Hongrijia Depurate Facility Science & Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
How Does a Compressed Air Filter Work?
Air compressor filter does is keep water, oil and dirt from down to your pneumatic tools, making them essential to the overall health of your air system. These kinds of dust or particles can damage or destroy your equipment if you don’t offer proper filtration. If they pass through those tools, your project will be affect in negatively, such as by destroying a paint job or contaminating foods in production facilities.
One of the benefits of Air Filters is that they are reasonable investments. What you have to keep up with wear and replace them in time, it costs far less to purchase new filters than to pay for repair costs for damaged pneumatic equipment or air compressors. You’ll receive result in positive, as keeping the air that passes through your compressor clean is critical to tool and equipment health as well as work quality.
YUKA YF-B Series Feature & Benefit
>HV fiber glass Element Material, ensure filtration performance up to ISO8573.1-2010 Standard
>Aluminium alloy die-casting filter housing, spanlife with 15 years
>Stainless Steel Filter element supports mesh to prevent the secondary pollution from flowing to the back end of the compressed air
>7 filtration grades to removel for different contaminate well
>Flow rate from 1.0 to 48m³/min,
>Maximum operating pressure: 16 bar(g)
>Maximum operating temperature: 80 °C
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
| Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR |
| Size of solid particles(ISO12500-3) | 5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
| Filtration performance of solid particles(ISO12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
| Filtration performance of oil(ISO12500-1) | 50% | 80+% | 99.9+% | 99.99+% | - | - | - |
| Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ | <0.01mg/m³ | <0.001mg/m³ | <0.004mg/m³ | - | - |
| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m3/min | scfm | W(Width) | D(Depth) | H(Height) | A | B | C(clearance for housing) | ||
| YF-B010 | RC1/2" | 16.7 | 1.0 | 35.5 | 96 | 79 | 245 | 29 | 180 | 118 |
| YF-B020 | RC3/4" | 25.0 | 1.5 | 53.0 | 96 | 79 | 245 | 29 | 180 | 118 |
| YF-B030 | RC3/4" | 30.0 | 1.8 | 63.6 | 96 | 79 | 274 | 29 | 209 | 153 |
| YF-B040 | RC1" | 33.3 | 2.0 | 71.0 | 96 | 79 | 274 | 29 | 209 | 153 |
| YF-B060 | RC1" | 60.0 | 3.6 | 127.0 | 138 | 111 | 349 | 37 | 276 | 208 |
| YF-B070 | RC1" | 83.3 | 5.0 | 177.0 | 138 | 111 | 450 | 37 | 377 | 303 |
| YF-B080 | RC1-1/2" | 125.0 | 7.5 | 265.0 | 138 | 111 | 450 | 37 | 377 | 303 |
| YF-B090 | RC2" | 166.7 | 10.0 | 353.1 | 174 | 142 | 558 | 58 | 500 | 467 |
| YF-B100 | RC2-1/2" | 216.7 | 13.0 | 459.0 | 174 | 142 | 558 | 58 | 500 | 467 |
| YF-B110 | RC2" | 283.3 | 17.0 | 600.0 | 174 | 142 | 838 | 58 | 780 | 794 |
| YF-B120 | RC2-1/2" | 316.7 | 19.0 | 671.0 | 174 | 142 | 838 | 58 | 780 | 794 |
| YF-B130 | RC3" | 416.7 | 25.0 | 883.0 | 220 | 184 | 616 | 74 | 542 | 514 |
| YF-B140 | RC4" | 466.7 | 28.0 | 989.0 | 220 | 184 | 616 | 74 | 542 | 514 |
| YF-B150 | RC3" | 683.3 | 41.0 | 1448.0 | 220 | 184 | 892 | 74 | 798 | 764 |
| YF-B160 | RC4" | 800.0 | 48.0 | 1695.0 | 220 | 184 | 892 | 74 | 798 | 764 |
| Technical requirements | Maximum operating pressure: 16 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 |
|
