XCMG wheel loader excavator similar to CAT compact front end loader 5 tons use for mining

Categories Front End Wheel Loader
Brand Name: WEA/WORLD
Model Number: W156
Place of Origin: CHINA
MOQ: one unit
Price: $36500-$41300
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 units per year
Delivery Time: 20-30 working days
Packaging Details: by container
Rated load (Kg): 5000
Operating weight(kg): 16500
Max breakout force: ≥175KN
maximum tractive force: 145KN
maximum grade ability: 30℃
maximum dump height: 3142mm
maximum dump reach: 1250mm
overall dimension (L×W×H): 8085×2965×3450mm
minimum turning radius: 6732mm
Engine Model: Shangchai C6121 engine
No. of cylinder-bore/stroke: 6-121×152mm
rated power: 162kw--2200r/min
maximum torque: 843N.m
min fuel-consume ratio: ≤215g/kw.h
gearbox mode: Power shift planetary structure
gear shift: 2 forward shift and1 reverse shift
maximum speed: 38km/h
fuel tank capacity: 292L
function of leveling automatically: yes
type specification: 23.5-25
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XCMG wheel loader excavator similar to CAT compact front end loader 5 tons use for mining

XCMG wheel loader excavator similar to CAT compact front end loader 5 tons use for mining


Specificaiton:


Performance1rated load5000kg
2overall weight16500kg
3rated bucket capacity3.0m3
4maximum tractive force145KN
5maximum breakout force≥175KN
6maximum grade ability30℃
7maximum dump height3142mm
8maximum dump reach1250mm
9overall dimension (L×W×H)8085×2965×3450mm
10minimum turning radius6732mm
Engine11modelShangchai C6121 engine
12type

lnline water cooling dry cylinder injection

13No. of cylinder-bore/stroke6-121×152mm
14rated power162kw--2200r/min
15maximum torque843N.m
16min fuel-consume ratio≤215g/kw.h

Transmission system

17torque converterSingle stage two phase four components
18gearbox modePower shift planetary structure
19gear shift

2 forward shift 1 reverse shift

20maximum speed38km/h
Drive axles21

main reducing spiral


bevel gear grade 1reduction

22decelerating mode

planetary reduction,grade 1

23wheel base (mm)3250mm
24wheel tread(mm)2250mm
25minimum ground clearance450mm

Hydraulic system

26system working pressure18MPa
27boom lifting time5.1s
28total time9.3s
29fuel tank capacity292L
30

function of leveling automatically

yes

Brake system

31service brake

air over hydraulic disc brake on 4 wheels

32parking brakeBreak air brake

Tyre

33ype specification23.5-25
34Front wheel air pressure0.4Mpa
35Rear wheel pressure

0.35Mpa

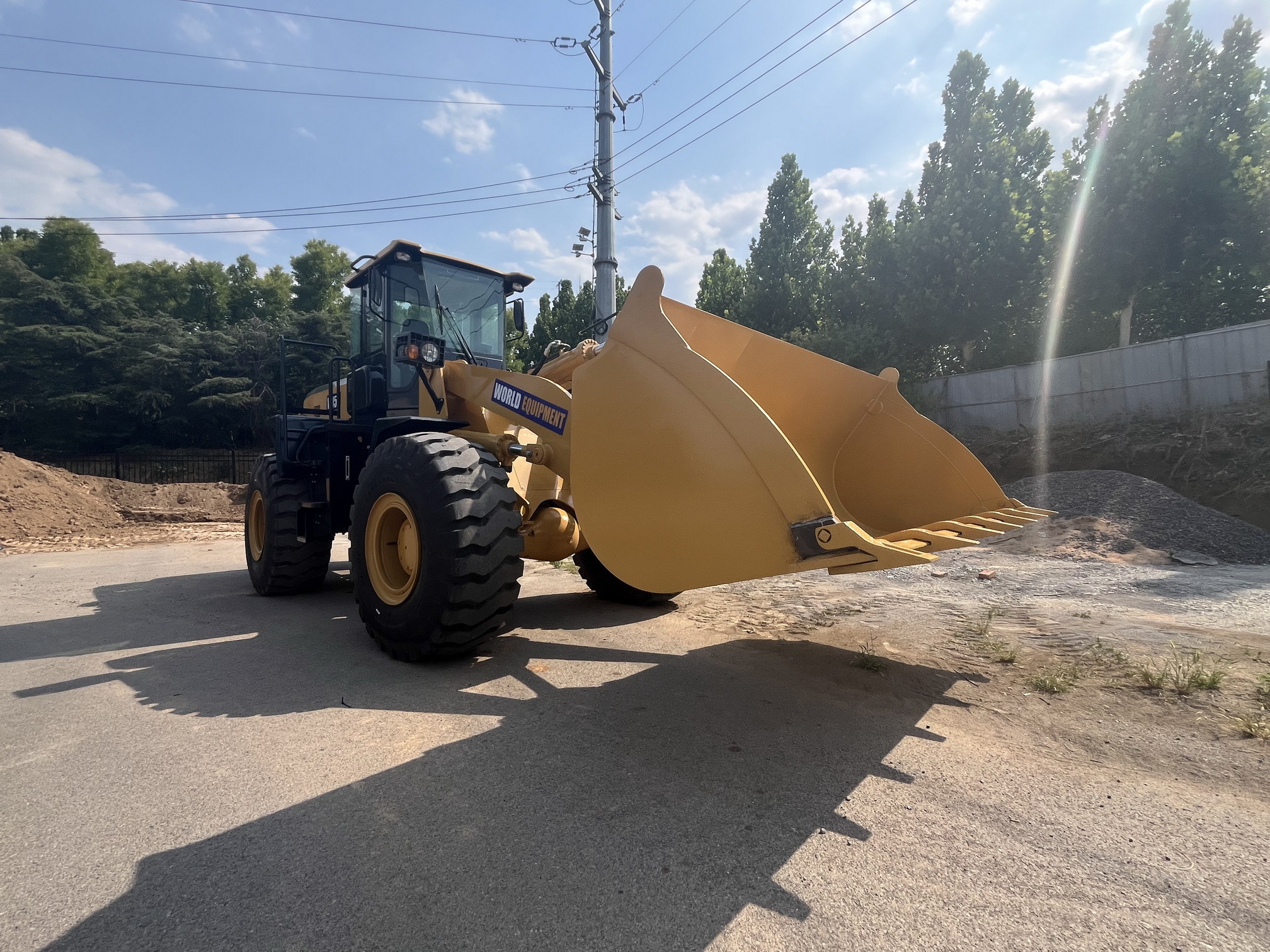

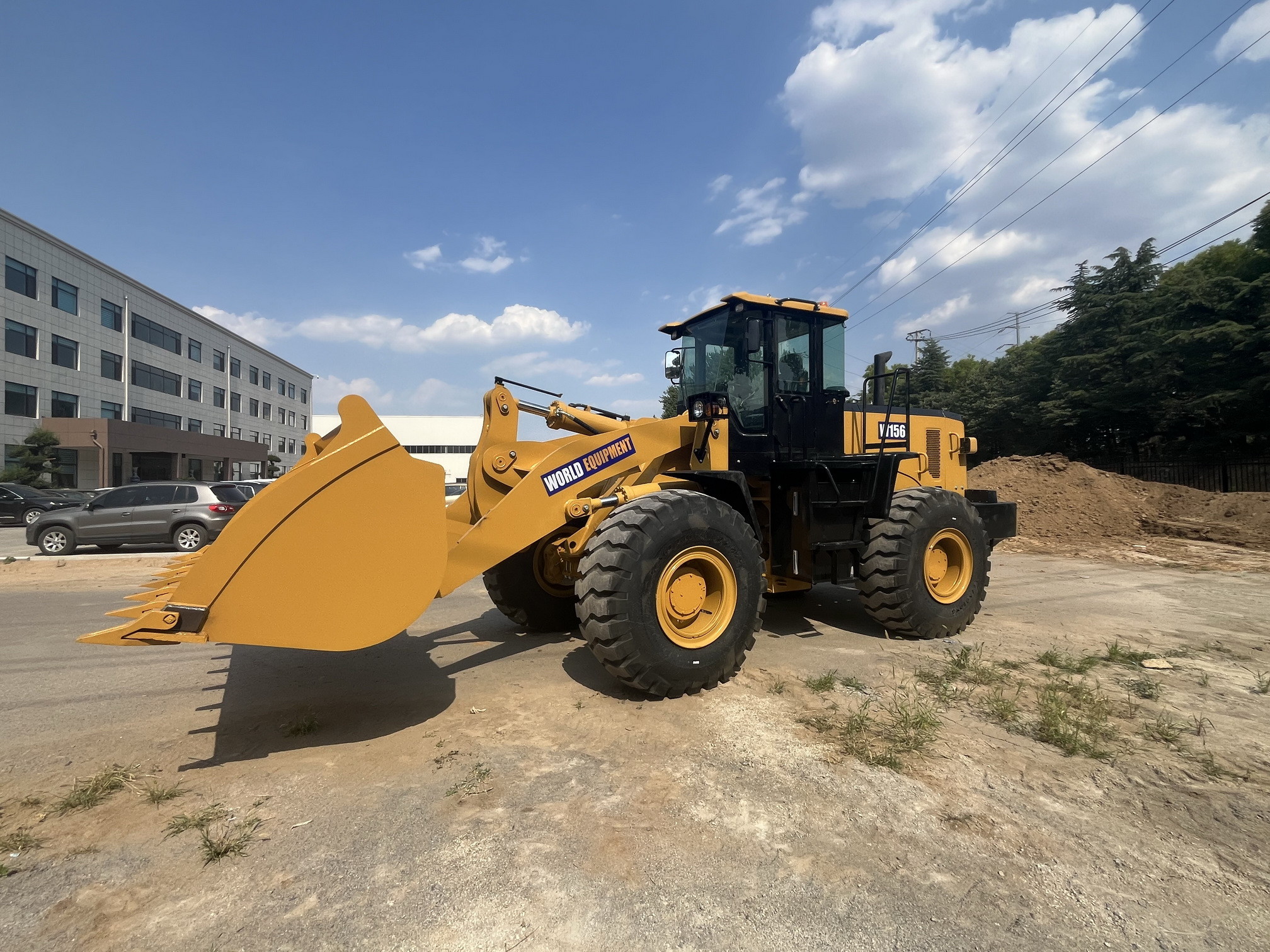

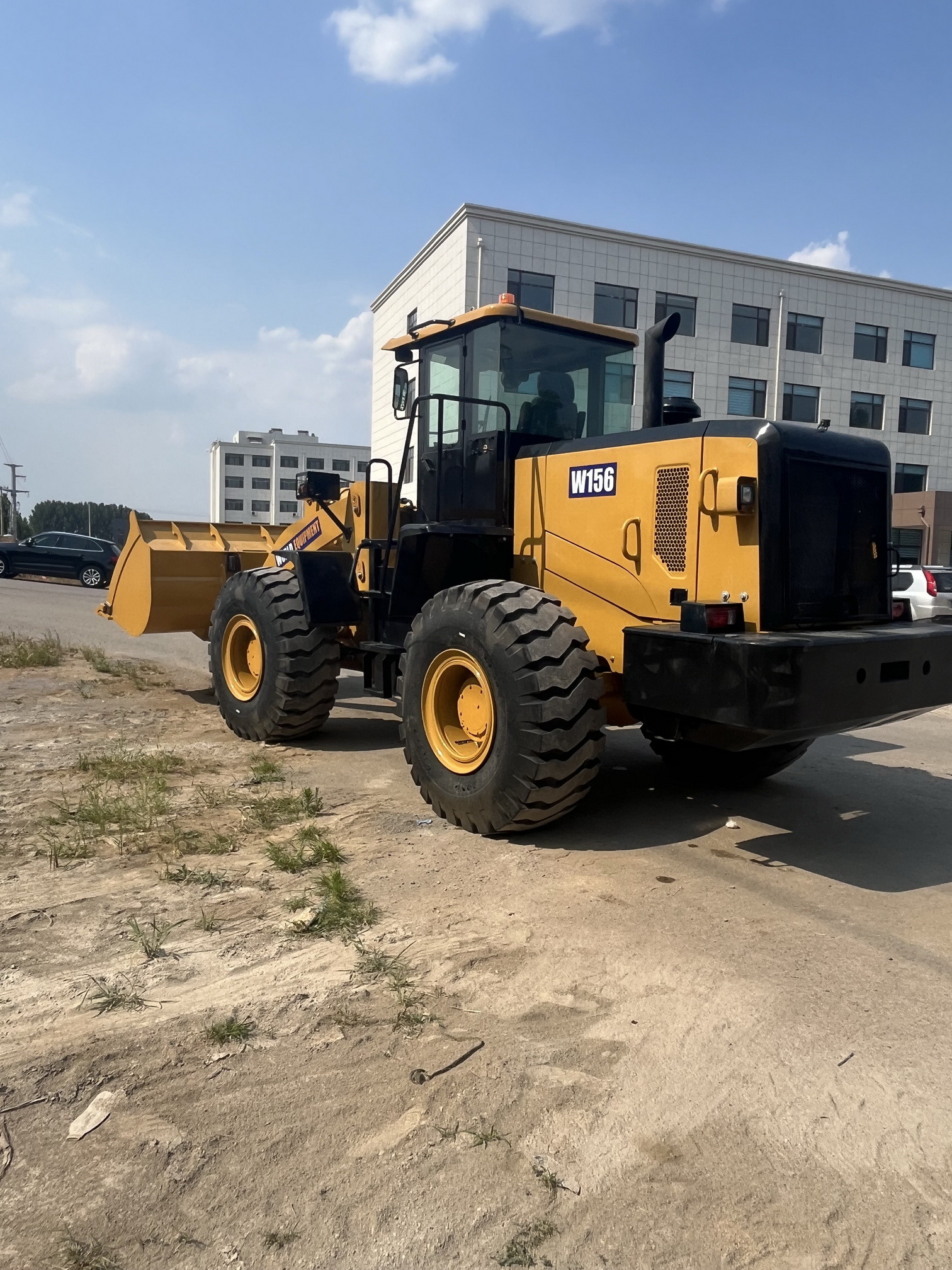

World brand W156 wheel loader is a most popular 5 ton loader in Chinese market. World began to produce wheel loaders since 2006. W156 wheel loader has very good performance and reliability after 10 years experience. Now this model is exporting to South America, South east Asia, North Africa, Middle east markets. And we also export some to USA and European markets. This model can compare to caterpilar 950H loader with more competitive price.

Easy to operate: W156 loader adopts humanized design, equipped with comfortable cab and operating platform, simple and convenient operation, the operator can easily master and operate the equipment.

Stable and reliable: The use of high-quality materials and advanced manufacturing processes to ensure the structural stability and reliability of W156 loader, can adapt to a variety of harsh working environments.

Easy maintenance: The W156 loader is easy and fast to maintain, equipped with a well-equipped maintenance system and easy-to-maintain parts, reducing maintenance time and costs.

FAQ
1. Are you manufacturer?
Yes, we are a manufacturer located in jiangsu porvince which is in the manufacturing center of construction machinery.
2. What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3. What about the delivery time?
7-30 days after receiving the deposit.
4. what about the warranty time?
12 months after shipment or 2000 working hours
5. what is the delivery method?
one unit use one pc 40HC container.
