Name: 150W DCDC Boost Inverter Converter Board 1032V 1235V Isolated Single Output 400Hz RoHS Certified
Brand: creatall
Price: 1.28 USD

Home > Generators >

150W DC-DC Boost Inverter Converter Board 10-32V 12-35V Isolated Single Output 400Hz RoHS Certified

Categories	Power Supply Module
Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	CA-150W
MOQ:	50 pieces
Price:	$1.28/pieces 50-999 pieces
Customized support:	Software reengineering
Type:	DC/DC Converters
Output Type:	standard
Output Current:	6a
Output Frequency:	standard
Size:	65.1*36.5mm
Weight:	20g
Certificate:	ce

Contact Now

Add to Cart

Company Info.

Shenzhen Creatall Electronics Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

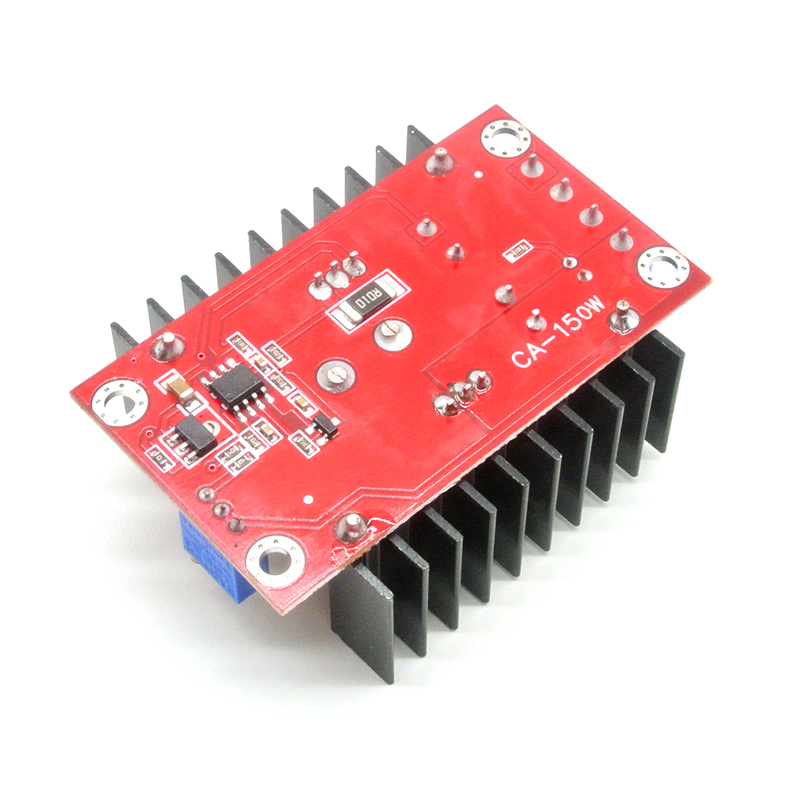

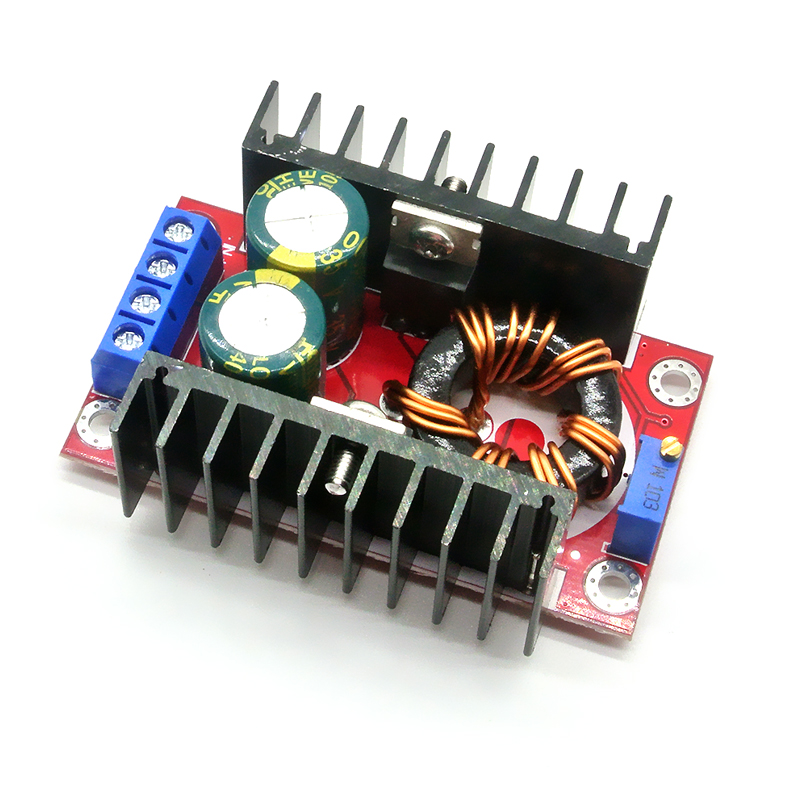

150W DC-DC Boost Inverter Converter Board 10-32V 12-35V Isolated Single Output 400Hz RoHS Certified

Products Description

Product Description
Statement: The output power of this module is not only affected by the load capacity of the module itself, but also by various factors such as the front-end power supply and the rear-end load; the following data are the results measured by professional equipment, and other factors are not considered. The power module is a kind of electronic components, please purchase it carefully,if you have no electronic professional knowledge.

Module parameters:
Module nature: non-isolated boost module
Module size: length 65MM* height 23MM* (width 56.5MM including heat sink)
Input mode: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT- output negative
Wiring mode: welding-free, terminal
Input voltage: 10-32V
Output voltage: (1) Continuously adjustable (12-35V) The default delivery voltage of our shop is 19V (2) Fixed output (any choice between 12-35V)
Output current: 6A (MAX)
Input current: 10A (MAX) (please increase heat dissipation if it exceeds 10A)
Output power: natural cooling 100W (MAX), plus fan 150W (MAX) Easily drive 65W 90W laptop including dual core Use a 12V battery with an ordinary 19V 3.42A notebook computer The temperature of the module is about 45 degrees Conversion efficiency: 94%(measured at 16V input and 19V 2.5A output) (for reference only) Working temperature: industrial grade (-40°C to +85°C) (the ambient temperature exceeds 40°C, please reduce the power to use, or add a fan) Full load temperature rise: 45℃ No-load current: 25mA typical Short circuit protection: None (please install an overcurrent protector at the input) Input reverse connection
protection: None, connect a diode in series with the input

Scope of application:
1) DIY an output adjustable car power supply, you only need to connect your 12V power supply at the input, you can adjust the output voltage (14-35V) freely and continuously, but the output voltage cannot be lower than the input voltage.
2) Universal car laptop power supply. The input is connected to your 12V power supply, and the output is adjusted to the voltage of your notebook to work.
3) Boost charger, you can use a 12V power supply to charge a battery higher than 12V, such as a 24V battery. 4) To supply power to your electronic equipment, as long as the voltage is adjusted to the voltage you need and the current does not exceed the rated current, it can work normally.
5) The front-end power supply of the system. When you are working on a project, the input is 10-18V, and your system board needs a power supply of about 24V and its power is very large. The power of ordinary DC-DC modules is too small , Then you choose our module will be your good choice, you can work directly on the machine without debugging, easy to achieve high-efficiency and high-power boost.

Contact us
Wechat:	zq13827494627	WhatsApp:	+86-13827494627
Skype:	alvacheng1	E-mail:	leo@creatall.com

Company Profile

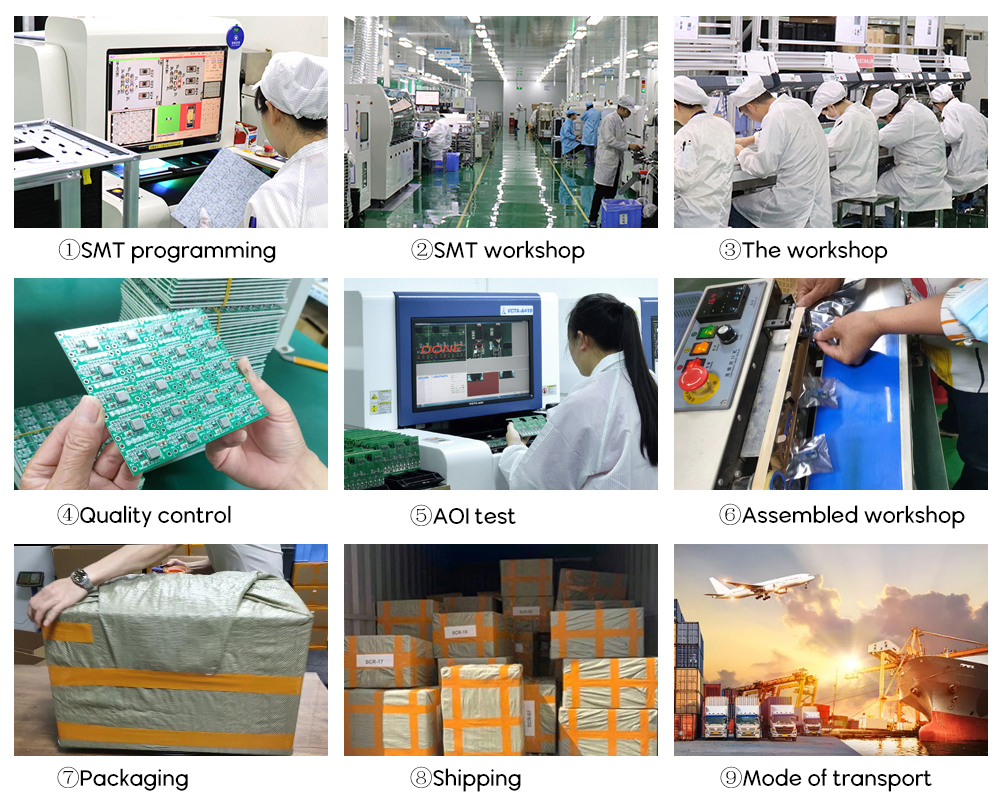

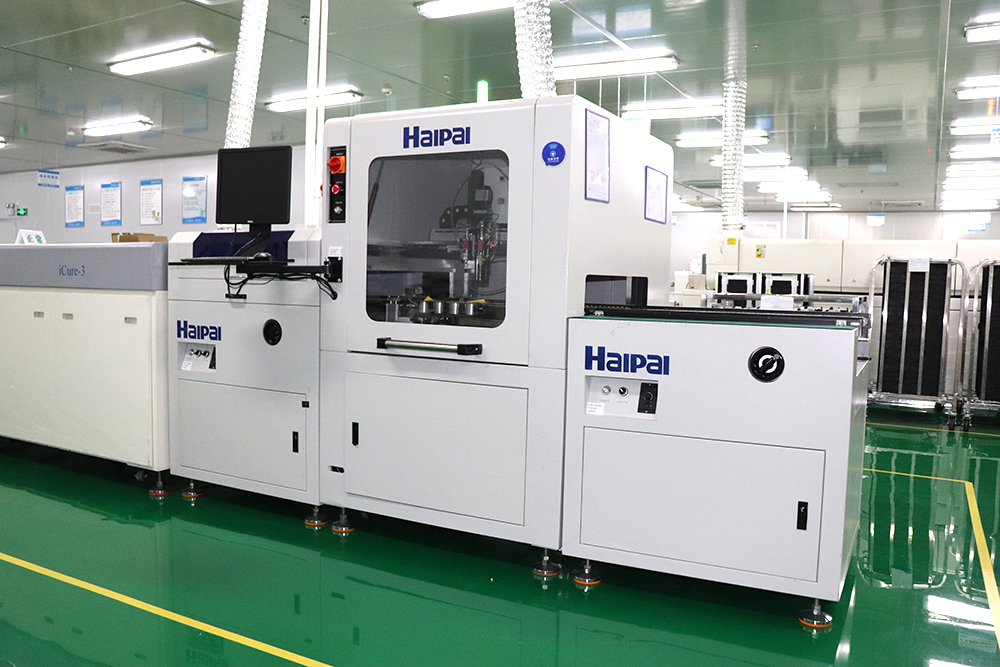

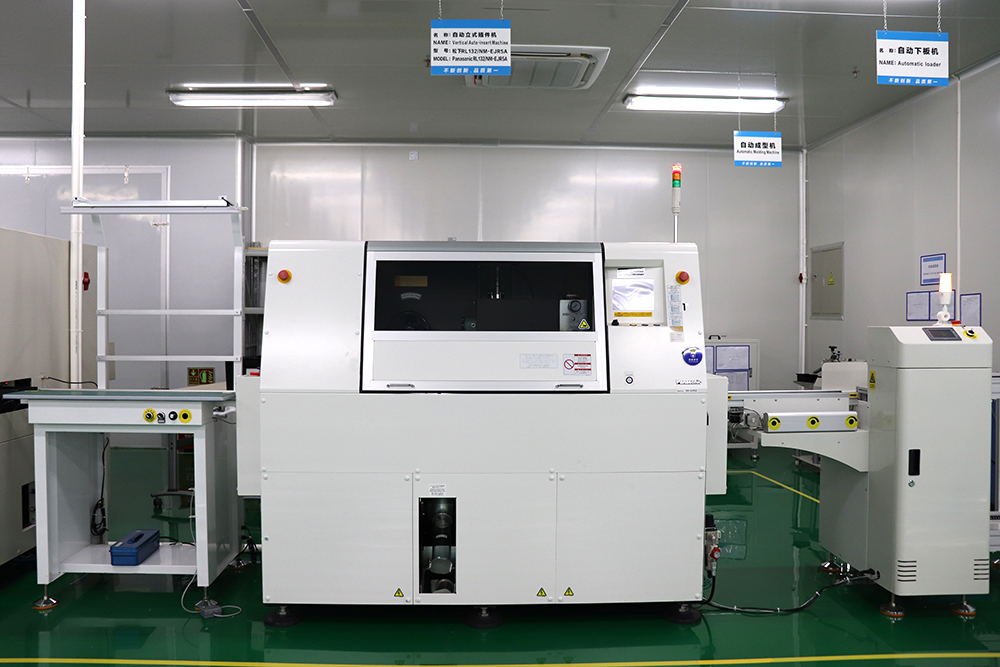

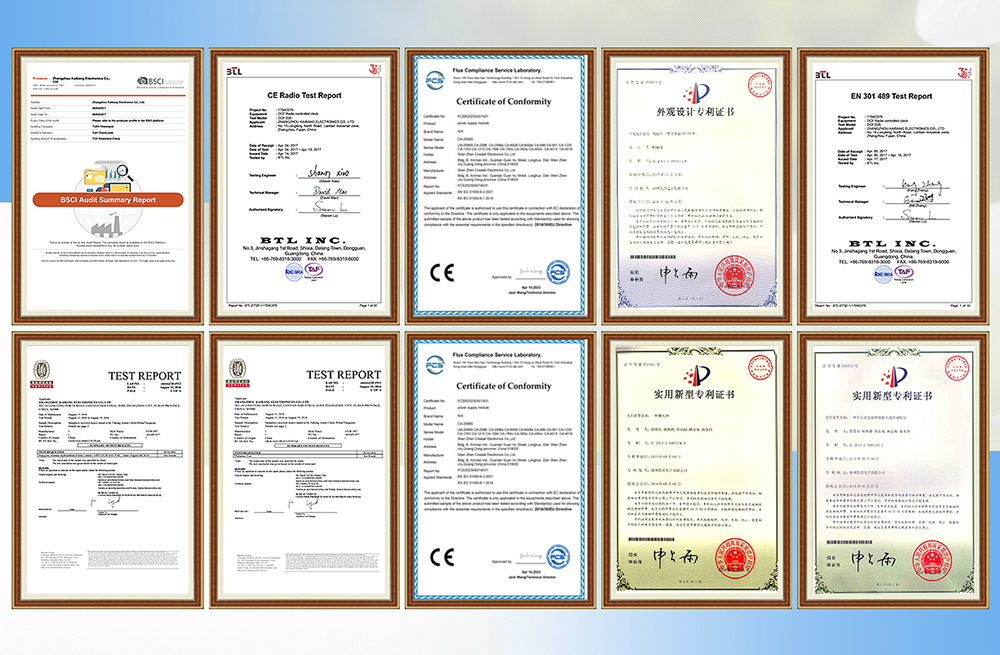

Certificates & Production Processes

Packing & Delivery

1. Normal packaging.

2. Export carton.

3. Custom packing.

4. All orders are will be shipped within 3-25 days after customers confirmed payment.

Payment&Shipping

PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.

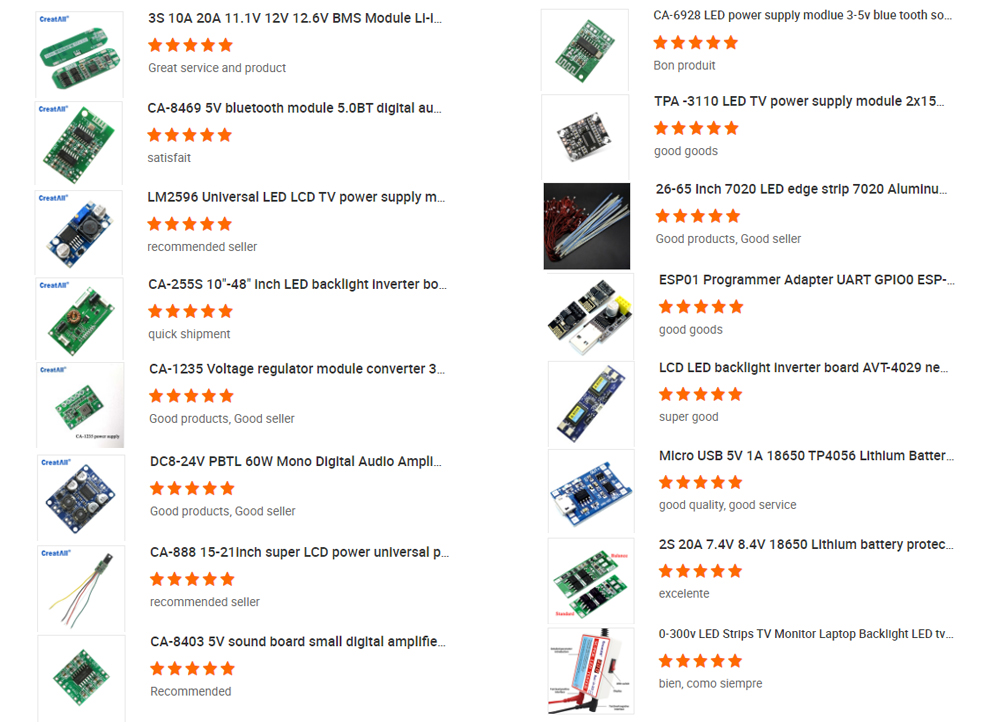

Customer Reviews
