Categories | Off Grid Hybrid Solar Inverter |
---|---|
Brand Name: | 1stess |
Model Number: | M (PV60-500VDC) 6200-48PL |
Certification: | CE, IEC |
Place of Origin: | China |
MOQ: | 1 piece |
Price: | To be negotiated |
Payment Terms: | L/C, T/T |
Supply Ability: | 2000 pieces per month |
Delivery Time: | 30 days |
Packaging Details: | carton box |
Charging Mode: | MPPT |
Operating Temperature: | -10°C To 55°C |
Inverter Type: | Off Grid inverter |
Frequency: | 50Hz/60Hz |
Nominal Output Voltage: | 230VAC |
Communication Interface: | RS232+RS485 |
Acceptable Input Voltage Range: | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
Size: | 450*300*130mm |
Waveform: | Pure Sine wave |
Output Current: | 120A |
Weight: | 9.6kg |
Company Info. |
Shenzhen First Tech Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

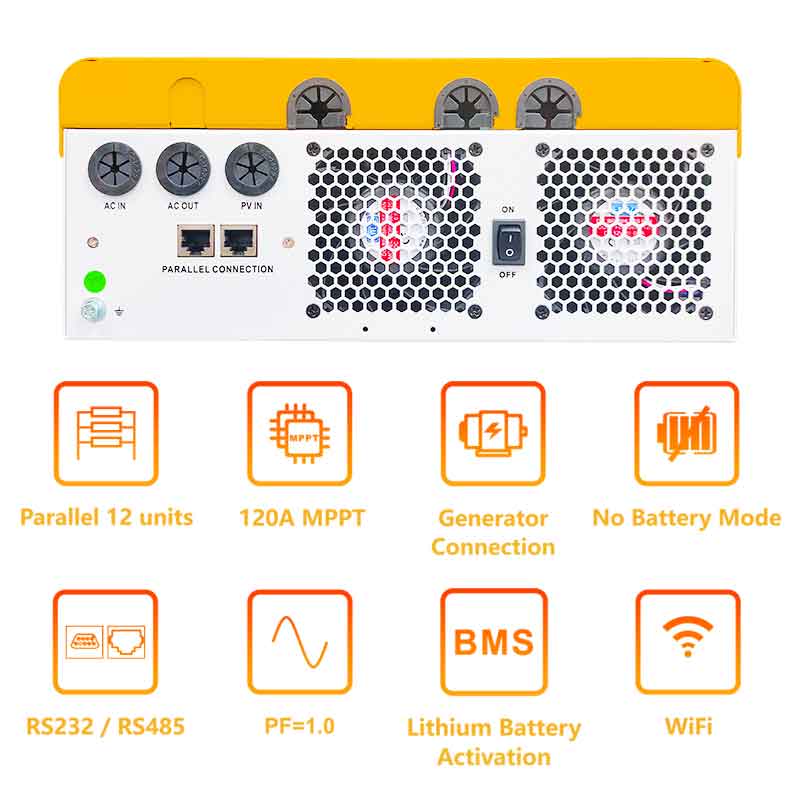

1.Compatible work with lifepo4 battery
2.Parallel operation up to 12 unitsin 1phase or 3phase
3.Direct Plug WlFl Dongle Supported
4.Pure sine wave
5.Power factor 1.0
6.PV input 500Vdc Max
7.Built-in MPPT 120A
8.Capable to work without battery
9.Detachable dust cover for harsh environment
10.WiFi remote monitoring optional
11.Support multiple output priority:UTL,SOL,SBU,SUB
12.EQ function to optimize battery performance and extend lifecycle
A hybrid inverter is an advanced power conversion device that integrates multiple energy sources, such as solar panels, batteries, and the grid, to optimize energy management. It plays a crucial role in renewable energy systems, offering several key benefits:
Multi-Source Integration:
Energy Management:
Backup Power:
Grid Support:
User-Friendly Monitoring:
Scalability:
Environmentally Friendly:
The hybrid inverter represents a significant advancement in energy management technology, enabling efficient integration of renewable energy sources and enhancing energy independence.
![]() |
