Brand Name: | Turboo |
Model Number: | B325 |
Certification: | CE ISO9001 |
Place of Origin: | Guangdong China(Mainland) |
MOQ: | 1 PC |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Delivery Time: | 7 days |
Packaging Details: | Wooden Case Package |
Supply Ability: | 1000 units per month |
Size: | 1500×100×980mm |
Infrared sensor: | 6 pairs |
MCBF: | 5,000,000 Cycles |
Pass width: | 600~900mm |
Input: | 100V~240V |
Driving voltage: | 24V |
Environment: | -25~+70℃ |
Power consumption: | 35W |
Filling Panel: | 10mm Acrylic with Led light bar |
Communication interface: | RS485, Dry Contact |
Drive Unit: | Brushless servo motor+Clutch |
Arm material: | 10mm Acrylic |
Company Info. |
Turboo Automation Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

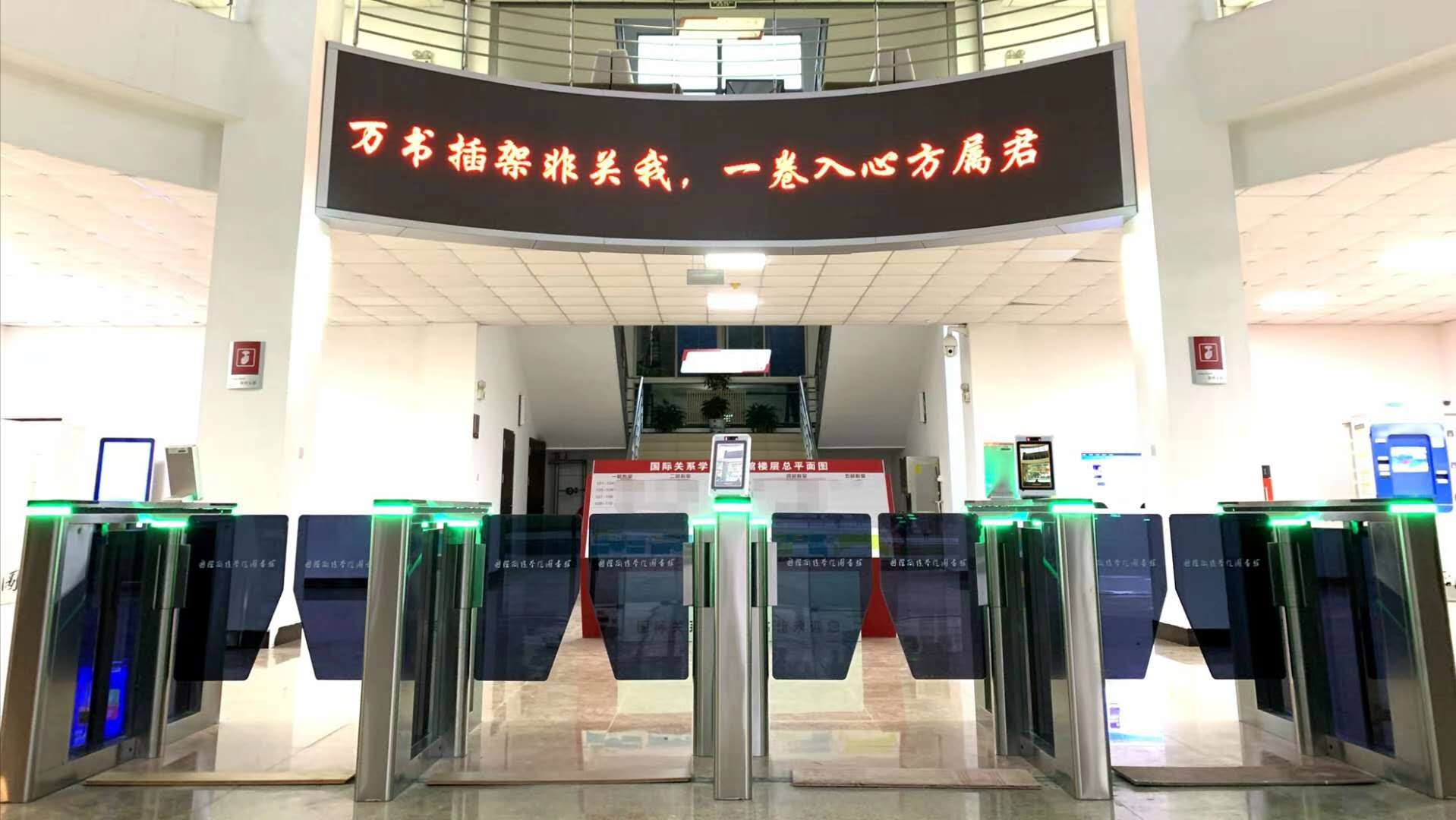

Office security entrance RFID card reader swing turnstile barrier gate
B325 are designed to enhance security and optimize manpower at your entrance points. These systems will provide you with efficient and elegant control of individual access to your premises. They are straightforward to install, easy to understand as impel to maintain. The products can be widely applied to the following usages, such as industrial enterprises, Living garden, building offices, shops, museums, security installations, prisons, nuclear power plants airport, railways, seaports, exhibition centers, ski resorts, fitness, and other fields
Model | B325 |
Dimension | 1500x100x980mm |
Operating time | 0.2s |
Passage width | 900mm |
Pass rate | 35p/m |
Power supply | 100~240v |
Working voltage | 24v |
Arm Material | 10mm Acrylic |
Frequency | 50~60hz |
MCBF | 5,000,000 Cycles |
Infrared Sensor | 6 pairs |
Drive Unit | Brushless servo motor+Clutch |
Net weight | 85KG |
Gross weight | 103KG |
Features and Benefits
* Support connection fire alarm
* Opening function in case of power off
* Service life 5-8 years
* Multiple intelligent anti-clamping
* Support sound and light alarm
* Provide maintenance guidance
Operating Modes
* 304 stainless steel body
* High durability with industrial parts
* Advanced smart control intelligent motherboard
* All running is quiet without any noise & shock
* All outlook & function support customized
Product Application
![]() |
