Automated Plastic Pelletizing Equipment PET Extrusion Line Environmental Friendly

Categories PET Pelletizing Machine
Brand Name: Yongjie
Model Number: SJSL51A
Certification: CE
Place of Origin: China
MOQ: 1sets
Price: USD35000-42000/set
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Delivery Time: 35-50 days
Packaging Details: sea worthy film ( or wooden box per requirements)
Screw design: twin screw extruder
Application: pet recycled bottle flake
Overseas engineers: Available for installation and Comissioning
Screw diameter: 50.5mm
Screw material: W6Mo5Cr4V2
Motor: 45kw
Rpm: 300/500
Capacity: 50-80kg/h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automated Plastic Pelletizing Equipment PET Extrusion Line Environmental Friendly

50-80kg/h Plastic Extruder Pet Recycling Granulating Line PET Pelletizing Machine


Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.


Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.


Quick details of the machine

Screw diameter:50.5mm

Barrel diameter:51mm

Power:45kw

Barrel&screw material:W6Mo5Cr4V2 high speed tool steel

L/D:36:1

Length of barrel:1900*10 section=1900mm

Gear box input speed:1480rpm, output 300-500rpm

Reduction ratio:3:1

Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.


Scope of supply:

No.ContentsUnitQuantityMarks
1Twin screw extrusion systemset1
1.1Feeding systemset10.75kw
1.2SJ-65Twin screw extruderset145kw, 36:1
1.3Vacuum venting systemset21.5kw
1.4Water cycling systemset10.55kw
1.5Automatic screen changerset11.5kw
2Electric cabinetset1
3Water-strand auxiliary systemset1
3.1Die headset1
3.2Water troughset14M
3.3Dryerset21.5kw
3.4Pelletizerset1100kg/h, 2.2kw
3.5Product siloset1
4Documentsset1

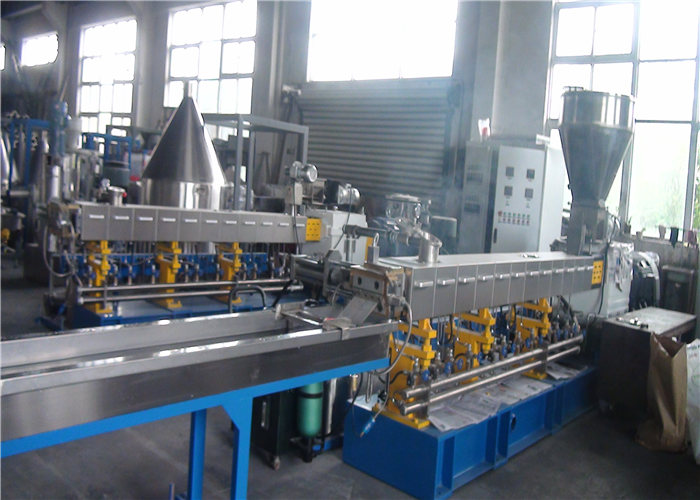

Photos of 50-80kg/h SJSL51A Pet Recycling Granulating Production Line PET Pelletizing Machine


Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
