| Categories | Cattle Yard Panels |
|---|---|
| Brand Name: | JH Livestock Handling |
| Model Number: | Cattle Yard Panels |
| Certification: | ISO9001, CE |
| Place of Origin: | Hebei,China |
| MOQ: | 50 pieces |
| Payment Terms: | T/T, , L/C, Western Union, D/P |
| Supply Ability: | 2000 pieces/month |
| Delivery Time: | 20 days |
| Packaging Details: | Steel pallets |
| Type: | Heavy, medium, light duty |
| Finish: | Galvanised, painted |
| Dimension: | height:1.8m;length:2.1m,2.4m (economical) height:1.5m,1.8m;length:2.4m,3.0m(heavy duty) |
| Features: | Avoid cattle bruising |
| Material: | hot dipped galvainzed square pipe, oval pipe and round pipe and RHS. |
| Company Info. |
| Hebei donwel metal products co., ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Portable Pasture Steel Metal Stock Feedlot Cattle Pen Fencing Panels

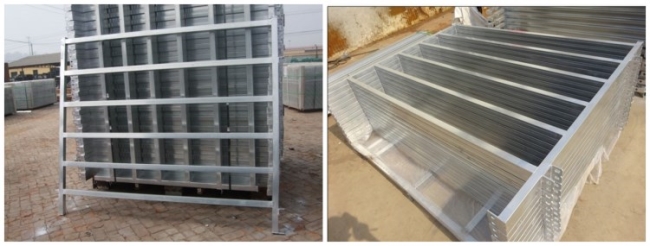

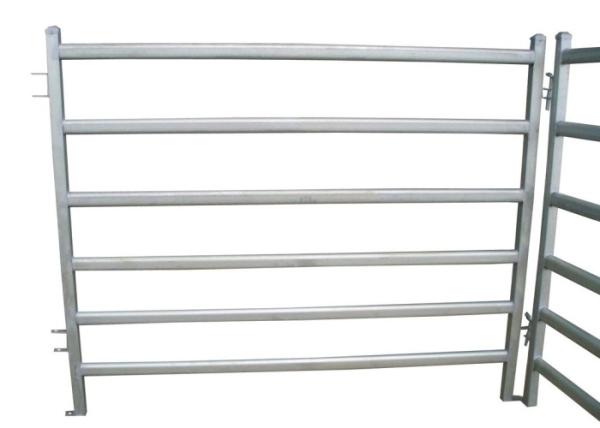

1. Features of cattle panels
1> 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
2> with welded top caps and foot plates, water and dust proof
3> welded lugs for easy connection.The lugs are welded for all four sides, very durable and safe.
4> footplate on the panel,can cement the panels on the ground by nails.
5> 2xjoining pins are supplied for each panel
6> Easily assembled & disassembled
| cattle fence panel | |
| Material | hot dipped galvainzed square pipe, oval pipe and round pipe and RHS. |
| Dimension | height:1.8m;length:2.1m,2.4m (economical) height:1.5m,1.8m;length:2.4m,3.0m(heavy duty) |
| Vertical Pipe | RHS:40 X 40 X 1.5 mm or round pipe:40 x 1.5 mm(economical) RHS:50 X 50 X 2.0 mm or round pipe:60 x 2.0 mm(heavy duty) |
| Horizobal Pipe | oval pipe:80 x 40 mm;thickness:1.6 mm (economical) oval pipe:80 x 40 x2.0 mm(heavy duty) |
| Bars/Rails | 4 bars/rails 6 bars/rails |
| Assessories | with hugs ,caps and pins |
| Advantage | fence panel is light,easy to transport and install,ventilate diaphanous; high strenth and tensil strengthgood pressure resistance,corrosion resistance and weather resistance;anti-oxidzing property |
2. The standard specification of cattle panels
(1)5 Bar 1.6m High
| Panel | 1.4m,1.8m,2.1m,2.5m,3m |
| Gate | 1.8m,2.1m,2.5m,3m,4.2m Double,2.1m Man,Swing Race ,Sliding Race |
| Bow | Race |
| Post | Adaptor |
(2) 6 Bar Cattle1.8m high
| Panel | 1.4m,1.8m,2.1m,2.5m,3m |
| Gate | 2.1m,3m,4.2m double,2.1m Man,Man,Swing Race,Sliding Race, |
| Bow | Race |
| Post | Adaptor |
(3) Portable cattle yard gate
| Gate | Frame |
| Pins | 2XJoining |
| Frame | 2mX2m |
| Height | 1.6m |
| Length | 2m,2.1m |
| Bull Rail | 6X75X40 |

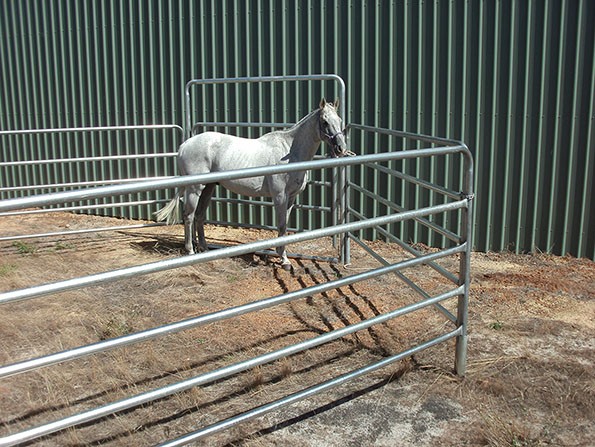

3. The standard specification of horse panels
horse panel. Designed with safety, usability and functionality in mind. This is the biggest selling horse panel in the USA and is now selling world wide as it is recognized as a stand out in horse and rider safety.
· Quadraform™ Tubing,
· Single piece vertical stays through drilled horizontal rails for extra strength,
·J-Legs increase portability and help keep panel on top of ground in wet or boggy conditions,
·Chain connectors offer increased versatility and safety by eliminating foot traps,
· Connects to any other brand of panel with no special connectors or wire needed.
(1)Horse panels
| Height | 1.8m |
| Length | 2.1m |
| Pins | 2.2m wide pin to pin,2X16mm solid pins |
| Rails | 6Oval Rails 60mmX30mm,40mmX40mm Square Rails |
| End Post | 40mmX40mm |
(2)Horse Round Yards
| Diameter | 16m,18m,20m |
| Height | 1.6m,1.8m |
| Rails | 3,5,6 |
| Bow | Strong high-bow |
| Request | Extra panels available |
|
